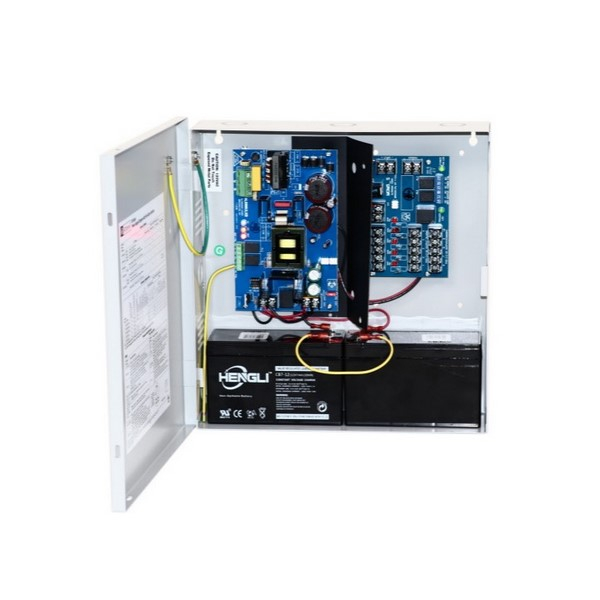

Altronix AL600ULM Access Power Distribution Module Supply/Charger

Altronix, AL600ULM, Access Power Distribution Module w/ Power Supply/Charger, 5 PTC Class 2 Outputs, 12/24VDC at 6A, FAI, 115VAC, BC300 Enclosure

Features:

• Fire Alarm Panel or Access Control System trigger inputs. [NO] or [NC] supervised trigger input and polarity reversal trigger input (4mA draw from FACP)
• Five (5) individual power-limited Class 2 outputs (auto-resettable)
• Filtered and electronically regulated outputs
• Thermal and short circuit protection with auto reset.
• Overload protection
• Output relay energizes when unit is triggered (form "C" contact rated 1A at 28VDC)
• Supervision:
  • AC Fail
  • Battery Fail and Battery Presence
• Built-in charger for sealed lead acid or gel type batteries
• Instantaneous transfer to stand-by batteries
• Power and input trigger LEDs
• DC output LED indicator
• LEDs indicate condition of power outputs
• UL Listed in the U.S. and Canada
• CSFM Approved

AL600ULM multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC, 60Hz input into five (5) individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.
