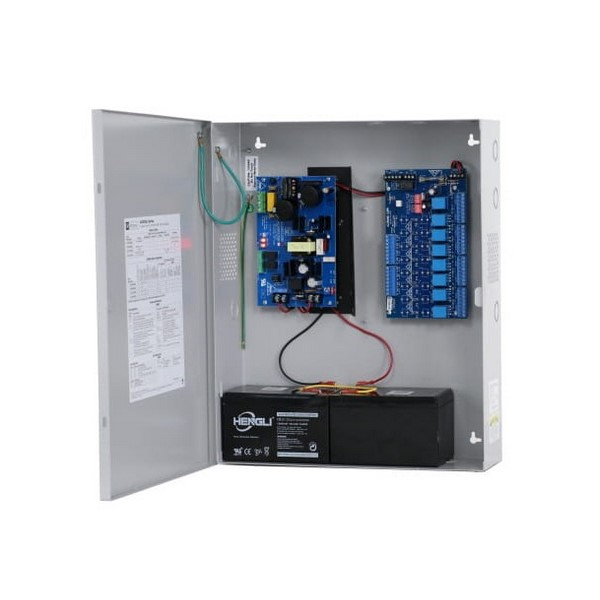

Altronix, AL400ULACMCBJ, Access Power Controller w/ Power Supply/Charger, 8 PTC Class 2 Relay Outputs, 12/24VDC at 4A, FAI, 115VAC, BC600G Enclosure
AL400ULACMCBJ Includes Only:
- Access Power Controller
- Mounting hardware
Features:
- Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs
- Class 2 Rated power-limited PTC Protected Outputs (auto-resettable)
- Eight (8) auxiliary power outputs (unswitched)
- Output PTCs are rated at 2.5A
- Filtered and electronically regulated outputs
- Supervision:
- AC Fail
- Battery Fail and Battery Presence
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
- Alarm output relay indicates that FACP input is triggered
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- UL Listed in the U.S. and Canada
Altronix AL400ULACMCBJ converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4A at 12VDC or 3A at 24VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
