Altelix, NS242424VFA1C-85-R6U, 24" x 24" x 24" 19" Wide 6U Rack Steel Weatherproof NEMA Enclosure with 120 VAC Outlets, Power Cord and 85°F Turn-On Cooling Fans
NS242424VFA1C-85-R6U Includes Only:
- Weatherproof NEMA Enclosure
- 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
- Aluminum Bottle Opener Key

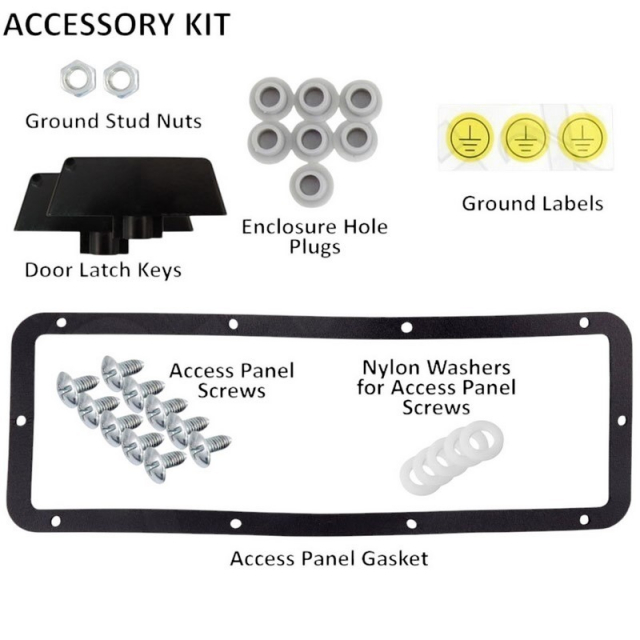

- Accessory kit
Features:
- A deeper size accommodates equipment with front-facing ports
- Dual Thermostat Controlled 85°F Turn-On Cooling Fans
- (4) Pre-Wired 120VAC Outlets with 5 Foot Power Cord
- Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
- Dual quarter-turn door latches with key
- Epoxy polyester textured light gray powder coat finish
- NEMA Type 3R, 3RX / IP24 Rated
Applications:
- 19" Rack Mountable Equipment
- Indoor / Outdoor Electrical and Electronic Equipment
- Rack Mountable Audio/Video Equipment
- Ethernet Switches
- Networking Equipment
- Industrial Controls and Components
- Security and Surveillance Systems
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
The Altelix NS242424VFA1C-85-R6U Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate protects rack-mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

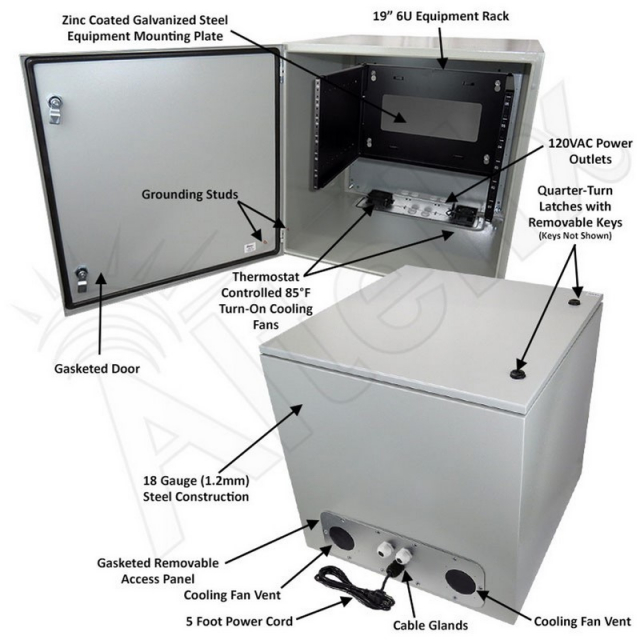

Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.
The enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Removable Power and Fan Module

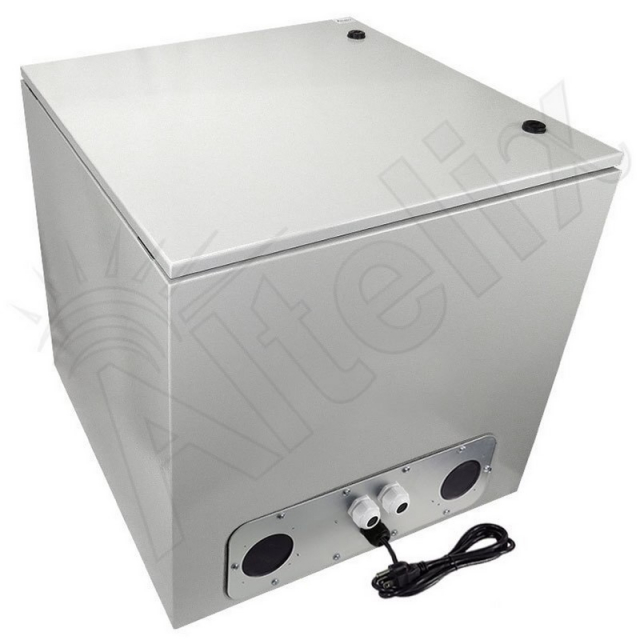

The NS242424VFA1C-85-R6U features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5-foot power cord, so no additional wiring is required.
85°F Turn-On Cooling Fans
The NS242424VFA1C-85-R6U is designed for applications that require the cooling fans to turn on at a lower temperature than standard fan-cooled Enclosure. The low-noise, high-airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them for internal equipment use.
Internal 6U 19" Equipment Rack
The NS242424VFA1C-85-R6U features a standard 19" 6U equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack-mount audio/video equipment and most other rack-mountable equipment. The rack frame mounts to an 18-gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique site requirements.
Installation Note: This 6U rack has an adjustable depth from 9.5" (241.3mm) to 15.5" (393.7mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.
Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure.
