Altelix, NFC322412VFHA1, 32" x 24" x 12" Vented Fiberglass Heated Weatherproof NEMA Enclosure with Dual Cooling Fans, 400W Heater and 120 VAC Outlets
Features:
- Dual 4" Vents with Rain Shields
- Dual Thermostat Controlled Cooling Fans
- Thermostat Controlled 400W Heating System
- Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
- Includes Steel Equipment Mounting Plate
- (4) 120VAC Outlets
- Dual Quarter-Turn Door Latches
- Bonus Aluminum Bottle Opener Key Now Included!
- (4) Mounting Feet Included
- NEMA Type 3R, 3RX / IP24 Rated
Applications:
- Outdoor WiFi Installations
- SCADA, Remote Terminal Unit
- Security and Video Surveillance NVR Systems
- Protection of Equipment from Theft or Damage
- Concealment of Equipment
- Tunnel and Mining Installations
- Railroad Facilities
- Mills & Refineries
- Cement and Chemical Plants
- Food Processing Facilities
- Warehouses and Loading Docks
- Marinas and Marine Terminals
- Golf Courses, Resort Properties and Recreational Areas
- Building Maintenance Areas
- Building Rooftop or Basement
- Parking Lots and Garages
- Weather Stations

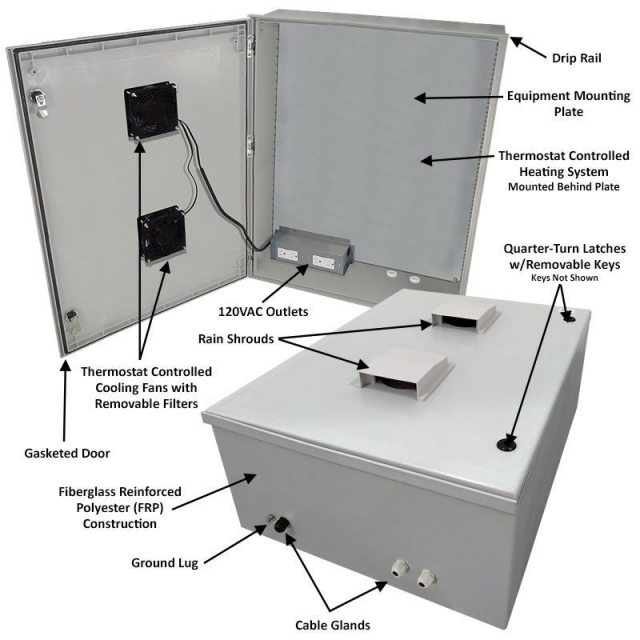

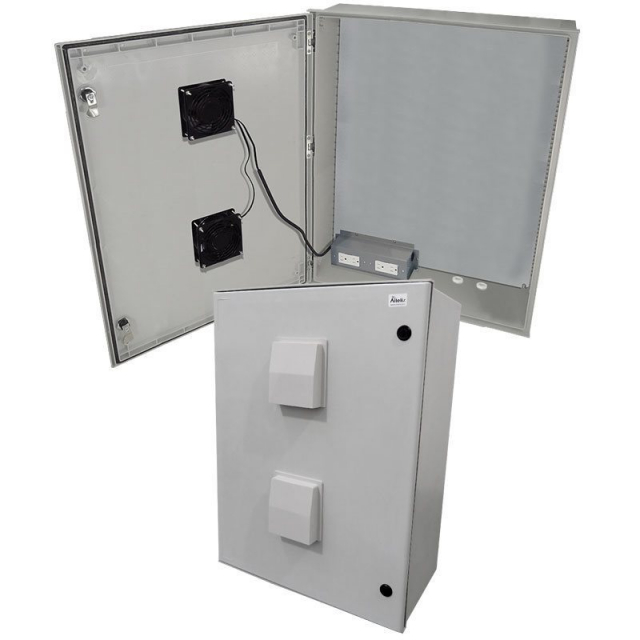

The Altelix NFC322412VFHA1 Heated and Fan Cooled Weatherproof Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Construction and Features
This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.
Power
This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired duplex 120VAC power outlets (4 outlets total). The outlet box is easily removable to facilitate wiring to an external power source.
400W Heating System
Ideal for cold environments, this model also features two 200W (400W total) thermostat controlled heaters. The heaters turn on when the internal temperature reaches 43°F (6°C) and turn off when it rises to 59°F (15°C). Both heaters are situated below the mounting plate and wired internally so they do not interfere with user installed equipment or require the use of the AC outlets.
Dual Cooling Fans Ventilation
This enclosure features dual 4" vents and dual thermostat-controlled cooling fans. The low noise, high-airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.
Galvanized Steel Equipment Plate
This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 16 Gauge (1.5mm thick) galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Cable Glands
The enclosure features unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure.
