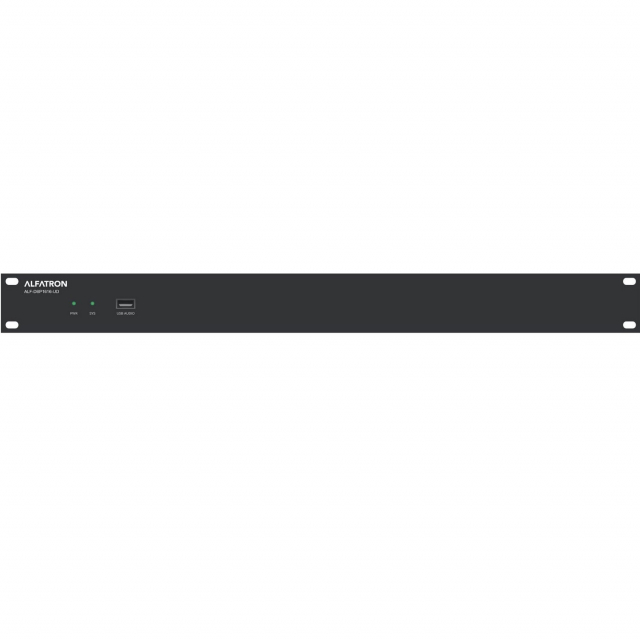

Alfatron, ALF-DSP1616-UD, 16in/16out Audio Digital Procesor with Dante Adaptor

Features:

Includes one ADI SHARC 21489 Audio Processor
16 Balanced Mic / Line Inputs and 16 Balanced Line outputs on Phoenix (PCB) connections
24Bit, 48kHz A/D and D/A convertors
1ch. USB input and output
Advanced Audio Processing incl. AEC, Auto-Mixing, Noise Suppression, Matrix
Audio Processing Modules include:
- Expanders
- Compressors
- Acoustic Gain Compensation (AGC)
- Parametric EQ
- Feedback Suppression
- Ducker
- Gate
- Ambient Noise Compensation
- Graphic EQ
- Delay
Software GUI Interface for easy setup and control of all DSP features.
RS-232, RS-485, and IP Control.
8 GPIO connections

The Alfatron ALF-DSP1616-UD Audio Digital Signal Processor (DSP) with DANTE is equipped with several core technical features to simulate the work of an audio engineer.

For more information, please see User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Technical Specifications

A/D and D/A Convertors(Sampling rate / Digitalizing bit)

48kHz / 24Bit

Input Gain

0 - 48dB in 3dB Steps

Phantom Power

48V

Frequency Response (20~20KHz)

±0.2dB

Maximum Level

+24dBu

THD + Noise

0.003% at4dBu

Dynamic Range

110 dB

Background Noise (A-weighted)

-91 dBA

Common Mode Rejection Ratio at 60Hz

80dB

Channel Isolation at1KHz

108 dB

Input Impedance (Balanced Connection)

9.4KΩ

Output Impedance (Balanced Connection)

102Ω

System Delay

<3ms

Inputs

16 Balance Line/Mic Inputs on Phoenix Connections

Outputs

16 Balance Line Outputs on Phoenix Connections
Acoustic Echo Cancellations (AEC)
Automatic Gain Control (AGC)
Noise Suppression
Auto Mixer
Matrix

Audio Processing Functions

8 Band Parametric EQ (Inputs & Outputs)
High / Low Shelf Filters
Expander
Compressor / Limiter
Feedback Suppressor
Delay

USB AUDIO

1 In - 1 Out

Control Options

IP-based PC software and host control.
Third-party control for RS-485 and RS-232.

GPIO

8-Channel Logic Output

Mechanical

Working Power

AC110~240V 5Hz-60Hz

Maximum Power Consumption

<40W

Rack Space Required

Dimensions (Width x Depth x Height)

482 x 260 x 45mm

Shipping Weight

3KG

Notes
