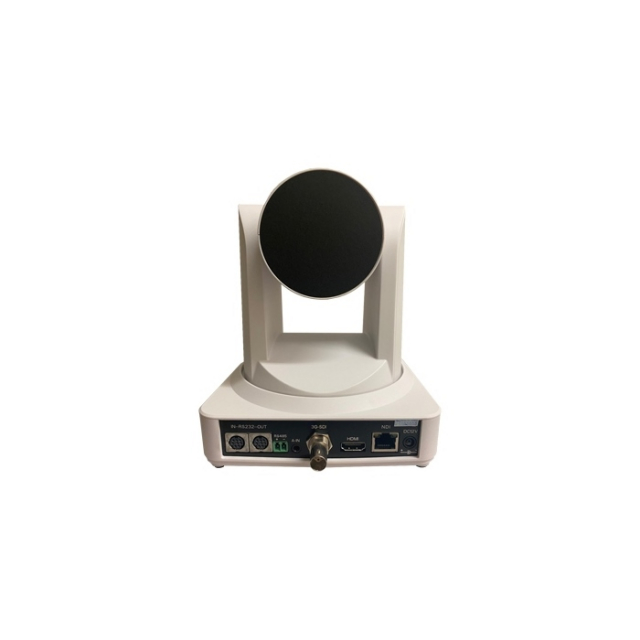

Alfatron, ALF-20X-NDIC, NDI PTZ Camera with 20X Optical Zoom. SDI and HDMI outputs, Black

Features:

1080P video with a Frame rate up to 60fps
20x Zoom Lens which gives you a clear and fluent image
Leading Auto Focus Technology
Low Noise and High SNR
Quiet PTZ
255 Presets
Supports Multiple Network Protocol - ONVIF, RTSP and RTMP
Control Protocols - VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
Wide Application - Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation, and Emergency command systems
SDI, HDMI, RS232, Network, NDI Connectivity with audio input
PC control using Sony Visca, Pelco D/P commands
Powered by 12V DC Power Adaptor or POE* (*All NDIC Cameras supplied after 25th September 2020 will have POE)
Shipped with a Ceiling or Wall mount bracket

The ALF-20X-NDICW is an HD PTZ 1080p equipped camera with a 20x Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms, houses of worship, and conference venues.

The ALF-20X-NDICW is compatible with video meeting software, such as Teams and Zoom. The 1080P HD camera is equipped for a high-quality video stream and high definition real-time synchronization.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Optical Zoom	20X f=5.5~110mm
Sensor	1/2.8-inch-high quality HD CMOS sensor
Effective Pixels	16: 9, 2.07 megapixel
Video Format	HDMI/SDI video format1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
View Angle	3.3 deg(tele) 54.7 deg(wide)
AV	F1.6 - F3.5
Digital Zoom	10X
Minimum Illumination	0.1Lux
DNR	2D & 3D DNR
White Balance	Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus	Auto/Manual/One key focus
Aperture/Electronic Shutter	Auto/Manual
BLC	ON/OFF
WDR	OFF/ Dynamic level adjustment
Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR	>55dB
Input/Output Interface
Video Interfaces	SDI, HDMI, LAN (NDI), RS232 (In & Out), RS485, A-IN
Video output interface	HDMI, SDI, LAN,
Video Compression	H.264, H.265, Dual stream output
Control Protocol	VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps
Audio Input Interface	A-IN: Double track 3.5mm linear input;
Audio Compression	AAC/MP3/G.711A Audio compression
HD IP Interface	100M IP Port(10/100BASE-TX); Support VISCA protocol control through IP port. Port : 1259, POE
Network Protocol	RTSP, RTMP, ONVIF, GB/T28181, NDI
Power Interface	HEC3800 Outlet (DC12V), POE
Supply Adapter	AC110V-AC220V to DC12V/1.5A
Input Voltage	DC12V +/-10%
Input current	1A (Max)
Consumption	12W (Max)
Pan/Tilt Rotation	+/-170 deg, -30 deg~+90 deg
Pan Control Speed	0.1 -60 deg/sec
Tilt Control Speed	0.1-30 deg/sec
Preset Speed	Pan: 60 deg/sec, Tilt: 30 deg/sec
Preset Number	255 presets (10 presets by the remote controller)
Storage temperature	-10 deg~+60 deg
Storage humidity	20%~95%
Working temperature	-10 deg~+50 deg
Working humidity	20%~80%
Dimension	150mmX150mmX167.5mm
Weight	1.4KG
Remote Operation (IP)	Remote Upgrade, Reboot and Reset

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Optical Zoom	20X f=5.5~110mm
Sensor	1/2.8-inch-high quality HD CMOS sensor
Effective Pixels	16: 9, 2.07 megapixel
Video Format	HDMI/SDI video format1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
View Angle	3.3 deg(tele) 54.7 deg(wide)
AV	F1.6 - F3.5
Digital Zoom	10X
Minimum Illumination	0.1Lux
DNR	2D & 3D DNR
White Balance	Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus	Auto/Manual/One key focus
Aperture/Electronic Shutter	Auto/Manual
BLC	ON/OFF
WDR	OFF/ Dynamic level adjustment
Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR	>55dB
Input/Output Interface
Video Interfaces	SDI, HDMI, LAN (NDI), RS232 (In & Out), RS485, A-IN
Video output interface	HDMI, SDI, LAN,
Video Compression	H.264, H.265, Dual stream output
Control Protocol	VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps
Audio Input Interface	A-IN: Double track 3.5mm linear input;
Audio Compression	AAC/MP3/G.711A Audio compression
HD IP Interface	100M IP Port(10/100BASE-TX); Support VISCA protocol control through IP port. Port : 1259, POE
Network Protocol	RTSP, RTMP, ONVIF, GB/T28181, NDI
Power Interface	HEC3800 Outlet (DC12V), POE
Supply Adapter	AC110V-AC220V to DC12V/1.5A
Input Voltage	DC12V +/-10%
Input current	1A (Max)
Consumption	12W (Max)
Pan/Tilt Rotation	+/-170 deg, -30 deg~+90 deg
Pan Control Speed	0.1 -60 deg/sec
Tilt Control Speed	0.1-30 deg/sec
Preset Speed	Pan: 60 deg/sec, Tilt: 30 deg/sec
Preset Number	255 presets (10 presets by the remote controller)
Storage temperature	-10 deg~+60 deg
Storage humidity	20%~95%
Working temperature	-10 deg~+50 deg
Working humidity	20%~80%
Dimension	150mmX150mmX167.5mm
Weight	1.4KG
Remote Operation (IP)	Remote Upgrade, Reboot and Reset

Note

Note: Please read description carefully. Do not base your order on the picture presented.
