Alderon A30011 Aerobic Simplex Compressor Fail Air Switch Beacon

Alderon, A30011, Aerobic Single Phase Simplex, 120VAC, 15 Amps, Type 4X, (3) Circuit Breakers, Alarm, Compressor, and Pump, Alarm Activation/Dual Beacons and Buzzers: High Level Alarm Beacon (Red) and Compressor Fail Air Switch Beacon (Amber)

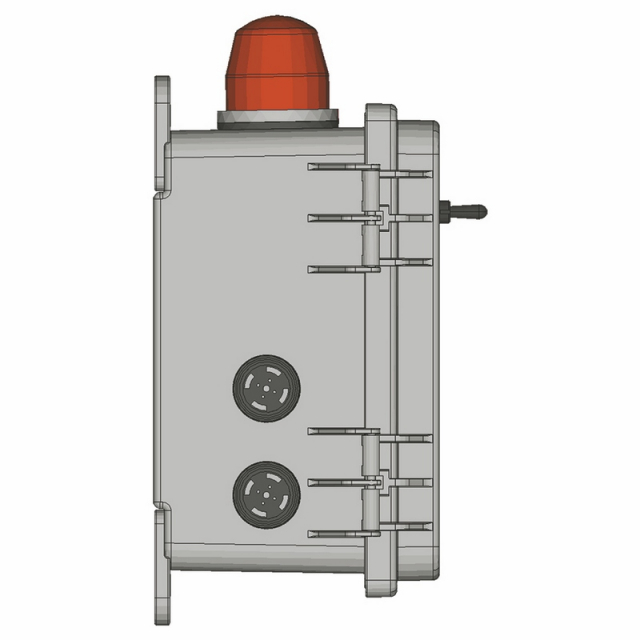

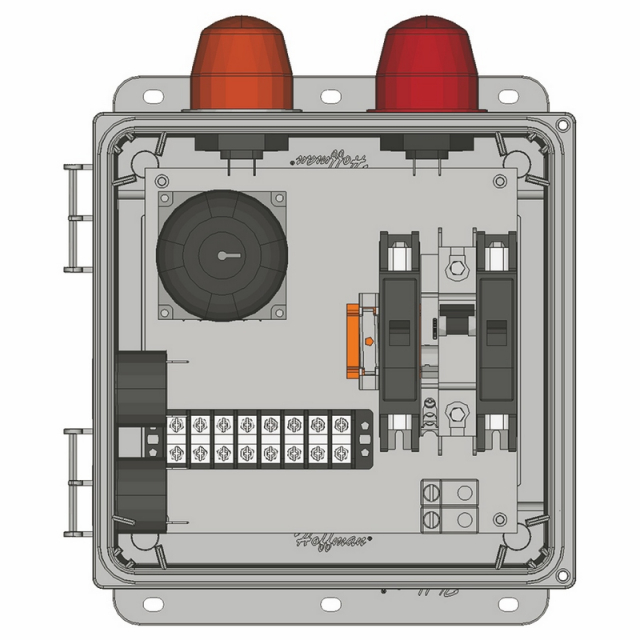

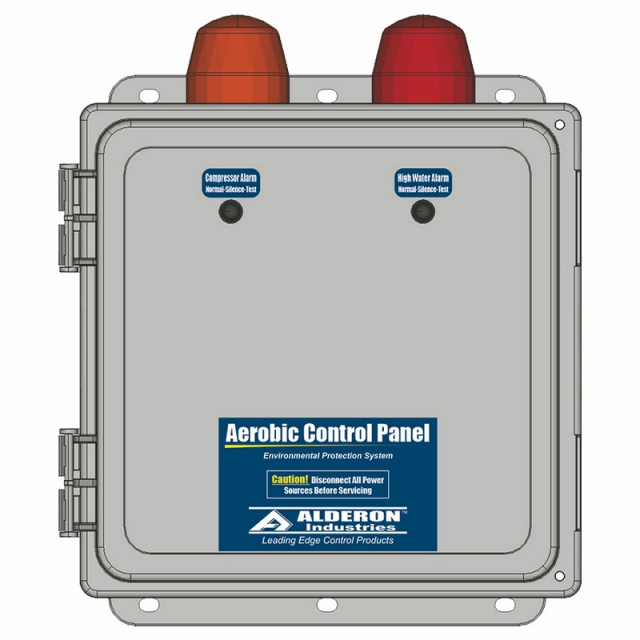

The Aerobic Environmental Single Phase Simplex control panel is used for the operation of a pump and air compressor for on-site septic systems. Comes in 120VAC, 15 Amps, and a Type 4X (outdoor) enclosure. Includes: control switches, compressor alarm (air switch). The incoming, pump, and compressor power must match system voltage with conduit connections (required) per local codes. Refer to included electrical schematic for complete wiring and voltage information.

The control panel is operated by either three (3) control switches for pump stop/pump start, high liquid level alarm, and timer override. Terminal blocks and circuit breakers are included to connect: incoming power, pump connection, compressor connection, and control switches.

As the liquid level activates the pump stop/start switch, the pump will start and continue to run until the pump stop/start switch is deactivated to complete the pump cycle. If either the high level alarm switch and/or compressor alarm are activated, the beacon(s) will illuminate and buzzer will annunciate. If the high water and/or compressor alarm normal-silence-test (NST) switches are toggled to "silence" during an alarm condition, it will silence the buzzer while the alarm beacon remains illuminated for the alarm condition silenced. The alarm condition(s) will reset when the high level alarm switch and/or compressor alarm deactivates, and the high water and/or compressor alarm NST switch(es) must be toggled to "normal" to reset the system for the next alarm cycle. Test alarm once a month to ensure system integrity, toggle the high water and compressor alarm NST switches to "test", the beacon should illuminate and buzzer should annunciate for the alarm being tested. The timer override switch is used to override the timer if pumping is required.

For more information, please see Data Sheet
