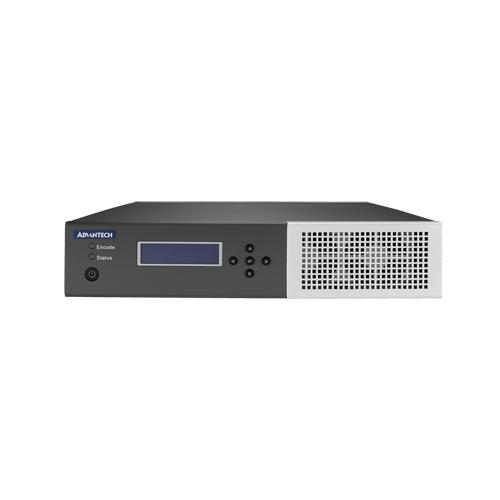

Advantech VEGA-6301E3-3EAE 4K HEVC Encoder Appliance
Brand:
Advantech
Part #:
VEGA-6301E3-3EAE
Condition:
Brand New
Brand New $8,536.00 /Each
Manufacturer warranty Description
Features:
- Compact Video Appliance with real-time HEVC 4Kp60 encoding capabilities
- 1U high & half rack mountable / standalone design allowseasy user mounting different combinations of appliance in a small space
- Range of UHD-ready video input formats such as quad 3G-SDI, high speed 12G-SDI, andHDMI 2.0
- UHD-ready Video over IP connections in addition to standard video connectivity
- HEVC Encoder supports high quality 10bit 4:2:2 modes at 4Kp60 or 4 x 1080p60
- Low power consumption
- Easy to use SDKs and remote web based configuration interface
Technical details
Main features

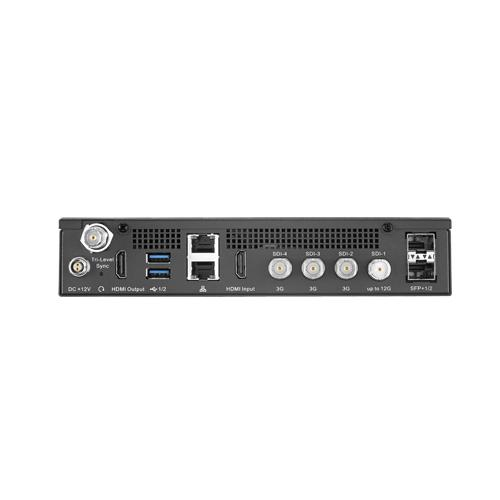

- Channels 1x 12G-SDI or 1x HDMI2.0, up to 4Kp60 10bit YUV/ 4x 3G-SDI, each up to 1080p60 10bit YUV
- Format PCM
- Operating System Linux Kernel 4.4.0 (64-bit) – Ubuntu 16.04LTS
- Power Input DC12V
- Connectivity Redundant 10GbE (SFP+ cages)
- Power Consumption 75W based on Intel Core i3 SOM
- Memory 8GB Standard
- Storage 32GB mSATA for OS, program, local data and cache
- USB Port 2x USB3.0 port
- Compression HEVC (H.265)
- SDI Video formats 4K: 3840x2160: 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p 1920x1080: 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p 1280x720: 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p
- Standards Supported ST 2022-5/6/7, ST 2059, TICO, SONY IP-Live
- System Processor (6th Gen. Intel) i3-6100E
- Local Video Output 1x HDMI 2.0 (from CPU)
- System Dimension (W) x (H) x (D): 214 x 42.8 x 289.7 mm
