ASD/QMS 250-700A Digimatic Gage Cable for Mecmesin AFG Force Gauge

Advanced Systems & Designs, 250-700A, Digimatic Gage Cable for Mecmesin AFG Advanced Force Gauge

Features:

• Using the TXD or Enter button on the Mecmesin Advanced Force Gage
• Using 300-1S in-line handswitch
• Using the Footswitch on the GageMux® or similar triggering method
• Sending a request command from the computer to the Mecmesin Advanced Force Gage
• Digimatic output FlashCable® for 2008 Mecmesin Digital Advanced Force Gage
• Sends data to GageMux® gage interface or similar devices that recognize the Digimatic Signal

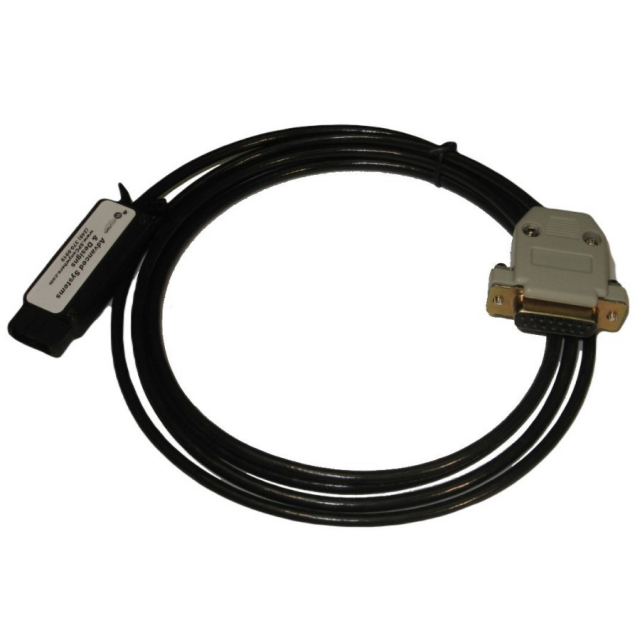

This Advanced Systems & Designs Digimatic gage interface cable connects the 15-pin D-sub male connector on the 2008 Mecmesin MK4 Advanced Force Gauge to a 10-pin Digimatic output. Designed to work with the Advanced Systems & Designs GageMux® gage interface or devices that recognize the Mitutoyo Digimatic signal. The cable does not require power from the gage.

The Mecmesin MK4 Advanced Force Gauge is used to accurately measure tensile and compressive forces. This Digimatic gage interface cable can be used with the Mecmesin Digital Advanced Force Gauge as well as the Advanced Force & Torque Indicator. Please refer to Mecmesin operating manual for more information on external communcation.
