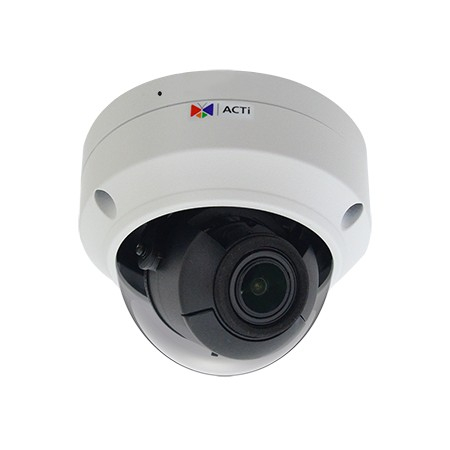

| Product Type | Zoom Dome |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.005 lux at F1.6 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 2 (850 nm) |
| IR Working Distance | 40m |
| S/N Ratio | 52 dB |
| Lens |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6 |
| Zoom Ratio | 4.3x optical |
| Zoom Application | Camera Installation |
| Focus | Auto focus |
| Horizontal Viewing Angle | 102.1° - 33° |
| Vertical Viewing Angle | 56° - 18.7° |
| Viewing Angle Adjustment | Pan: 3°-360°, Tilt: 0°-70°, Rotation: 3°-360° |
| Video |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | - 30 fps at 1920 x 1080
- 30 fps at 1280 x 720
- 30 fps at 720 x 576
- 30 fps at 704 x 288
- 30 fps at 640 x 360
- 30 fps at 352 x 288
|
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection, Object Line Crossing Detection, Intrusion Detection (Forbidden Area Detection) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event |
| Event Trigger | Video motion detection, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| Integration |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Firefox, Microsoft Edge |
| Interface |
| Local Storage | MicroSD Memory Card Slot (card not included, up to 128GB) |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 7.5 W (PoE) |
| Weight | 785g (1.73lb) |
| Dimensions | (Diameter x H): 128mm x 100mm (5.0" x 3.9") |
| Environmental Casing | Weatherproof (IP67), Vandal proof (IK10) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Approvals | CE, FCC, IP67, IK10 |
| Real-time Clock (RTC) | No |
