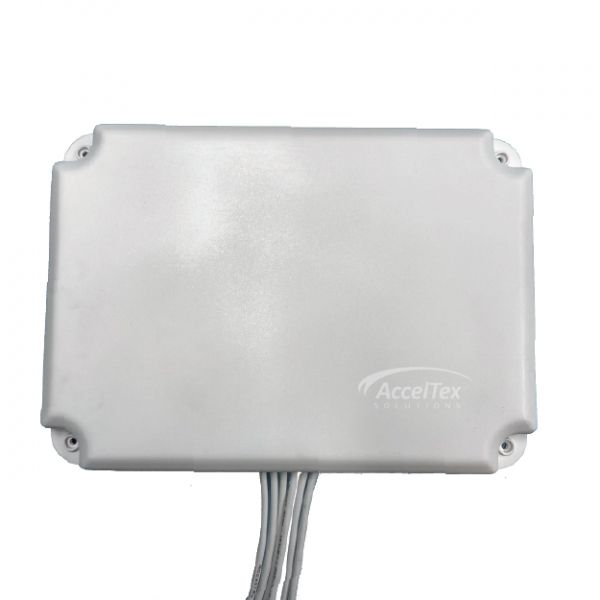

ACCELTEX, ATS-OP-245-7D-6RPSP-36, I/O Dual Pol Patch Antenna, 2.4/5 GHz, 7 dBi, 6 Element, RPSMA

Features:

The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space
Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz
This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount
This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	Patch
Installation Environment	Indoor or Outdoor
Applicable Technology	802.11ac, 802.11ax, 802.11n
Ideal Applications	Indoor Wi-Fi, Outdoor Wi-Fi
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Adtran/Bluesocket 1935, Adtran/Bluesocket 2035, Arista C-230E, Aruba/HP AP-228, Aruba/HP AP-318, Extreme AP 245X, Meru/Fortinet FAP-U323EV, Mist AP43E
WIND VELOCITY	134 mph (216 km/h)
Operating Temperature	-40 to 158 F (-40 to 70 C)
Cable Type	RG402 Plen
Frequency Range	2.4-2.485/5.15-5.85 GHz
Impedance	50 Om
Gain	7 dBi
Polarization	3-H, 3-V
Horizontal Beamwidth	66°/65°
Vertical Beamwidth	66°/62°
VSWR	≤1.5:1, Max 2.0
Isolation	30 dB
Lighting Protection	None
Cable Length	36" (910mm)
Dimensions	12.2" x 8.66"x 1.57" (310x220x40mm)
Weights	1.5 lb (0.68 kg)
Installation	Flush Mount to Wall or Articulating Mount
Radome Material	ABS
Connector	RPSMA Plug
Number Of Leads	6

Antenna Type	Patch
Installation Environment	Indoor or Outdoor
Applicable Technology	802.11ac, 802.11ax, 802.11n
Ideal Applications	Indoor Wi-Fi, Outdoor Wi-Fi
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Adtran/Bluesocket 1935, Adtran/Bluesocket 2035, Arista C-230E, Aruba/HP AP-228, Aruba/HP AP-318, Extreme AP 245X, Meru/Fortinet FAP-U323EV, Mist AP43E
WIND VELOCITY	134 mph (216 km/h)
Operating Temperature	-40 to 158 F (-40 to 70 C)
Cable Type	RG402 Plen
Frequency Range	2.4-2.485/5.15-5.85 GHz
Impedance	50 Om
Gain	7 dBi
Polarization	3-H, 3-V
Horizontal Beamwidth	66°/65°
Vertical Beamwidth	66°/62°
VSWR	≤1.5:1, Max 2.0
Isolation	30 dB
Lighting Protection	None
Cable Length	36" (910mm)
Dimensions	12.2" x 8.66"x 1.57" (310x220x40mm)
Weights	1.5 lb (0.68 kg)
Installation	Flush Mount to Wall or Articulating Mount
Radome Material	ABS
Connector	RPSMA Plug
Number Of Leads	6

Note: Please read description carefully. Do not base your order on the picture presented.
