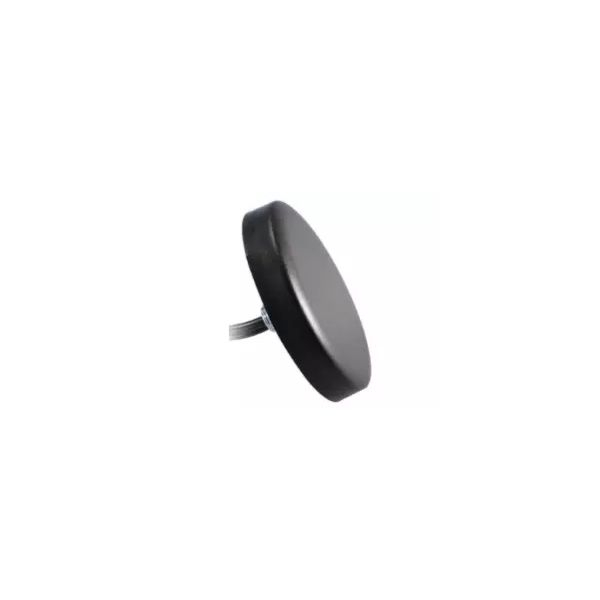

ACCELTEX, ATS-OO-2in1-282-3SP-144, I/O Omni Antenna, GPS/LTE, 3 Element, SMA, 144"

Features:

The AccelTex Solutions LTE/GPS antenna is a perfect complement to any LTE radio
This small form factor antenna comes with an integrated threaded bolt mount and is suitable for a broad range of outdoor applications

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	Omni
Installation Environment	Outdoor
Applicable Technology	802.11ac, 802.11n
Ideal Applications	High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Cradlepoint AER3100, Cradlepoint IBR1100, Cradlepoint IBR600B, Cradlepoint IBR900
Operating Temperature	-40 to 185 F (-40 to 85 C)
Cable Type	RG174
Frequency Range	GPS: 1575.42±3 MHz / LTE: 698-960/1710-2690 MHz
Cable Length	144' (3, 657.6mm)
Number Of Leads	3
Connector	3 SMA 1-GPS/2-LTE
Installation	Threaded Bolt with Nut
Weights	0.55 lb (0.25 kg)
Dimensions	3.2" DIA x 0.57" H (91.3mm DIA x 14.6mm H)
Impedance	50 ohms
VSWR	GPS: < 1.5 / LTE: ≤2
Polarization	GPS: RHCP / LTE: Linear
Gain	2 dBi

Antenna Type	Omni
Installation Environment	Outdoor
Applicable Technology	802.11ac, 802.11n
Ideal Applications	High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Cradlepoint AER3100, Cradlepoint IBR1100, Cradlepoint IBR600B, Cradlepoint IBR900
Operating Temperature	-40 to 185 F (-40 to 85 C)
Cable Type	RG174
Frequency Range	GPS: 1575.42±3 MHz / LTE: 698-960/1710-2690 MHz
Cable Length	144' (3, 657.6mm)
Number Of Leads	3
Connector	3 SMA 1-GPS/2-LTE
Installation	Threaded Bolt with Nut
Weights	0.55 lb (0.25 kg)
Dimensions	3.2" DIA x 0.57" H (91.3mm DIA x 14.6mm H)
Impedance	50 ohms
VSWR	GPS: < 1.5 / LTE: ≤2
Polarization	GPS: RHCP / LTE: Linear
Gain	2 dBi

Note: Please read description carefully. Do not base your order on the picture presented.
