Buy AccelTex ATS-01066, I/O Omni Antenna, 2.4/5/6 GHz

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

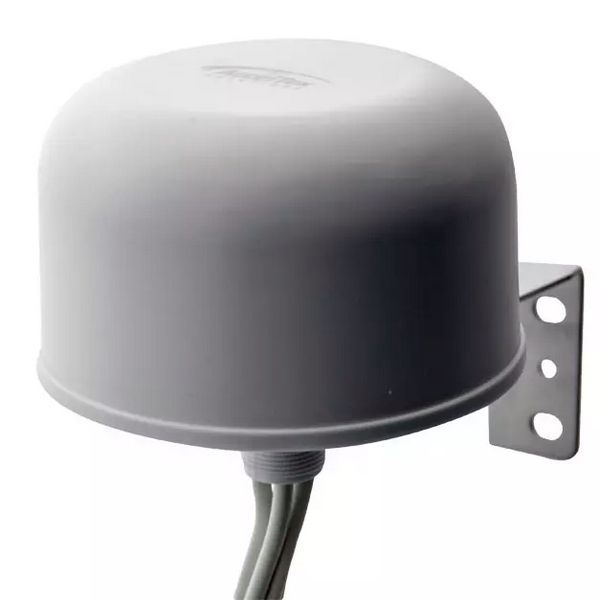

ACCELTEX, ATS-OO-2456-466-8RPSP-36, I/O Omni Antenna, 2.4/5/6 GHz, 4/6/6 dBi, 8 Element, RPSMA

Features:

The AccelTex Solutions Tri-Band indoor/outdoor omnidirectional antenna with an 8-Port, Straight DART connector is a perfect complement to an enterprise-class AP to achieve desired coverage in your indoor or outdoor space
Each antenna element is optimized for operation on 2.4, 5 and 6 GHz
This antenna comes with integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit
This highly versatile antenna is suitable for a broad range of indoor and outdoor applications
Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	Omni
Cable Length	36" (910mm)
Applicable Technology	802.11ac, 802.11ax, 802.11n
Ideal Applications	High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Aruba/HP AP-344, Extreme AP 3965e, Extreme AP510C, Extreme AP510CX, Extreme AP510e, Meru/Fortinet FAP-423E
WIND VELOCITY	130 mph (210 km/h)
Operating Temperature	-40 to 149 F (-40 to 65 C)
Installation Environment	Indoor or Outdoor
Cable Type	ATS-200
Connector	RPSMA Plug
Radome Material	ABS
Number Of Leads	8
Frequency Range	2.4-2.48/ 5.1-5.85/ 6-7.125 GHz
POLE MOUNT DIAMETER	2" (50mm)
INSTALLATION HOLE DIAMETER	1.15" (29mm)
Installation	Threaded Bolt with Nut and Wall/Pole Mount
Weights	0.4 lb (0.18 kg)
Dimensions	6.5"x 3.25" (165mmx82.5mm)
Impedance	50 Om
Isolation	> 20 dB
VSWR	2.0:1
Vertical Beamwidth	105°/75°/75°
Horizontal Beamwidth	360
Polarization	Vertical
Gain	4/6/6 dBi

Antenna Type	Omni
Cable Length	36" (910mm)
Applicable Technology	802.11ac, 802.11ax, 802.11n
Ideal Applications	High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Aruba/HP AP-344, Extreme AP 3965e, Extreme AP510C, Extreme AP510CX, Extreme AP510e, Meru/Fortinet FAP-423E
WIND VELOCITY	130 mph (210 km/h)
Operating Temperature	-40 to 149 F (-40 to 65 C)
Installation Environment	Indoor or Outdoor
Cable Type	ATS-200
Connector	RPSMA Plug
Radome Material	ABS
Number Of Leads	8
Frequency Range	2.4-2.48/ 5.1-5.85/ 6-7.125 GHz
POLE MOUNT DIAMETER	2" (50mm)
INSTALLATION HOLE DIAMETER	1.15" (29mm)
Installation	Threaded Bolt with Nut and Wall/Pole Mount
Weights	0.4 lb (0.18 kg)
Dimensions	6.5"x 3.25" (165mmx82.5mm)
Impedance	50 Om
Isolation	> 20 dB
VSWR	2.0:1
Vertical Beamwidth	105°/75°/75°
Horizontal Beamwidth	360
Polarization	Vertical
Gain	4/6/6 dBi

Note: Please read description carefully. Do not base your order on the picture presented.
