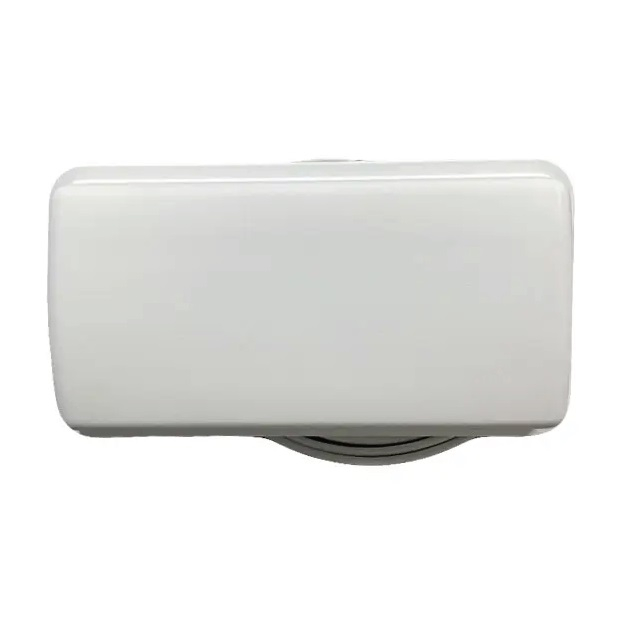

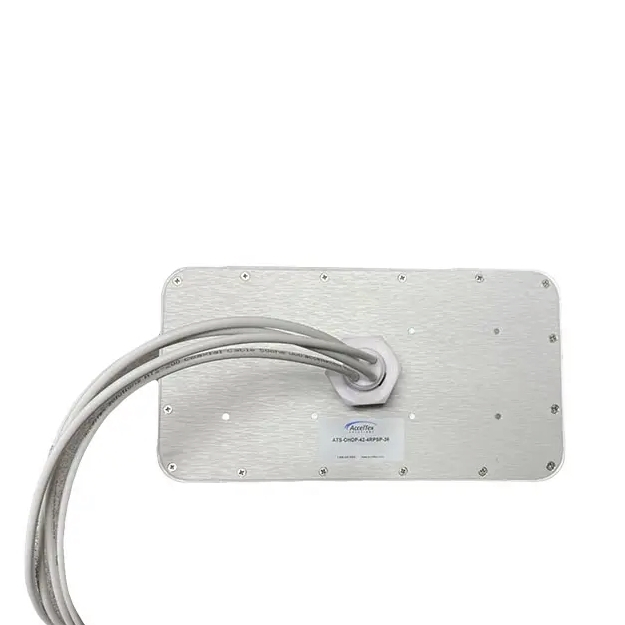

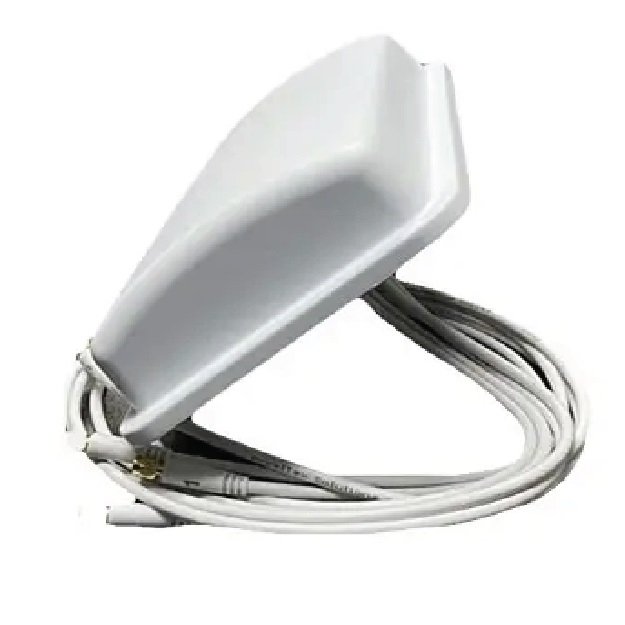

AccelTex, ATS-OHDP-245-4-4RPTP-36, Indoor/Outdoor 2.4/5 GHz 4 dBi 4 Element 90x90 Patch Antenna with RPTNC

Features:

The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.
Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz.
This antenna comes with an integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with articulating wall and pole mount kit.
This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	Patch
Frequency Range	2.4-2.5/4.9-5.85 GHz
Gain	4/4 dBi
Polarization	2 Horizontal - 2 Vertical
Horizontal Beamwidth	90°/90°
Vertical Beamwidth	90°/90°
VSWR	<2
Dimensions	11"x 5.9"x 1.97" (280x150x50mm)
Weights	2.2 lb (0.99 kg)
Installation	Threaded Center Bolt w/ Nut & Articulating Wall/Pole Mount (included)
Radome Material	ASA
Connector	RPTNC Plug
Number of Leads	4
Cable Length	36" (910mm)
Cable Type	ATS-195
Installation Environment	Indoor or Outdoor
Operating Temperature	-40 to 149°F (-40 to 65°C)
Wind Velocity	130 mph (209 km/h)
Compatible Ap	Cisco 3602e, Cisco 3702e, Cisco 3802e, Cisco Catalyst 9115e, Cisco Catalyst 9120AXE, Cisco Catalyst 9120AXP
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Ideal Applications	Indoor Wi-Fi, Outdoor Wi-Fi
Applicable Technology	802.11ac, 802.11ax, 802.11n

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Antenna Type	Patch
Frequency Range	2.4-2.5/4.9-5.85 GHz
Gain	4/4 dBi
Polarization	2 Horizontal - 2 Vertical
Horizontal Beamwidth	90°/90°
Vertical Beamwidth	90°/90°
VSWR	<2
Dimensions	11"x 5.9"x 1.97" (280x150x50mm)
Weights	2.2 lb (0.99 kg)
Installation	Threaded Center Bolt w/ Nut & Articulating Wall/Pole Mount (included)
Radome Material	ASA
Connector	RPTNC Plug
Number of Leads	4
Cable Length	36" (910mm)
Cable Type	ATS-195
Installation Environment	Indoor or Outdoor
Operating Temperature	-40 to 149°F (-40 to 65°C)
Wind Velocity	130 mph (209 km/h)
Compatible Ap	Cisco 3602e, Cisco 3702e, Cisco 3802e, Cisco Catalyst 9115e, Cisco Catalyst 9120AXE, Cisco Catalyst 9120AXP
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Ideal Applications	Indoor Wi-Fi, Outdoor Wi-Fi
Applicable Technology	802.11ac, 802.11ax, 802.11n
