AccelTex ATS-DRPMNT-UNIV1-STGXTD-OOOP Antenna Drop Mount

  • Brand AccelTex
  • Part # ATS-DRPMNT-UNIV1-STGXTD-OOOP
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

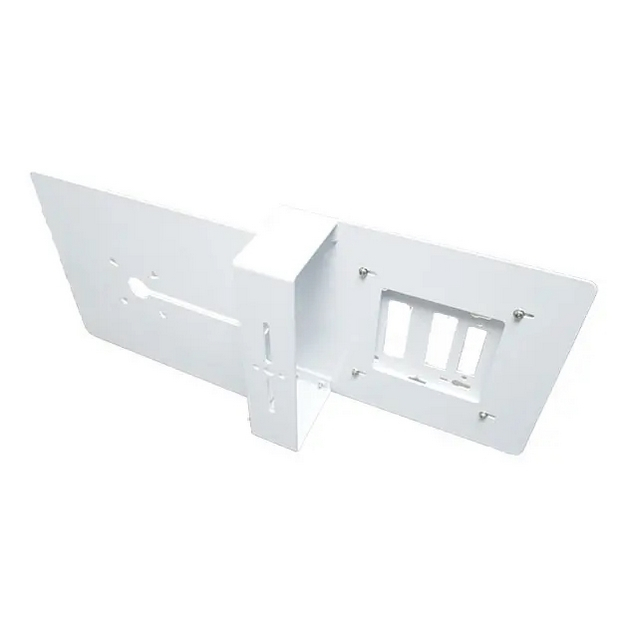

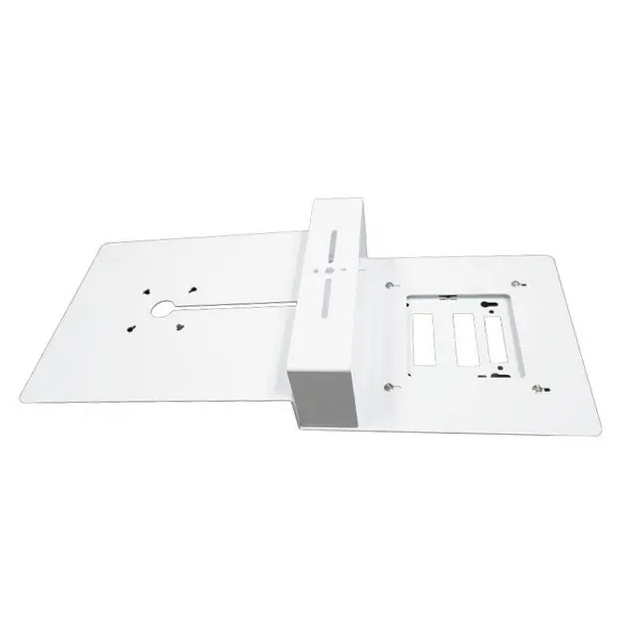

AccelTex, ATS-DRPMNT-UNIV1-STGXTD-OOOP, Staggered AP and Omni or Patch Antenna All-Thread Drop Mount

Features:

  • Opening for antenna leads
  • The antenna on the top level with AP on the bottom level OR the antenna on the bottom level with AP on the top level
  • AP mounting plate can be adjusted to accommodate the AP mounting
  • Beam clamp mounting design to allow for better adjustment to meet the size of beam clamps
  • Specifically designed for instances where AP uses BLE and needs to be lower than the antenna

The AccelTex Solutions Staggered AP and Omni or Patch Antenna All-Thread Drop Mount is an updated solution to mount an AP and an Antenna in one location using All-Thread or a Beam Clamp. This mount includes an opening for the antenna leads and allows for the AP to be installed on the bottom level with the Antenna on the top level OR vice-versa.

Dimensions:


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Dimensions23.62" x 10.24" x 4.08" (600x260x103.6mm)
Weights7.05 lbs (3.2 kg)
Installation3/8" All Thread or Beam Clamp
Installation EnvironmentIndoor
Compatible ApAruba/HP AP-314, Aruba/HP AP-315, Aruba/HP AP-344, Aruba/HP AP-345, Aruba/HP AP-504, Aruba/HP AP-505, Aruba/HP AP-514, Aruba/HP AP-515, Aruba/HP AP-518, Aruba/HP AP-534, Aruba/HP AP-535, Aruba/HP AP-555, Aruba/HP AP-565, Aruba/HP AP-567, Aruba/HP AP-574, Aruba/HP AP-575, Aruba/HP AP-584, Aruba/HP AP-635, Aruba/HP AP-655, Cisco 1562e, Cisco 1572eac, Cisco 1572ec, Cisco 3802e, Cisco 3802i, Cisco 9162i, Cisco 9164i, Cisco 9166i, Cisco Catalyst 9105AXI, Cisco Catalyst 9120AXE, Cisco Catalyst 9124AXE, Cisco Catalyst 9130AXE, Cisco Catalyst 9136i, Cisco IW9167E, Cisco Meraki MR36, Cisco Meraki MR42E, Cisco Meraki MR44, Cisco Meraki MR46, Cisco Meraki MR46E, Cisco Meraki MR52, Cisco Meraki MR53E, Cisco Meraki MR56, Cisco Meraki MR57, Cisco Meraki MR72, Cisco Meraki MR74, Cisco Meraki MR76, Cisco Meraki MR84, Cisco Meraki MR86, Mist AP32, Mist AP32E, Mist AP33, Mist AP34, Mist AP41, Mist AP41E, Mist AP43, Mist AP43E, Mist AP45, Mist AP45E, Mist AP61, Mist AP61E, Mist AP63, Mist AP63E
Applicable IndustriesEnterprise, Hospitality, Transportation, Warehouse
Ideal ApplicationsHigh Density, Indoor Wi-Fi
Applicable Technology802.11ac, 802.11ax, 802.11n
ColorWhite
MaterialSteel
Product Details
Dimensions23.62" x 10.24" x 4.08" (600x260x103.6mm)
Weights7.05 lbs (3.2 kg)
Installation3/8" All Thread or Beam Clamp
Installation EnvironmentIndoor
Compatible ApAruba/HP AP-314, Aruba/HP AP-315, Aruba/HP AP-344, Aruba/HP AP-345, Aruba/HP AP-504, Aruba/HP AP-505, Aruba/HP AP-514, Aruba/HP AP-515, Aruba/HP AP-518, Aruba/HP AP-534, Aruba/HP AP-535, Aruba/HP AP-555, Aruba/HP AP-565, Aruba/HP AP-567, Aruba/HP AP-574, Aruba/HP AP-575, Aruba/HP AP-584, Aruba/HP AP-635, Aruba/HP AP-655, Cisco 1562e, Cisco 1572eac, Cisco 1572ec, Cisco 3802e, Cisco 3802i, Cisco 9162i, Cisco 9164i, Cisco 9166i, Cisco Catalyst 9105AXI, Cisco Catalyst 9120AXE, Cisco Catalyst 9124AXE, Cisco Catalyst 9130AXE, Cisco Catalyst 9136i, Cisco IW9167E, Cisco Meraki MR36, Cisco Meraki MR42E, Cisco Meraki MR44, Cisco Meraki MR46, Cisco Meraki MR46E, Cisco Meraki MR52, Cisco Meraki MR53E, Cisco Meraki MR56, Cisco Meraki MR57, Cisco Meraki MR72, Cisco Meraki MR74, Cisco Meraki MR76, Cisco Meraki MR84, Cisco Meraki MR86, Mist AP32, Mist AP32E, Mist AP33, Mist AP34, Mist AP41, Mist AP41E, Mist AP43, Mist AP43E, Mist AP45, Mist AP45E, Mist AP61, Mist AP61E, Mist AP63, Mist AP63E
Applicable IndustriesEnterprise, Hospitality, Transportation, Warehouse
Ideal ApplicationsHigh Density, Indoor Wi-Fi
Applicable Technology802.11ac, 802.11ax, 802.11n
ColorWhite
MaterialSteel
Note

Note: Please read description carefully. Do not base your order on the picture presented.
