ACCELTEX ATS-02853 Antenna Articulating Mount
Brand:
ACCELTEX
Part #:
ATS-02853
Condition:
Brand New
Brand New $283.10 /Each
$325.97 You save $42.87 13%
There is a $500.00 minimum order required when purchasing "ACCELTEX" products
$283.10 /Each
$325.97 You save $42.87 13%
There is a $500.00 minimum order required when purchasing "ACCELTEX" products
Manufacturer warranty Description
AccelTex, ATS-APANTARTMNT-UNIV3, Version 3 Universal AP and Antenna Articulating Mount
ATS-APANTARTMNT-UNIV3 Includes Only:
- Antenna Articulating Mount Version 3
- (2) Beam Clamps

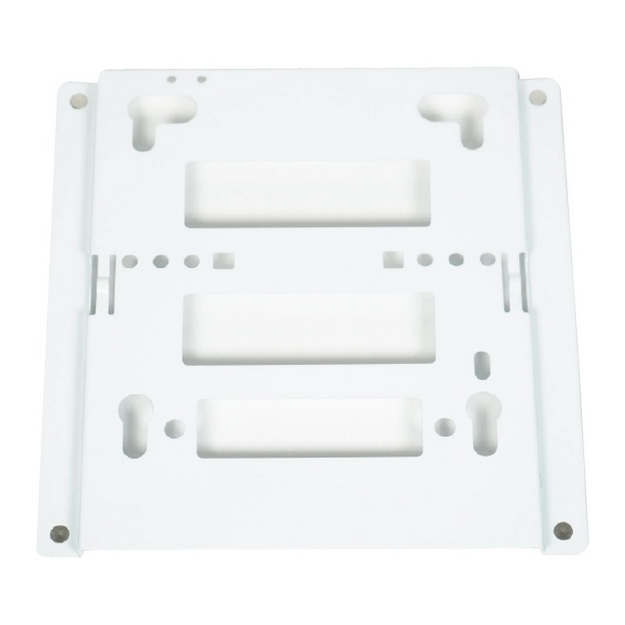

- (1) Long TBAR Mounting plate
Features:
- Special insert holes for APs that use DART cables
- Universal design to accommodate different manufacturer APs
- Maximum horizontal and vertical antenna articulation
- Includes clear degree markings for precise angling of the antenna
- Powder-coated finish for indoor or outdoor installation
- Lengthening arms can be used to acquire maximum articulation or can be removed for a more compact installation
- The Aruba mounting hole pattern has been added to all included mounting plates for better compatibility with Aruba APs
- The all-thread mounting bracket has been redesigned to enhance mounting security and safety
- An AP safety tether is recommended
Benefits:
- Easy to install
- Versatile compact design
- Variety of mounting options including beam clamps, 3/8" All-Thread, flush-wall or ceiling mount
- Simple, one-person installation
- Future proof - install an AP or antenna instantly

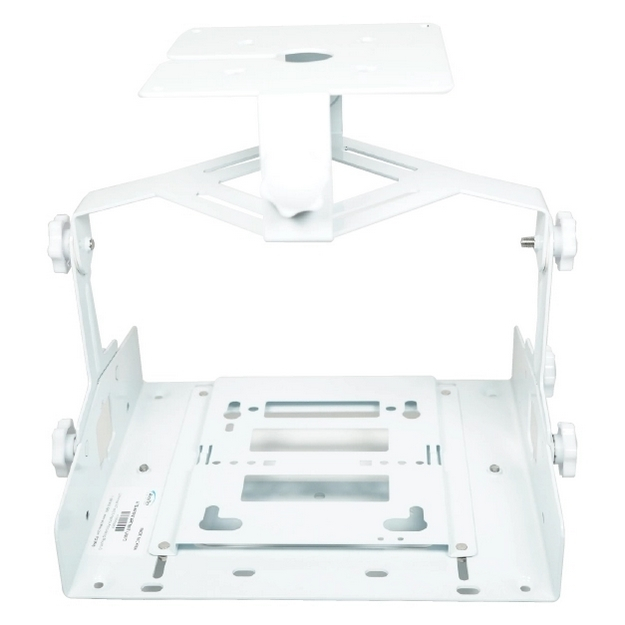

The AccelTex Solutions Universal AP and Antenna Articulating Mount Version 3 allows an AP and an antenna to be mounted in the same location. The mount can be fastened to a ceiling or wall, to an I-beam, or a piece of all-thread. The mount allows both horizontal and vertical articulation of the antenna. This mount includes a long TBAR mounting plate and includes special insert holes for APs that use DART connectors.
Technical details
Main features
- Color White
- Dimensions 10.9" L x 8.3" W x 10.5" H (277 x 210 x 266mm)
- Installation 3/8" All-Thread Mount, Ceiling, I-Beam, Metal Strapping, Wall
- Compatible Ap Adtran/Bluesocket 1925, Adtran/Bluesocket 1935, Adtran/Bluesocket 2035, Adtran/Bluesocket 3045, Aruba/HP AP-314, Aruba/HP AP-315, Aruba/HP AP-504, Aruba/HP AP-505, Aruba/HP AP-514, Aruba/HP AP-515, Aruba/HP AP-518, Aruba/HP AP-534, Aruba/HP AP-565, Aruba/HP AP-567, Cisco 3802e, Cisco AIR-ANT2566D4M-R Adapter Plate, Cisco Catalyst 9115e, Cisco Catalyst 9117, Cisco Catalyst 9120AXE, Cisco Catalyst 9120i, Cisco Catalyst 9130AXE, Cisco Meraki MR42E, Cisco Meraki MR44, Cisco Meraki MR46E, Cisco Meraki MR53E, Extreme AP 245X, Extreme AP 3935e, Mist AP32E, Mist AP33, Mist AP41, Mist AP41E, Mist AP43, Mist AP43E, Mist AP45, Mist AP45E, Mist BT11
- Applicable Industries Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
- Ideal Applications Indoor Wi-Fi, Outdoor Wi-Fi
- Applicable Technology 802.11ac, 802.11ax, 802.11n
- Weights 5.05 lbs. (2.29 kg)
