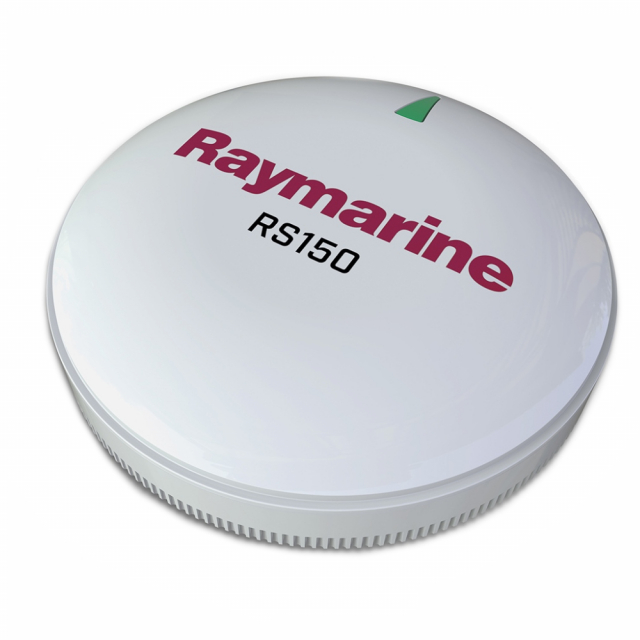

Buy Raymarine E70310, RS150 GPS/Glonass Antenna/Receiver

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

E70310 Includes Only:

Features:

72-channel GPS receiver
Fast 10Hz position updates
Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
A GNSS receiver with GLONASS compatibility
Low power consumption: 30mA (1 LEN)
SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
Designed for low profile surface mounting or optional pole mounting

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Nominal supply voltage	12V D.C. Powered by N2K bus
Operating voltage range	8 - 32V DC
Power consumption	30 mA max (NMEA LEN = 1)
Operating temperature	-13ºF to 131ºF (-25ºC to +55ºC)
Relative humidity	max 93%
Waterproof	IPx6/7
Supported connection protocols	SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
Sensitivity	High sensitivity - acquisition down to -163dBm
No. of channels	72
Positioning System	GPS & GLONASS
Satellite Differential Type	WAAS (United States) ; EGNOS (Europe) ; MSAS (Japan) ; GAGAN (India)
Differential acquisition	Automatic
Position accuracy (95%)	<15m
Position accuracy with SDGPS (95%)	<5m
Speed accuracy (95%)	<0.3kt
Time to first fix from cold start	<2 minutes (< 45 seconds typical)
Time to first fix from hot start	< 8 seconds -72 hour hold up battery allows for hot start
Geodetic Datum	WGS84
Mounting	Surface/rail/pole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Nominal supply voltage	12V D.C. Powered by N2K bus
Operating voltage range	8 - 32V DC
Power consumption	30 mA max (NMEA LEN = 1)
Operating temperature	-13ºF to 131ºF (-25ºC to +55ºC)
Relative humidity	max 93%
Waterproof	IPx6/7
Supported connection protocols	SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
Sensitivity	High sensitivity - acquisition down to -163dBm
No. of channels	72
Positioning System	GPS & GLONASS
Satellite Differential Type	WAAS (United States) ; EGNOS (Europe) ; MSAS (Japan) ; GAGAN (India)
Differential acquisition	Automatic
Position accuracy (95%)	<15m
Position accuracy with SDGPS (95%)	<5m
Speed accuracy (95%)	<0.3kt
Time to first fix from cold start	<2 minutes (< 45 seconds typical)
Time to first fix from hot start	< 8 seconds -72 hour hold up battery allows for hot start
Geodetic Datum	WGS84
Mounting	Surface/rail/pole

Note: Please read description carefully. Do not base your order on the picture presented.
