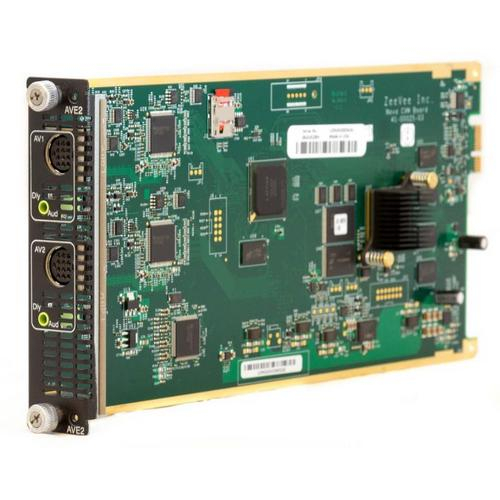

ZeeVee 3KAVE2RH HDb3000 Component/VGA Media Module Blade

HDb3000 Component/VGA Media Module Blade is an HD video encoder/modulator used in HDbridge3000 Chassis that 2 DIN inputs for up to 1080i/1080p component video/digital and analog audio or VGA video/analog audio and is MPEG-2 RF output configurable for QAM or DVB-T/C. 2 delay match analog audio output for analog audio input. Closed Captions supported on a composite input. Cables sold separately, requires "Hydra" DIN cables Zv709 (component), ZV710 (VGA), Zv739 (mini-DIN for DTV H25).

Features:

• Encodes/modulates two sources up to 1080p YPbPr and VGA on 1080i/p cards
• Encodes/modulates two up to 720p YPbPr and VGA on 720p cards
• Outputs 2 x digital HD signals in QAM or DVB-T/C
• Delivers up to 24 channels of HD per chassis
• Independent delayed matched audio on each channel
• Closed-captioned capability
