HDBT4K50 Includes Only:
- HDBT4K50 (TX & RX)
- IR Transmitter (IR TX)
- IR Receiver (IR RX)
- Mounting Hardware
- (1) DC 12V Power Supply
- Product Manual
Features:
- Features the latest HDBaseT Technology, optimized for whole-home or commercial distribution of high definition signals at much greater distances of standard HDMI cables
- Transmission Range: Extends 4K at60Hz, 4:4:4 with HDR up to 164ft/50m over a single Cat5e/6 cable and 1080p at60Hz up to 230ft/70m
- Features Power over Cable technology (PoC) which transmits power over Cat5e/6, allowing for either Transmitter or Receiver to be powered without the use of a power supply
- Virtually Lossless Compression retains high end audio and video quality
- Bi-directional IR control
- Features Auto EDID and EQ Management for plug and play installation
- HDR Compatible
- HDCP 2.2 compliant and backward compatible to previous versions
- CEC Support
- Slim and compact design
- Power Supply: DC 12V, 2A
- Dimensions: 5.75" W x .7" H x 3.7" D
The Vanco HDBT4K50 HDBaseT 4K at60Hz, 4:4:4 Chroma, HDR Extender with Bi-directional IR, and Power over Cable (PoC) extends 4K/60Hz, 4:4:4 with HDR along with audio, at a distance of up to 164ft/50m over a single Cat5e/6 cable. Also able to pass 1080p/60Hz up to 230ft/70m. Power over Cable (PoC) Technology transmits power over Cat5e/6, allowing either the Transmitter or Receiver to be powered without the use of a power supply for an easy installation. No EDID or EQ adjustments are necessary as the units automatically adjust for compatibility and gain. Inaddition, bi-directional IR pass-through allows for source and/or display control. For extending full 4K resolution with up to 60Hz, 4:4:4 chroma subsampling, and HDR, the HDBT4K50 is a great plug and play solution for connecting the latest components!

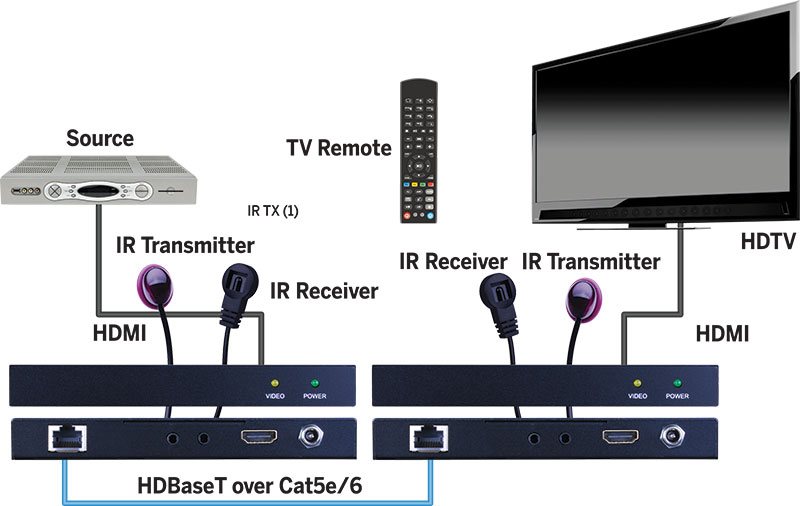

The HDBT4K50 includes two units: transmitting unit (HDBT4K50-TX) and receiving unit (HDBT4K50-RX). The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The HDBT4K50 offers the most convenient solution for 4K extension over a single Cat5e/6 with Power over Cable, and is the perfect solution for any application.
For more information, please see
Data Sheet and User Manual
