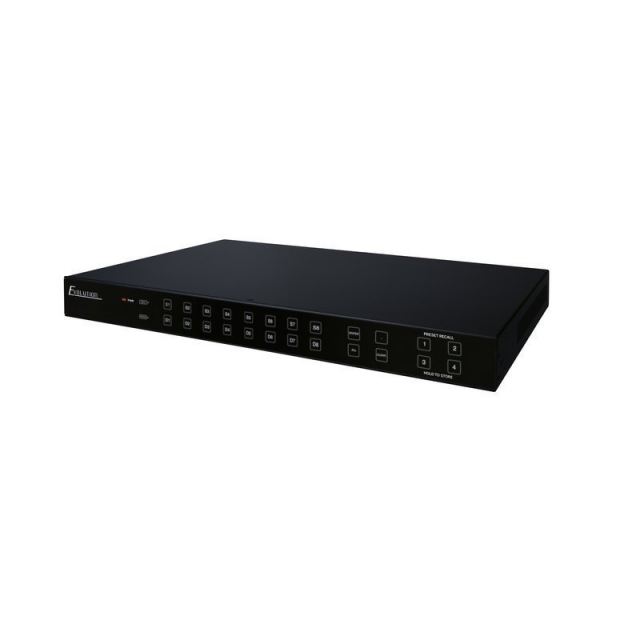

Vanco EVMX8X6 Evolution 4K HDBaseT 8x6 Matrix with 2 HDMI Outputs

Vanco, EVMX8X6, 4K HDBaseT 8x6 Matrix with 2 HDMI Outputs, IR, IP and RS-232

EVMX8X6 Includes Only:

• EVMX8X6 HDBaseT Matrix Switcher
• (2) Mounting Ears with 6 Screws
• (4) Plastic feet
• (1) IR Remote
• (8) IR Receivers
• (9) IR Emitters
• (1) RS-232 Cable (3-pin to DB9)
• (1) IR Control Cable (EV-IRMST)
• (1) Power Supply (24V DC 2.71A)
• (1) Product Manual

Features:

• 4K 8x6 HDBaseT Matrix that accommodates 6 HDBaseT outputs and 2 HDMI outputs
• Extends 4K at60Hz 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
• Outputs 4K at60Hz 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and outputs
• Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
• PoC receivers sold separate (EVRXHD2 and EVRXDSC)
• Features POC (Power over Cable) technology - providing power for the receivers resulting in easy installation
• HDCP 2.2 compliant
• Digital and analog audio breakouts for the HDMI outputs
• Built-in EDID management and advanced HDCP handling
• Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
• Features bi-directional IR and RS-232 for source and/or display control
• Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
• Dimensions: 17.2" W x 1.7" H x 15" D

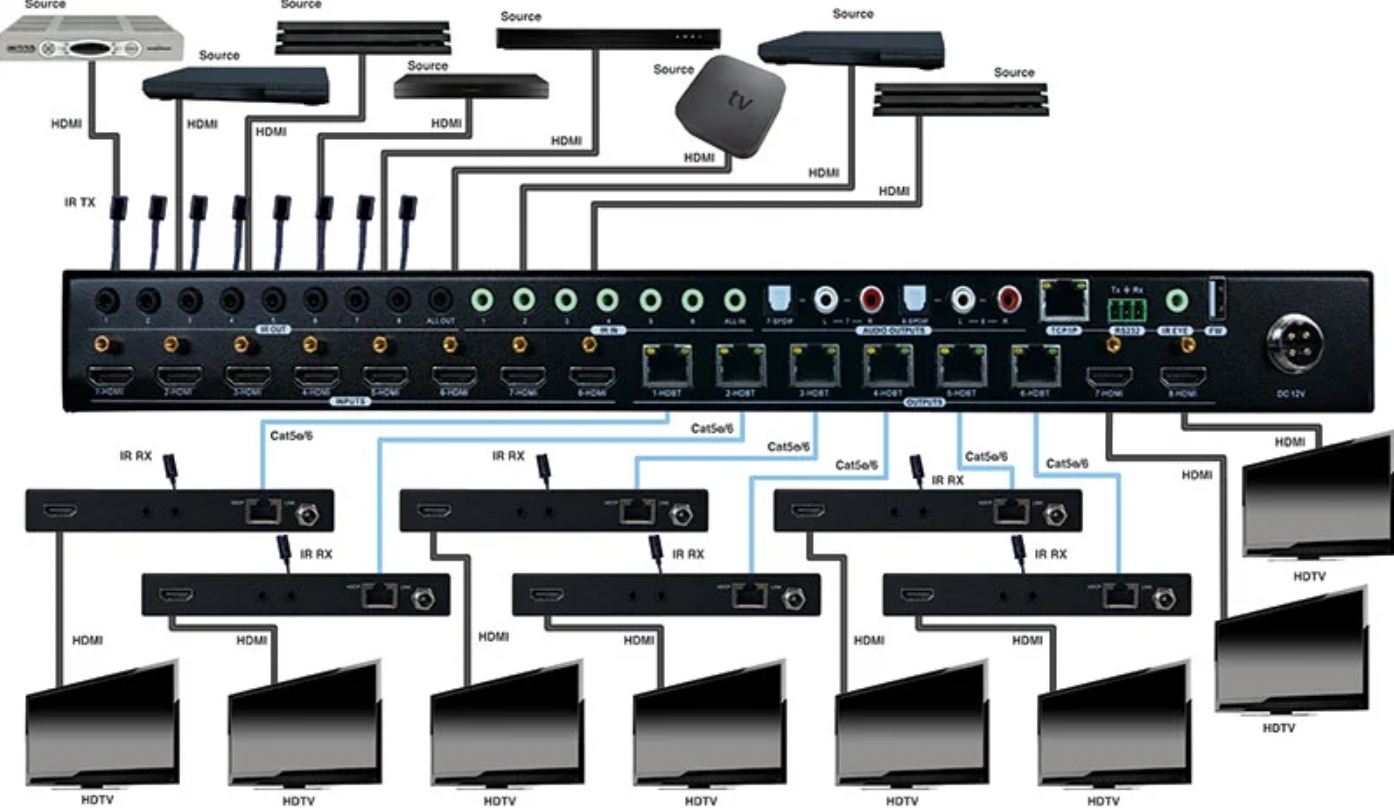

The Evolution by Vanco EVMX8X6 4K HDBaseT™ Matrix Switcher with 2 HDMI Outputs, IR, IP and RS-232 allows 8 HDMI sources to be distributed to up to 8 displays simultaneously, with 6 of the outputs over Cat6 using HDBaseT transmission and 2 outputs over HDMI. The EVMX8X6 is capable of transmitting 4K at60Hz, 4:4:4 Chroma Subsampling, and HDR up to 131ft/40m over a single Cat6 cable, and 4K at60Hz, 4:4:4 Chroma Subsampling with HDR10 and Dolby Vision on the HDMI inputs and HDMI outputs. For control, the EVMX8X6 features multiple methods including simple control using the front panel control, IR control, and an easy to use UI accessible via IP. Control switching sources to displays from a computer or a wireless device such as a tablet or mobile phone. The EVMX8X6 is compatible with both the EVRXHD2 and EVRXDSC HDBaseT receivers for additional flexibility. For switching multiple sources to multiple displays using HDBaseT technology, withmany features for control, audio, 4K HDR resolution, and scaling, the EVMX8X6 is a great choice for any application.

For more information, please see Data Sheet and User Manual
