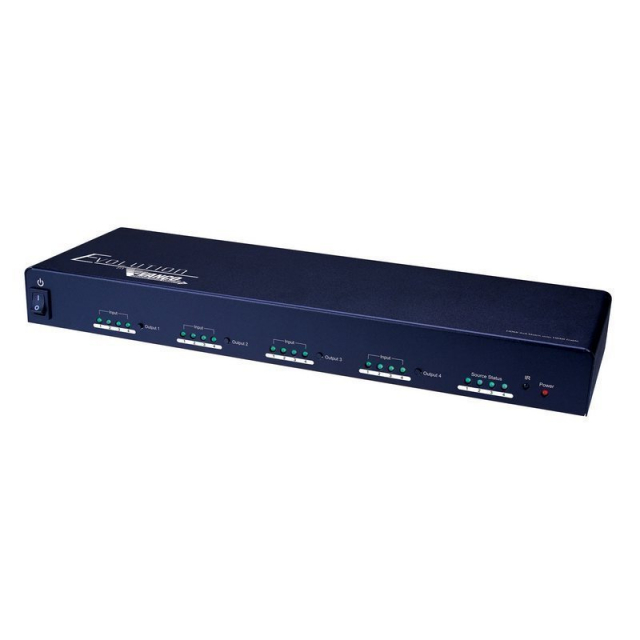

Vanco EVMX4444 Evolution HDMI 4x4 Matrix Selector Switch

EVMX4444 Includes Only:

• EVMX4444 HDMI 4x4 Matrix Selector Switch
• IR Receiver (RX)
• IR Blaster (TX)
• DC 5V4A in-line with C7 power cord
• Mounting Hardware
• IR remote control
• Installation software CD
• User Manual

Features:

• Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
• 1080p HD Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality installations on a budget
• Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any "handshake" issues
• HDCP Compliant
• Supports HDMI Deep Color and 3D
• Supports 7.1 channel digital audio
• Wideband bi-directional IR pass-through (20 to 60 kHz)
• Choose from 5 switching modes - front panel buttons- Local remote control- RS232 control- IR call-back (dedicated IR extension cable connected to IR extension port- and IR emitters on sources required)- and Ethernet control
• Easy installation mounting ear hardware set included
• TAA Compliant
• Dimensions: 14.6"(371mm)Wx1.57"(40mm)Hx4.65"(118mm)D

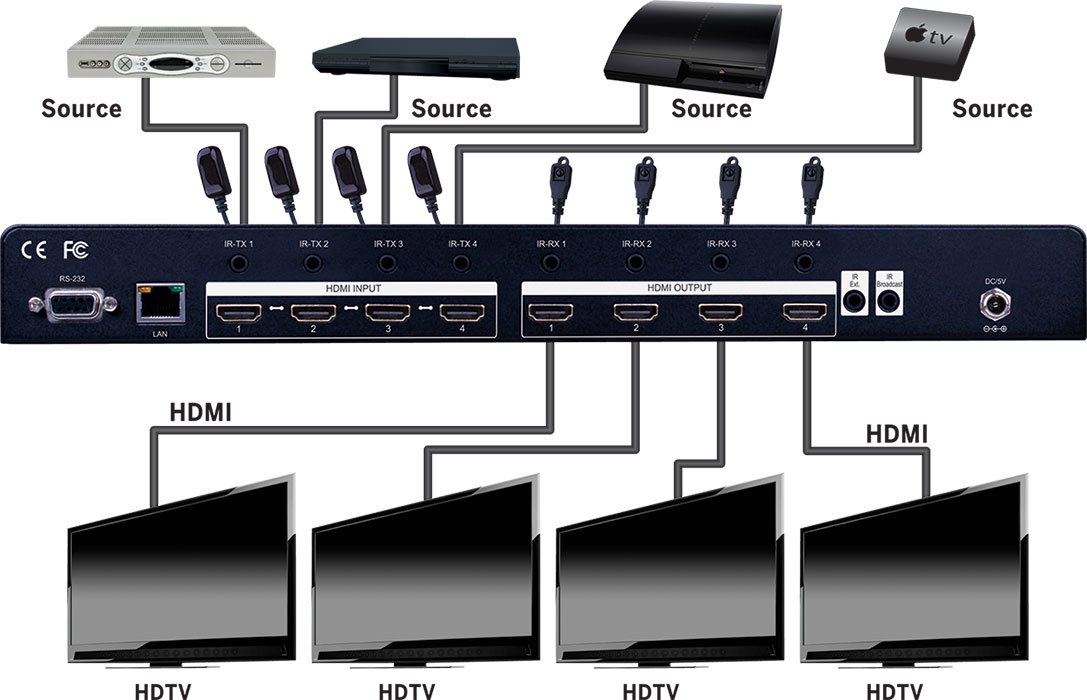

The Evolution by Vanco EVMX4444 HDMI 4x4 Matrix Selector Switch allows 4 HDMI sources to be distributed to up to 4 displays simultaneously. Have multiple sources displayed simultaneously on any display or have a single source duplicated on multiple displays, flexibility for the perfect solution. With an output bandwidth of 6.75 Gbps over HDMI, the EVMX4444 is capable of full 1080p HD video and HD multi-channel audiodistribution with simple control using the front panel or remotely via IR Receivers at display locations. Also features EDID management, which allows and encourages source and display "handshake" for seamless integration. In addition, EVMX4444 is also equipped with RS-232 and LAN connectivity which allows for firmware updates and third party integration. For reliable, no-nonsense HDMI distribution and control on a budget, over short distances, the EVMX4444 Matrix Selector Switch is a great choice for any application.

For more information, please see Data Sheet and User Manual
