Vanco, EVEXHDB3, Evolution Uncompressed 4K HDBaseT Extender with eARC, KVM, PoH, and Ethernet
EVEXHDB3 Includes Only:
- (1) EVEXHDB3 (TX and RX)
- (1) IR Emitter
- (1) IR Receiver
- (4) Mounting Ears
- (8) Mounting Screws
- (2) 3-pin Phoenix Connector
- (1) 24V/1A Locking Power Adapter
- (1) Product Manual
Features:
- Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable HDMI 2.0b, HDCP 2.3/1.4 and HDBaseT 3.0 compliant
- Extends uncompressed 4K at60Hz, 4:4:4, 18Gbps and HDR up to 328ft/100m
- Transmission distance up to 328ft/100m via a single CAT6a/7 cable, or 164ft/50m using a single Cat6 cable
- HDR compatible: passes HDR10, HDR10+, Dolby Vision and HLG formats
- Supports Enhanced Audio Return Channel (eARC) and Audio Return Channel (ARC)
- Supports multiple audio formats such as LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and more
- Able to embed audio from a separate audio source, or de-embed to break out or extract audio
- Bi-directional IR, RS-232 and 1Gb Ethernet signal pass through
- Extends and supports USB 2.0 functions such as mouse, keyboard, and touch screen control, as well as data, microphone and webcams
- HDMI loop-out for local monitoring, use with other HDMI distribution products, or for de-embedding audio from the source or display end
- Features Power over HDBaseT technology (PoH) which transmits power over Cat6/6a/7, allowing for either Transmitter or Receiver to be powered without the use of a power supply
- Dimensions: 6.7" W x 4" D x 0.9" H (170mm W x 102mm D x 22mm H)

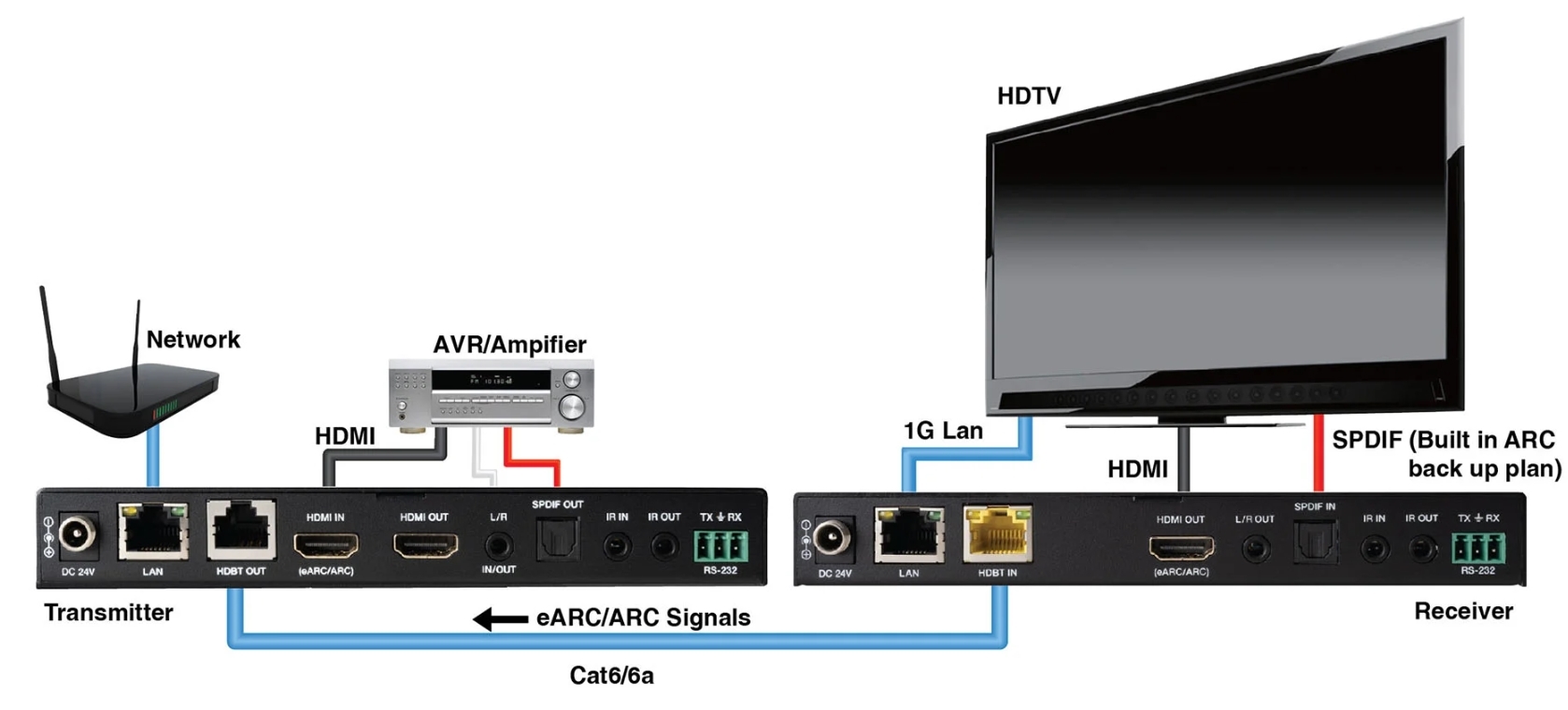

The Evolution by Vanco EVEXHDB3 HDBaseT 3.0 extender offers multiple options for pass-through control, and audio including eARC and ARC, along with PoH while being able to extend uncompressed 4K with HDR up to 164ft/50m over a sinlge Cat6 or up to 328ft/100m using Cat6a/7. Control signals include bi-directional IR pass-through to control IR sources either way, bidirectional USB for KVM pass-through to control sources with a keyboard and mouse, and RS-232 pass-through for 3rd party control. Audio options include the ability to embed audio from a separate audio source, de-embed or extract audio from the HDMI signal, as well as eARC (Enhanced Audio Retrun Channel) and ARC (Audio Return Channel). In addition, the EVEXHDB3 allows for 1Gb ethernet pass-through. A great solution when trying to extend a network for streaming or control along with the audio and video signals over a single Cat6/6a/7 cable. The transmitting unit is equipped with an HDMI loop-out, to connectto a local display, combine with another HDMI distribution product, or extract audio. Power over HDBaseT (PoH) Technology transmits power over Cat6/6a/7, allowing either the Transmitter or Receiver to be powered without the use of a power supply. For extending uncompressed 4K with HDR, along with checking multiple boxes for control and audio options and more, the EVEXHDB3 is the perfect solution for any application.

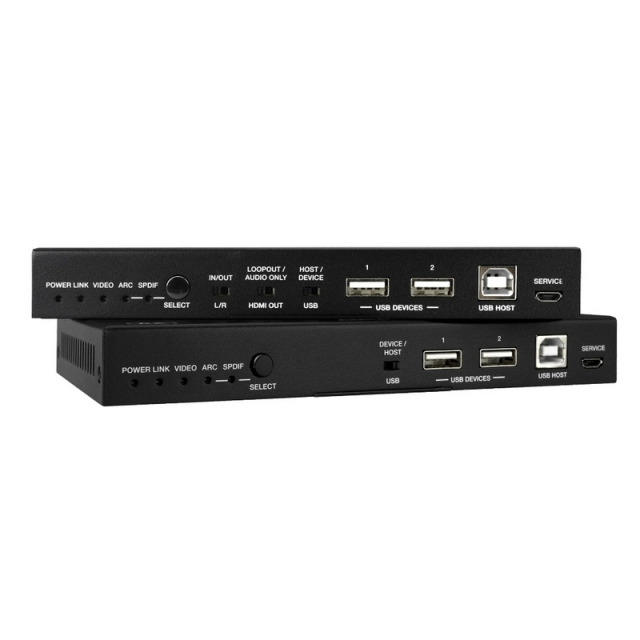

The EVEXHDB3 includes two units: transmitting unit (EVEXHDB3-TX) and receiving unit (EVEXHDB3-RX). The transmitting unit is used to capture the HDMI input with additional signals and carries the signals via a single Cat6/6a/7 cable. The receiving unit is responsible for equalizing the transmitted HDMI signals and reconstructing other signals.
Note: All specifications and ratings for the EVEXHDB3 have been tested and confirmed using Cat6 and Cat6a cabling. Cat5e is not recommended.
For more information, please see
Data Sheet and User Manual
