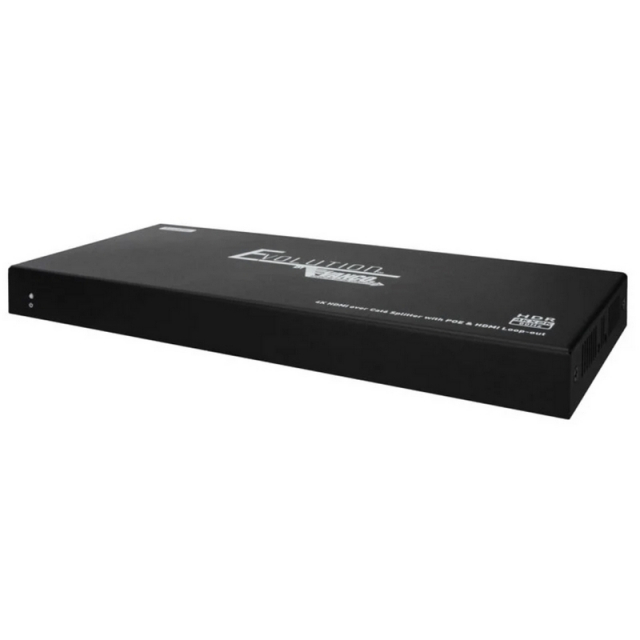

Vanco, EV4K7014, 4K 1x4 HDMI Splitter over Cat6 Cable with HDMI Loop-Out
EV4K7014 Includes Only:
- (1) EV4K7014 1x4 Splitter
- (4) EV4K7014 PoE Receivers
- (1) IR Blaster
- (4) IR Receivers (display)
- (1) 3-pin terminal block (phoenix connector)
- (1) 12V/3A power supply
- (1) Set of mounting hardware and screws
- (1) Product Manual
Features:
- llows a single source to be split and extended to multiple displays
- Complete kit with (4) PoE Receivers included
- Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
- Transmission Range: Extends 4K at 60Hz, 4:4:4 Chroma with HDR10 and IR up to 230ft/70m and 1080p up to 330ft/100m over a single Cat6 cable
- Features Power over Ethernet (PoE) Technology which transmits power over Cat6, allowing the receivers to be powered without connecting a power supply
- Latency under 30ms
- Supports bi-directional IR (20~60kHz) for source or display control
- IR accessories included allowing for source control from each UTP display location
- Features auto and manual EDID options for compatibility with source and displays
- Digital audio breakout on the receivers for source audio extraction
- HDCP 1.4/2.2 compliant
- Slim and compact design
- RS232 control of splitter
- Pure uncompressed 7.1 ch digital audio
- Supports DTS-HD and Dolby TrueHD high bit rate audio
- Splitter Dimensions: 14.3" L x 4.09 W x 0.9" H (264.40mm L x 104 mm W x 23.85mm H)
- Receiver Dimensions: 4.17" L x 3.8" W x 0.75" H (106 mm L x 99mm W x 19.20mm H)

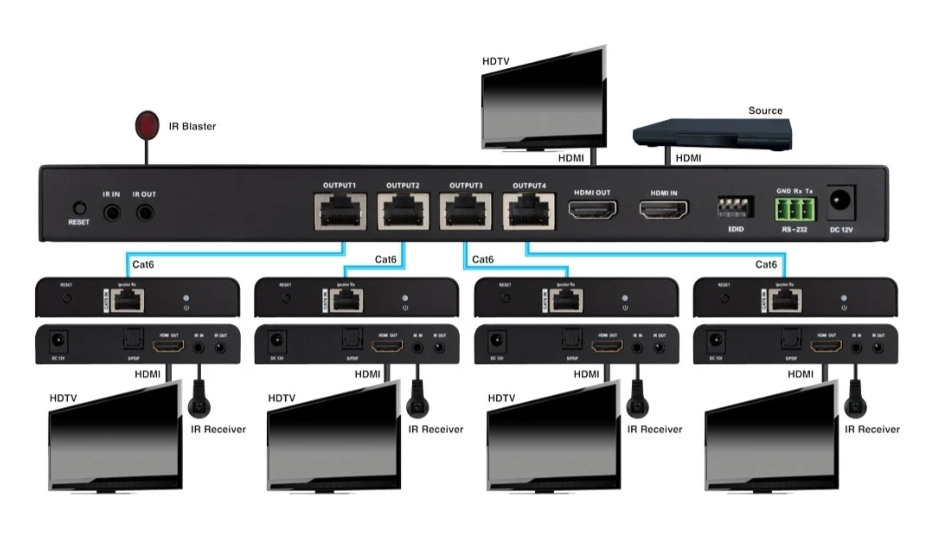

The EV4K7014 is an HDMI splitter that allows one HDMI input to be split and sent to up to five displays simultaneously. With four outputs over UTP, and one output over HDMI, the EV4K7014 allows for a local display connected, or to daisy chain additional units to gain more outputs. The EV4K7014 includes four receivers (EV4K7014-RX) as a kit, which are PoE, which do not require any power supplies at the display end. Extends 4K at 60Hz 4:4:4 with HDR10 and IR control up to 230ft/70m over a single Cat6 cable. IR accessories are included to allow IR pass through for controlling the source at each UTP display location. For splitting and distributing one single source to multiple displays, while extending over Cat6, the EV4K7014 is a great solution for any application with the ability to expand.
Note: All specifications and ratings for the EV4K7014 have been tested and confirmed using Cat6 cabling. Cat6 or better is strongly recommended for optimum performance, achieve rated distance, and to maximize resolution capabilities of this product. Cat5e is not recommended and may not achieve distance and/or resolution expectations.
