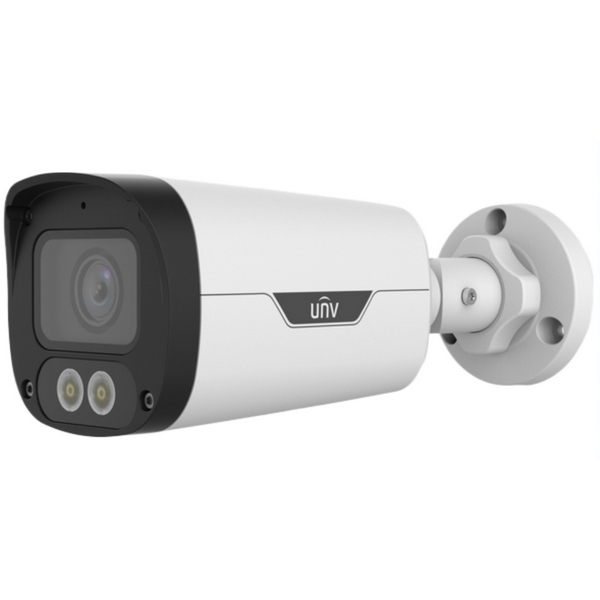

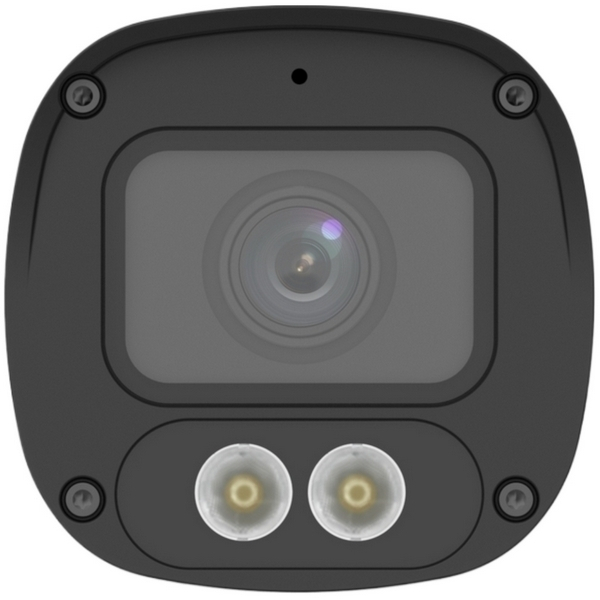

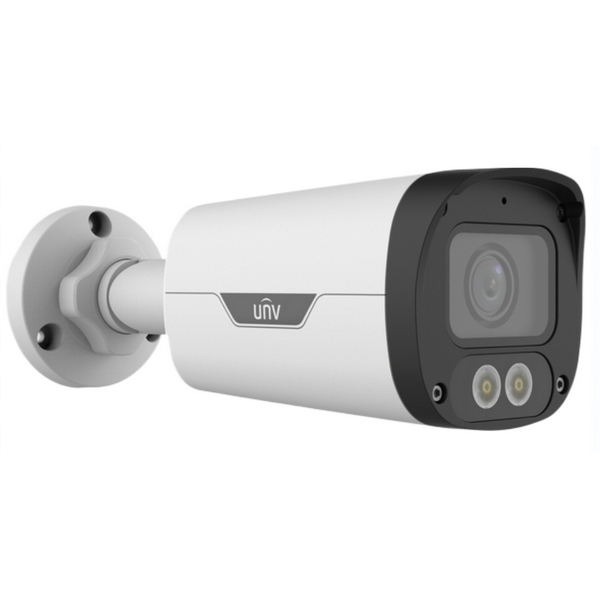

Uniview, UAC-B134-ADF28MS-W, 4MP ColorHunter Fixed Warm Light Bullet Analog Camera, 2.8 mm Lens

Features:

High quality image with 4MP F1.0 large aperture lens
2.8 mm Lens
TVI/AHD/CVI/CVBS
Supports white light illumination, 24/7 color images
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
120dB true WDR technology enables clear image in strong light scene

For more information, please see pdf file User Manual

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Sensor

Pixel

4MP

Sensor Size

1/1.8" CMOS

Min. Illumination

0.0005 lux (F1.0, AGC ON)
0 lux (white light on)

Lens

Focus

2.8 mm

Lens Mount

M16

Angle of View (H)

105.9°

Angle of View (V)

57.1°

Angle of View (D)

125.0°

Illuminator

Illuminator Number

Two white-light illuminators

Illumination Distance

40m

Lifetime

≥60000 hours

Video

Resolution

4MP: 2560 (H) x 1440 (V)
1080P: 1920 (H) x 1080 (V)

Frame Rate

CVI: 4MP at 25fps (default), 4MP at 30fps,1080P at 25fps, 1080P at 30fps
AHD: 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
TVI: 4MP at 15fps, 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
CVBS: PAL, NTSC

Shutter Time

PAL: 1/25s-1/50000s
NTSC: 1/30s-1/50000s


Exposure Mode

Four modes: Global(default), BLC, HLC, DWDR

Day/Night

24/7 color images

Digital Noise Reduction

2D/3D

White Balance

Two modes: Auto (default), Manual

WDR

120dB WDR

Flip

Supports 180°horizontal flip, 180°vertical flip

Audio

Built-in Mic

Support

Camera Audio

CVI: 4MP at 25fps, 4MP at 30fps, 1080P at 25fps, 1080P at 30fps

Interface

Power Interface

5.5 mm Power Interface

Video Output

BNC, supports TVI/AHD/CVI/CVBS

Operating Environment

Temperature

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity

≤95% RH (non-condensing)

Surge Protection

4kV for power, 4kV for video output interfaces

General

Power

DC12Vplusmn;25%

Power Consumption

MAX 6.8W

Mount

Corner Mount & Pole Mount

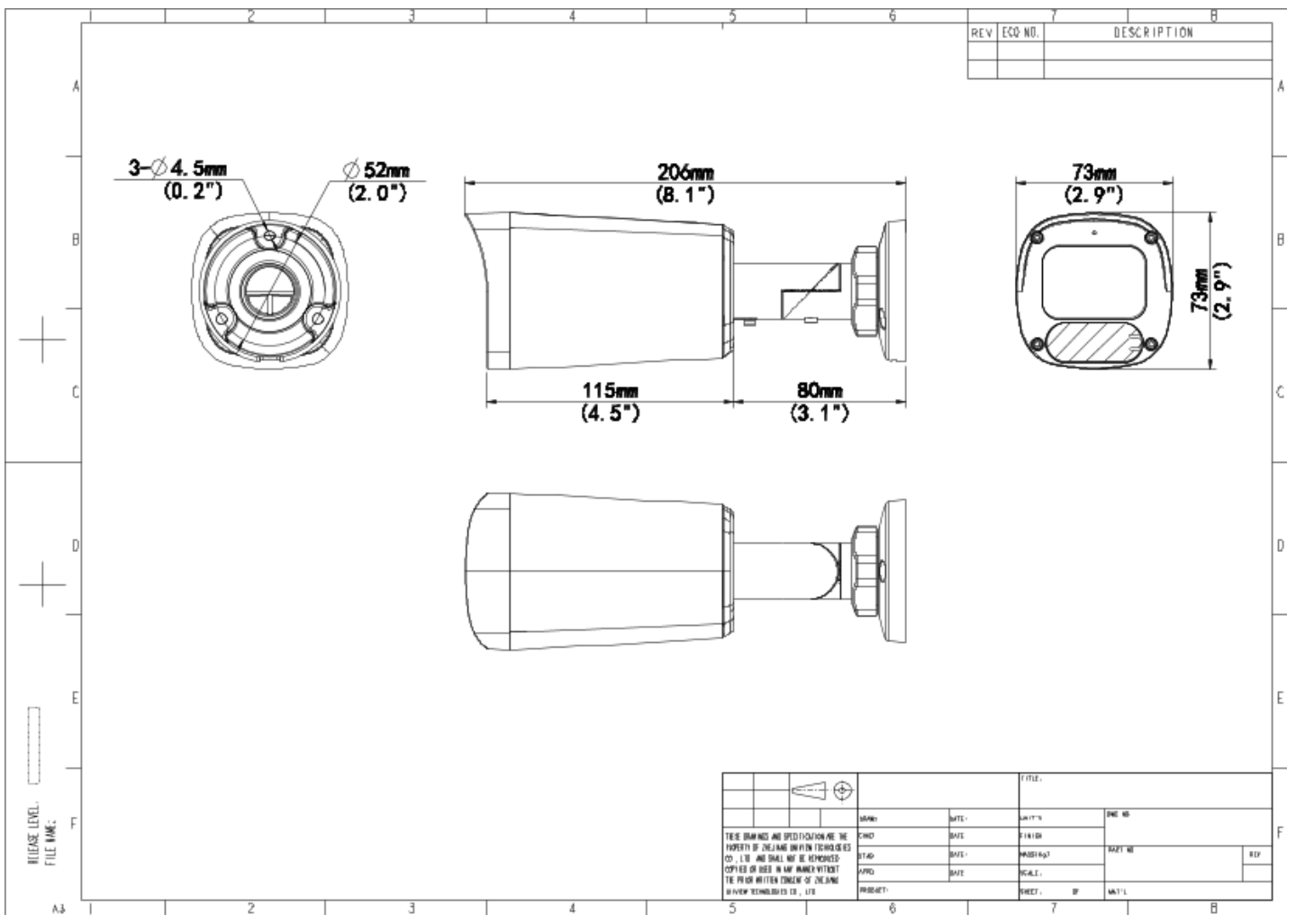

Dimensions

206mm*73mm*73mm (L*W*H)

Material

Graphene + Metal

Weight

463g(1.02lb)

Notes
