| Camera |
| Max Resolution | 5MP |
| Sensor | 1/2.7" CMOS |
| Minimum Illumination | Colour: 0.001 lux ( F1.0, AGC ON) 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Adjustment angle | - Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
|
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s |
| S/N | >56dB |
| WDR | 130dB |
| Lens |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 112.8° |
| Field of View (V) | 59.4° |
| Field of View (D) | 116.3° |
| DORI Distance |
| Lens (mm) | 2.8mm |
| Detect (m) | 63.0m (206.7ft) |
| Observe (m) | 25.2m (82.7ft) |
| Recognize (m) | 12.6m (41.3ft) |
| Identify (m) | 6.3m (20.7ft) |
| Illuminator |
| Supplemental Light | Dual Light |
| Illumination Distance (IR) | IR 30 m, Warm Light 30 m |
| Illumination Distance (Warm Light) | IR 30 m, Warm Light 30 m |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profil |
| Frame Rate | - Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
- Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
|
| Video Bit Rate | 128 Kbps~6 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple Streams |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Auto Scene Match (ASM) | Support (Only WDR) |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| BLC | Support |
| HLC | Support |
| Defog | Digital Defog |
| Events |
| Basic Detection | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication; Alarm Input; Alarm Output |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Suppression | Support |
| Two-way Audio | Support |
| Sampling Rate | 8KHZ |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH |
| Compatible Integration | - ONVIF (Profile S, Profile G, Profile T)
- API
- SDK
|
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | - UNV-Link
- UNV-Link Pro
- EZStation
|
| Web Browser | - Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;
- Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
|
| Interface |
| Built-in Mic | Support |
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p]; 1 Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certification |
| EMC | - CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
- FCC (FCC 47 CFR part15 B)
|
| Safety | - CE-LVD (EN 62368-1)
- CB (IEC 62368-1)
- UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
|
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General |
| Power | DC 12Vplusmn;25%, PoE (IEEE 802.3af) |
| Power Interface | Ø 5.5mm coaxial power plug |

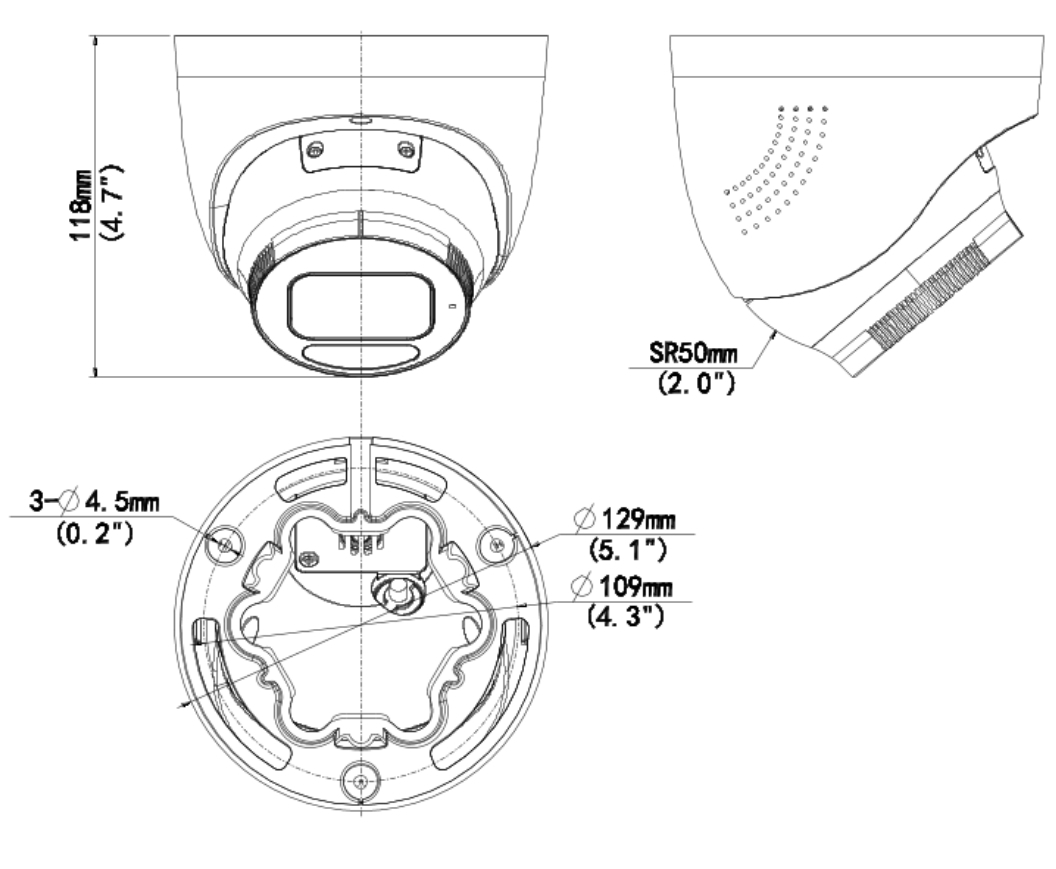

| Dimensions (Ø x H) | Φ129 x 110mm (Ø5.1” x 4.3”) |
| Weight | 0.69kg (1.53lb) |
| Material | Metal |
| Working Environment | -40 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Booting Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| Web Client Language | 20 Languages:- Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
|
 |
