| Camera |
| Max Resolution | 2MP |
| Sensor | 1/2.8" CMOS |
| Minimum Illumination | Colour: 0.01 lux (F1.6, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | - Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
|
| S/N | >52dB |
| WDR | 120dB |
| Lens |
| Focal Length | 2.8mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 106.7° |
| Field of View (V) | 57.1° |
| Field of View (D) | 115.7° |
| DORI |
| DORI Distance (Lens) | 2.8mm |
| DORI Distance (Detect) | 43.4m (142.4ft) |
| DORI Distance (Observe) | 17.4m (57.1ft) |
| DORI Distance (Recognize) | 8.7m (28.5ft) |
| DORI Distance (Identify) | 4.3m (14.1ft) |
| Illuminator |
| Supplemental Light | Dual Light |
| Illumination Distance (IR) | 30m |
| Illumination Distance (Warm Light) | 30m |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | - Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
|
| Video Bit Rate | 128 Kbps~6144 kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events |
| Basic Detection | Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Intrusion (based on Human Body Detection); Cross line |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio |
| Audio Compression | G.711A,G.711U |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; SNMP; QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF |
| Client | - UNV-Link
- UNV-Link Pro
- EZStation
|
| Web Browser | - Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
|
| Interface |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Certification |
| EMC | - CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2, EN50130)
- FCC (FCC 47 CFR part15 B)
|
| Safety | - CE LVD (EN 62368-1)
- UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
|
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General |
| Power | - DC 12Vplusmn;25%, PoE (IEEE 802.3af)
- Power consumption: Max 9.0W
|
| Power Interface | Ø 5.5mm coaxial power plug |

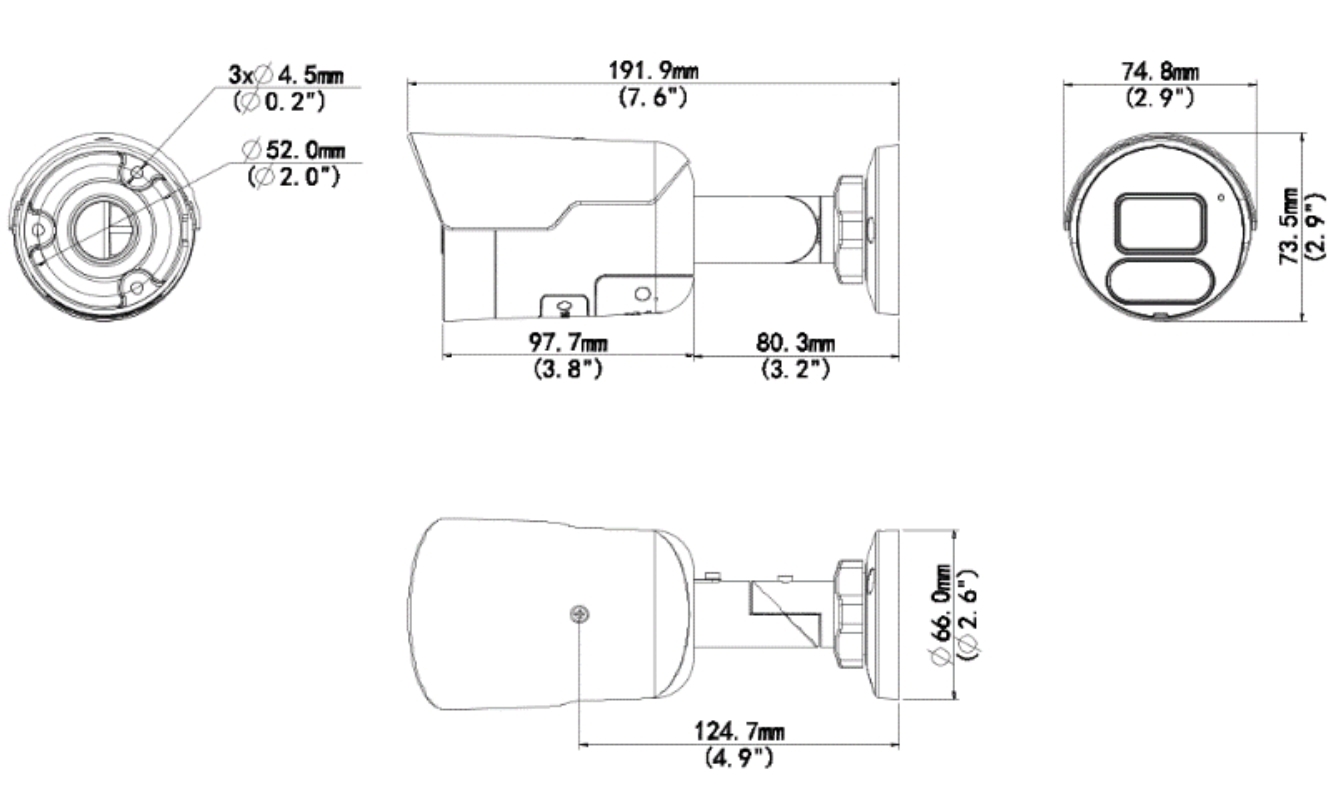

| Dimensions (L x W x H) | 192x75x74mm (7.6”x2.9”x2.9”) |
| Weight | 0.40kg (0.88lb) |
| Material | Graphene + Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
 |
