Note: Battery and Charger not included!

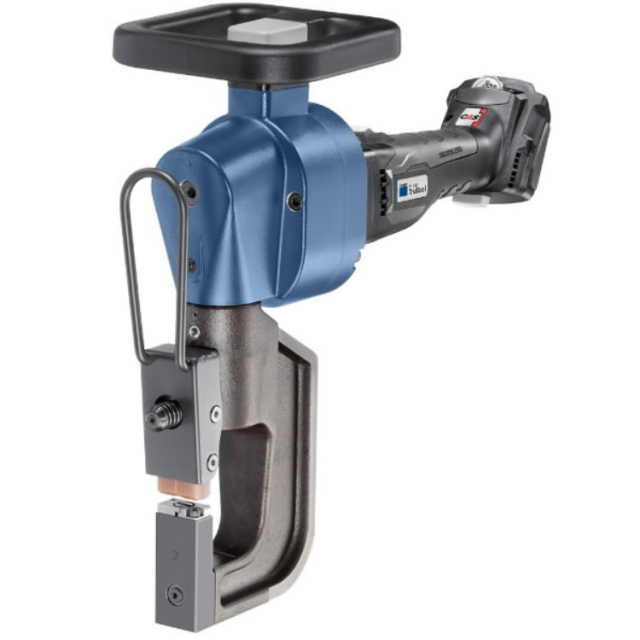

Trumpf, 2534925, TruTool TF 350 Power-Fastener Tool Con Bracetto Ribaltabile, LiHD Battery 18V
Features:
- Straight to the point The connection point is secure and resilient and the joining points are resistant to corrosion.
- No connecting elements No screws or rivets are used, which saves costs and simplifies handling
- Perfect surface in one operation The joining quality does not depend on whether surfaces are coated or uncoated.
- 120 joining points per minute Simple single stroke activation with consistent strength and connection quality.
Joining is the simplest and most cost-effective way of connecting two or more metal parts. With the TruTool TF 350 you can produce a form-fitting connecting element with joints that are easy to reproduce from the material with cold forming. Whether the workpieces are coated or uncoated is irrelevant. The TruTool TF 350 joins total material thicknesses of 0.8 mm to max. 4 mm. The result is a long-lasting connection in one operation, without additional connecting elements.

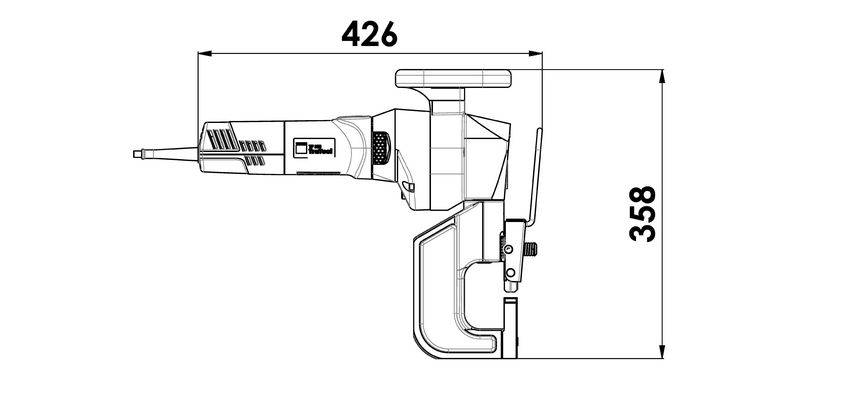

TruTool TF 350, dimensional drawing
For upwards joining direction
For the upper tool, you have the choice between a tilting arm for the die or alternatively a fixed die arm. For the lower tool, select the fixed punch arm. The die arm and die are determined by the material type and thickness.
For joining points at bottom
For the upper tool, you have the choice between a fixed punch arm or alternatively a tilting arm for the punch. For the lower tool, select the fixed die arm. The die arm and die are determined by the material type and thickness.
