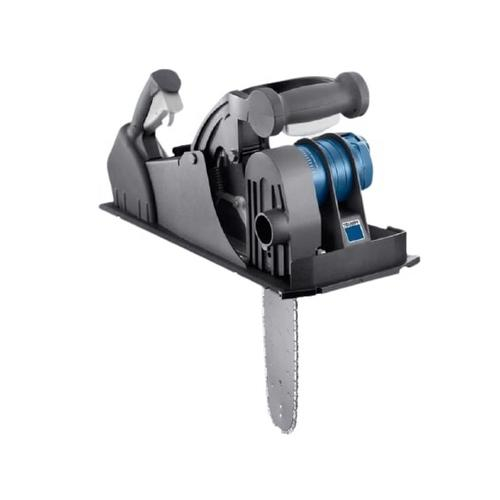

Buy Trumpf 2451585, TruTool TPC 165 (2A1) Panel Cutter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

With this panel cutter, you can cut sandwich panels up to a thickness of 6.5 in. The blade insertion mechanism enables the production of accurate, perpendicular interior cutouts and notches. In one operation. The machine is ready for operation without presettings. Simply select the correct blade position and begin cutting. The TruTool TPC 165 can cut panels regardless of whether the surface is flat, trapezoidal, or corrugated.

1751838 Includes Only:

Panel Cutter
Saw chain 165 (integrated)
Blade 165 (integrated)
Slide rail (integrated)
Wear plate (integrated)
Wear plate, front
Combination wrench
Punching and nibbling oil for steel, 17 oz
Case

Features:

Perpendicular cuts
Unique
Up to four meters per minute
Compact and light

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Maximum Panel Thickness	165 mm
Maximum Individual Material Thickness For Steel Up To 400 N/mm²	0.9 mm
Insulation Material	Polyurethane foam, polyisocyanurate foam
Smallest Possible Opening By Piercing	340 mm x 340 mm
Working Speed	4 m/min
Cutting Track Width	4 mm
Nominal Input Power	1400 W
Weight Without Cable	9.6 kg

Manufacturer List Price:

$4,800.00

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Maximum Panel Thickness	165 mm
Maximum Individual Material Thickness For Steel Up To 400 N/mm²	0.9 mm
Insulation Material	Polyurethane foam, polyisocyanurate foam
Smallest Possible Opening By Piercing	340 mm x 340 mm
Working Speed	4 m/min
Cutting Track Width	4 mm
Nominal Input Power	1400 W
Weight Without Cable	9.6 kg
