Buy TOA ZM-9011, Assignable Remote Button Panel 24 V DC 50 mA or Less

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

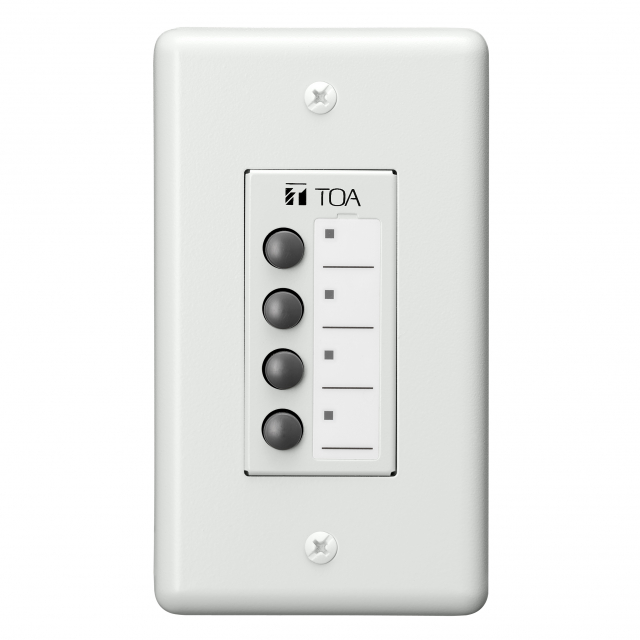

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9011 is a wall mounted remote control panel having 4 buttons. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 1-gang electrical box in the wall.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Power Source

24 V DC (supplied from RC-001T or M-864D)

Current Consumption

50 mA or less

Terminal

Removable terminal block (10 pins)

Connection Cable

Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)

Operating Section

4 function buttons

Indicator

4 function indicators (green LEDs)

Operating Temperature

0°C to +40°C (32°F to 104°F)

Operating Humidity

35 % to 80 %RH (no condensation)

Finish

Surface-treated steel plate, white, paint

Dimensions

72 (W) x 127 (H) x 49.5 (D) mm (2.83" x 5" x 1.95")

Weight

160 g (0.35 lb)

Accessory

Box mounting screw (No.6-32UNC x 30) 2
Box mounting screw (M4 x 30) 2
Panel mounting screw 2
Removable terminal plug (10 pins) 1

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Power Source

24 V DC (supplied from RC-001T or M-864D)

Current Consumption

50 mA or less

Terminal

Removable terminal block (10 pins)

Connection Cable

Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)

Operating Section

4 function buttons

Indicator

4 function indicators (green LEDs)

Operating Temperature

0°C to +40°C (32°F to 104°F)

Operating Humidity

35 % to 80 %RH (no condensation)

Finish

Surface-treated steel plate, white, paint

Dimensions

72 (W) x 127 (H) x 49.5 (D) mm (2.83" x 5" x 1.95")

Weight

160 g (0.35 lb)

Accessory

Box mounting screw (No.6-32UNC x 30) 2
Box mounting screw (M4 x 30) 2
Panel mounting screw 2
Removable terminal plug (10 pins) 1
