Features:

Compatible with all frequency bands
Antenna and DC Power Distribution for up to four WT-4800's
Two paralleled front and rear panel antenna inputs, eight antenna outputs, BNC-type
Use with whip antennas (included with WT-5800/5805) or two YW-4500's
Four DC cables included (antenna cables not included, supplied by others)
Optional rack-mount kit, model MB-15B

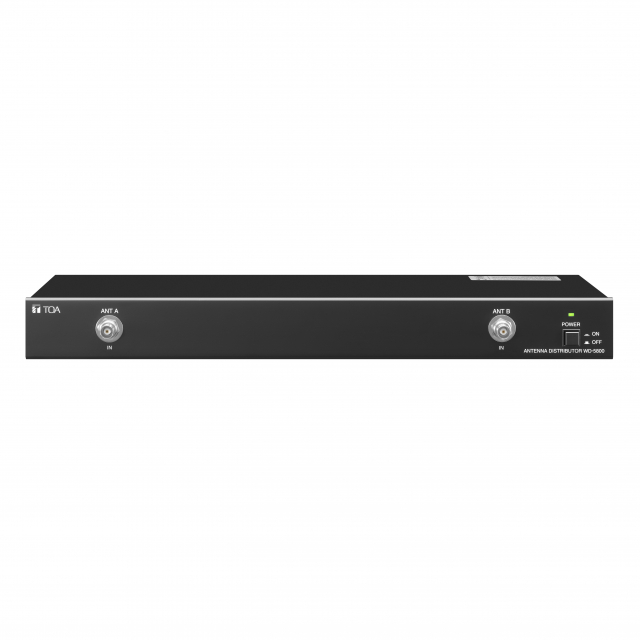

The TOA Wireless antenna distributor WD-5800 is designed to be used in conjunction with VHF/UHF band system. It comes with two distribution channels, in which two input signals are mixed and distributed to four outputs. The WD-5800 also has four DC power distribution outputs.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Power Source

AC mains (supplied AC adapter must be used)

Power Consumption

25 W or less

Current Consumption

1.6 A (12 - 15 V DC)

Frequency Range

VHF/UHF

Antenna Input

2 inputs per distribution channel (front x 1, rear x 1), 75 Ω, BNC (phantom power for antenna)

Antenna Output

4 outputs per distribution channel, 75 Ω, BNC

DC Power Supply

4 outputs (each output: 12 V DC/250 mA) (Output voltage of this unit depends on that of AC adapters.)

Indicator

Power lamp

Operating Temperature

-10°C to +50°C (14°F to 122°F)

Operating Humidity

30 % to 85 %RH (no condensation)

Finish

Panel: Aluminum, black, paint
Case: Steel, black, paint

Dimensions

420 (W) x 44 (H) x 214 (D) mm (16.54"x 1.73" x 8.43")

Weight

2 kg (4.41 lb)

Accessory

AC adapter (*1) 1
Power cord (2 m (6.56 ft)) (*1) 1
DC cable 4
Rubber foot 4

Option

Rack mounting bracket: MB-15B

Product Details

Power Source

AC mains (supplied AC adapter must be used)

Power Consumption

25 W or less

Current Consumption

1.6 A (12 - 15 V DC)

Frequency Range

VHF/UHF

Antenna Input

2 inputs per distribution channel (front x 1, rear x 1), 75 Ω, BNC (phantom power for antenna)

Antenna Output

4 outputs per distribution channel, 75 Ω, BNC

DC Power Supply

4 outputs (each output: 12 V DC/250 mA) (Output voltage of this unit depends on that of AC adapters.)

Indicator

Power lamp

Operating Temperature

-10°C to +50°C (14°F to 122°F)

Operating Humidity

30 % to 85 %RH (no condensation)

Finish

Panel: Aluminum, black, paint
Case: Steel, black, paint

Dimensions

420 (W) x 44 (H) x 214 (D) mm (16.54"x 1.73" x 8.43")

Weight

2 kg (4.41 lb)

Accessory

AC adapter (*1) 1
Power cord (2 m (6.56 ft)) (*1) 1
DC cable 4
Rubber foot 4

Option

Rack mounting bracket: MB-15B

Note

Note: Please read description carefully. Do not base your order on the picture presented.
