Buy TOA N-8050SB, Substation PCB 300-7.000 Hz 1.8 W 2 Wire Screw Terminal

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

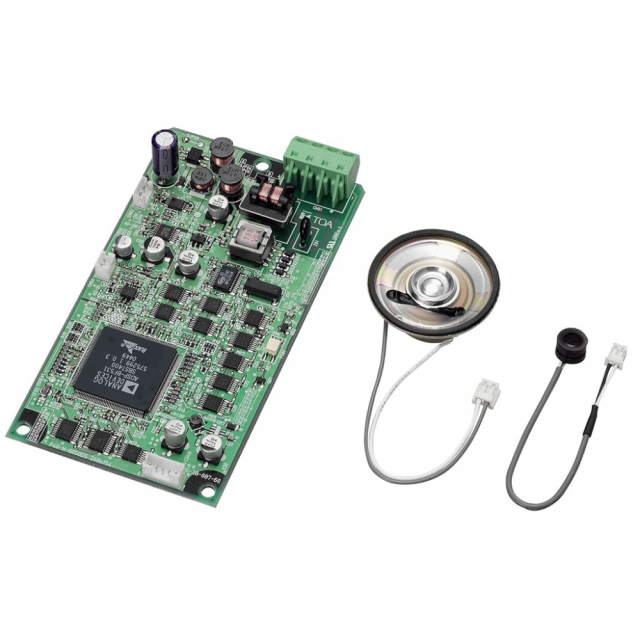

The N-8050SB is a printed circuit board unit for the N-8050DS Door Station, You can make the sub station suitable for applications using the N-8050SB in combination with the operation panel section to be prepared separately.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Power Source

48 V DC (supplied from the IP intercom exchange (option))

Power Consumption

1.8 W (at rated), 2.4 W (max.)

Wiring Method

Non-polar one pair stranded wire system

Transmission System

2 wire 160 kbps echo canceller transmission system

Signal Level

Under 0 dB*

Speech Method

Hands-free conversation

Audio Frequency Range

300 - 7,000 Hz

Transmission Range

Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)

Hands-free

Speaker (accessory): 3.5 cm cone-type, 1 W, 8 Ω
Microphone (accessory): Omni-directional electret condenser microphone

Contact Output

Open collector output, withstand voltage: Max. 30 V DC, control current: Max. 50 mA
One shot: can be set from 1 to 9 sec, screw terminal (polarized)

Line Connection Terminal

2 wire, screw terminal (non-polar)

Status Indicator LED Connecting Terminal

Solderless connector (5 pins, male), voltage: 5 V, maximum load current: 4.1 mA

Call Button Connecting Terminal

Solderless connector (5 pins, male), open voltage: 3.3 V DC
Short-circuit current: 1.5 mA

Operation Temperature

-10°C to +50°C

Operation Humidity

Under 90% RH (no condensation)

Dimensions

67 (W) x 128.3 (H) x 26 (D) mm

Weight

100 g (including accessories)

Accessory

Hands-free speaker (with connection cord) 1
Hands-free microphone (with connection cord) 1

Product Details

Power Source

48 V DC (supplied from the IP intercom exchange (option))

Power Consumption

1.8 W (at rated), 2.4 W (max.)

Wiring Method

Non-polar one pair stranded wire system

Transmission System

2 wire 160 kbps echo canceller transmission system

Signal Level

Under 0 dB*

Speech Method

Hands-free conversation

Audio Frequency Range

300 - 7,000 Hz

Transmission Range

Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)

Hands-free

Speaker (accessory): 3.5 cm cone-type, 1 W, 8 Ω
Microphone (accessory): Omni-directional electret condenser microphone

Contact Output

Open collector output, withstand voltage: Max. 30 V DC, control current: Max. 50 mA
One shot: can be set from 1 to 9 sec, screw terminal (polarized)

Line Connection Terminal

2 wire, screw terminal (non-polar)

Status Indicator LED Connecting Terminal

Solderless connector (5 pins, male), voltage: 5 V, maximum load current: 4.1 mA

Call Button Connecting Terminal

Solderless connector (5 pins, male), open voltage: 3.3 V DC
Short-circuit current: 1.5 mA

Operation Temperature

-10°C to +50°C

Operation Humidity

Under 90% RH (no condensation)

Dimensions

67 (W) x 128.3 (H) x 26 (D) mm

Weight

100 g (including accessories)

Accessory

Hands-free speaker (with connection cord) 1
Hands-free microphone (with connection cord) 1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
