Buy TOA N-8010EX CU, IP Intercom Exchange, economy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: IP Intercom Exchange (economy)

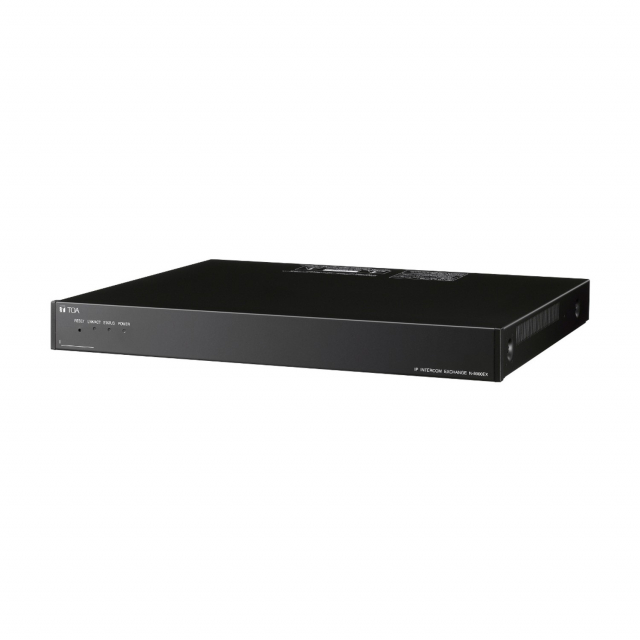

The N-8010EX IP Intercom Exchange uses packet audio technology to permit connection of up to 16 N-8000 series 2-wire master or door stations. Master stations and door stations use the same unshielded twisted pair wiring. Each N-8010EX supports one voice link. The N-8010EX supports the audio trigger function. The exchange may be used as a stand-alone system (requires at least one master station) or connected to an N-8000 IP intercom system over LAN or WAN. Rack mount and wall mount hardware are included.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for TOA items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Power Source

120 V AC, 50/60 Hz

Power Consumption

50 W (at rated), 75 W (max.)

Interface Section for station

Number of lines: 16 lines
Number of speech link: Internal: 1/External: 2
Type of Speech Path: Space sharing/Time Space sharing
Transmission system: 2 wire 160 kbps echo canceller transmission system
Signal Level: 0 dB* or less
Transmission range: Max. 1500 m (0.65 mm, Loop resistance 170 Ohm )
Speech method: Simultaneous conversation by way of echo canceller (Hands-free),
Connector: Dedicated connector
Wiring method: 1 set of twisted pair cable
Feeding voltage/current: 48 V DC, Max. 70 mA

Paging Output

Station paging only

Network Section

Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)

Indication

Network LNK/ACT indication, Status lamp, Power-on indication lamp

Others

Firmware update function, System registration data entry hold facility,
Time of day hold facility, Forced air cooling, Reset switch (front panel)

Setting Method

Rack, Desk, Surface mount

Operating Temperature

0 °C to +40 °C

Operating Humidity

90 %RH or less (no condensation)

Finish

Pre-coated steel plate, black, 30 % gloss

Dimensions

420 (W) x 44.3 (H) x 356 (D) mm

Weight

4.2 kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Power Source

120 V AC, 50/60 Hz

Power Consumption

50 W (at rated), 75 W (max.)

Interface Section for station

Number of lines: 16 lines
Number of speech link: Internal: 1/External: 2
Type of Speech Path: Space sharing/Time Space sharing
Transmission system: 2 wire 160 kbps echo canceller transmission system
Signal Level: 0 dB* or less
Transmission range: Max. 1500 m (0.65 mm, Loop resistance 170 Ohm )
Speech method: Simultaneous conversation by way of echo canceller (Hands-free),
Connector: Dedicated connector
Wiring method: 1 set of twisted pair cable
Feeding voltage/current: 48 V DC, Max. 70 mA

Paging Output

Station paging only

Network Section

Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)

Indication

Network LNK/ACT indication, Status lamp, Power-on indication lamp

Others

Firmware update function, System registration data entry hold facility,
Time of day hold facility, Forced air cooling, Reset switch (front panel)

Setting Method

Rack, Desk, Surface mount

Operating Temperature

0 °C to +40 °C

Operating Humidity

90 %RH or less (no condensation)

Finish

Pre-coated steel plate, black, 30 % gloss

Dimensions

420 (W) x 44.3 (H) x 356 (D) mm

Weight

4.2 kg
