Buy TOA ER-1000A-BT, Personal PA System

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

ER-1000A-BT Includes Only:

1 x Personal PA System
1 x Headset microphone (with headband and wind screen)
1 x Belt (attached to the main PA unit)
2 x Battery spacer

Features:

Highly intelligible sound
Fit for prolonged usage
Audio player connectable
Easy to operate
Useful pouch for carrying accessories
Able to be set on both sides of body

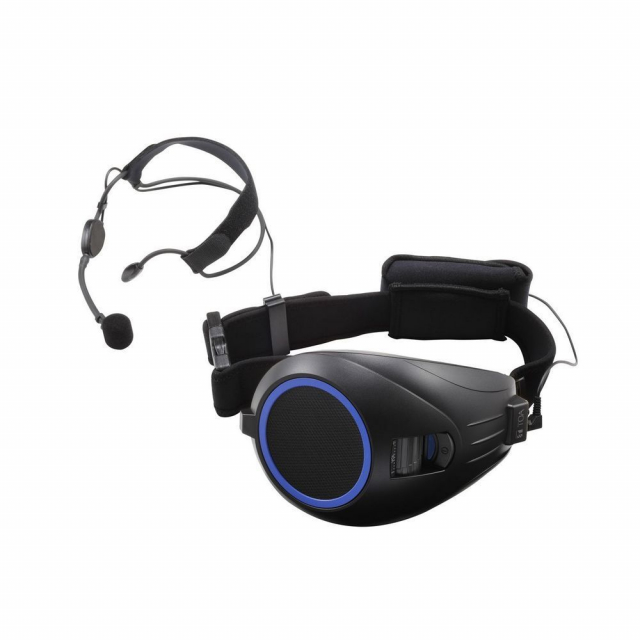

The ER-1000A-BT is a wearable, easy-to-operate, personal PA system attached to a waistband, with the capability of delivering both clear and powerful sound. The lightweight body of the main unit, features a slight curvature in its design, and fits perfectly on your waist to allow natural movement that minimizes unit disruption. This product is suited for various situations such as guided tours, sport classes, directing traffic and other security-and-safety-related applications, as well as attracting prospective customers at shows and storefronts.

Dimensions

For more information, please see pdf file Data Sheet and Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Power Source

Alkaline battery (LR6): 6 pieces (9 V DC) or 4 pieces(*1) (6 V DC)
Rechargeable nickel metal hydride (NiMH) battery (HR15/51): 6 pieces (7.2 V DC) or 4 pieces(*1) (4.8 V DC)

Output

6 W (rated) and 10 W (max) when 6 AA batteries (9 V DC) are used.
3 W (rated) and 4 W (max) when 4 AA batteries(*1) (6 V DC) are used.

Battery Life

Voice operation

Approx. 8 hours (when 6 or 4 alkaline batteries are used)
Approx. 7 hours (when 6 or 4 NiMH batteries are used)

AUX stereo input operation (music reproduction)

Approx. 9 hours (when 6 or 4 alkaline batteries are used)
Approx. 9 hours (when 6 or 4 NiMH batteries are used)

Audible Range

Voice operation

Approx. 100m or 320ft (when 6 alkaline batteries or NiMH batteries are used)
Approx. 80m or 260ft (when 4 alkaline batteries(*1) or NiMH batteries are used)

Headset Microphone

Ear-on type, elrectret condenser microphone, sensitivity: -47 dB (0 dB = 1 V/1 Pa, 1 kHz)

Input

MIC : –30 dB(*5), 3 kΩ, 3.5 mm (1/8") monaural mini-jack, phantom power supply.
AUX6 : –10 dB(*5), 2 kΩ, 3.5 mm (1/8") stereo mini-jack (supporting monaural applications

Frequency Response

300 Hz - 14 kHz (deviation: -26 dB)

Communication Method

Bluetooth Ver.4.2

Output Power

Bluetooth Class 2

Operating Range

10 m (32.81 ft)

Protocol

A2DP

Codec

SBC

Belt Length

55 - 120(*8) cm (1.8 - 3.94(*8) ft)

Finish

Front case

ABS resin, black

Rear case

ABS resin, black

Grille

Surface-treated steel plate, black, paint

Belt

Elastic rubber, black

Dimensions

133 (W) x 96 (H) x 222 (D) mm (5.24" x 3.78" x 8.74") (belt excluded)

Weight

Main PA unit (belt included, batteries excluded): 480 g (1.06 lb)
Headset microphone: 50 g (0.11 lb)

Product Details

Power Source

Alkaline battery (LR6): 6 pieces (9 V DC) or 4 pieces(*1) (6 V DC)
Rechargeable nickel metal hydride (NiMH) battery (HR15/51): 6 pieces (7.2 V DC) or 4 pieces(*1) (4.8 V DC)

Output

6 W (rated) and 10 W (max) when 6 AA batteries (9 V DC) are used.
3 W (rated) and 4 W (max) when 4 AA batteries(*1) (6 V DC) are used.

Battery Life

Voice operation

Approx. 8 hours (when 6 or 4 alkaline batteries are used)
Approx. 7 hours (when 6 or 4 NiMH batteries are used)

AUX stereo input operation (music reproduction)

Approx. 9 hours (when 6 or 4 alkaline batteries are used)
Approx. 9 hours (when 6 or 4 NiMH batteries are used)

Audible Range

Voice operation

Approx. 100m or 320ft (when 6 alkaline batteries or NiMH batteries are used)
Approx. 80m or 260ft (when 4 alkaline batteries(*1) or NiMH batteries are used)

Headset Microphone

Ear-on type, elrectret condenser microphone, sensitivity: -47 dB (0 dB = 1 V/1 Pa, 1 kHz)

Input

MIC : –30 dB(*5), 3 kΩ, 3.5 mm (1/8") monaural mini-jack, phantom power supply.
AUX6 : –10 dB(*5), 2 kΩ, 3.5 mm (1/8") stereo mini-jack (supporting monaural applications

Frequency Response

300 Hz - 14 kHz (deviation: -26 dB)

Communication Method

Bluetooth Ver.4.2

Output Power

Bluetooth Class 2

Operating Range

10 m (32.81 ft)

Protocol

A2DP

Codec

SBC

Belt Length

55 - 120(*8) cm (1.8 - 3.94(*8) ft)

Finish

Front case

ABS resin, black

Rear case

ABS resin, black

Grille

Surface-treated steel plate, black, paint

Belt

Elastic rubber, black

Dimensions

133 (W) x 96 (H) x 222 (D) mm (5.24" x 3.78" x 8.74") (belt excluded)

Weight

Main PA unit (belt included, batteries excluded): 480 g (1.06 lb)
Headset microphone: 50 g (0.11 lb)
