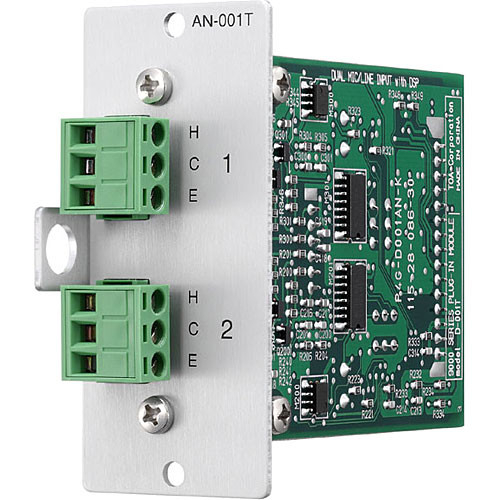

The AN-001T is a plug-in module of 2-channel ambient noise detector designed for use with the 9000 series amplifiers. It automatically adjusts the output volume in response to the change of ambient noise level.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Power Source

+24 V DC, -24 V DC, +6 V DC

Current Consumption

20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)

Input

Sensor input (Ambient noise sensor microphone input): 2 channels, 3 kΩ (when the phantom power is ON)/10 kΩ (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins)

Input Sensitivity

-60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)

Phantom Power

+24 V DC

A/D Converter

24 bit ADC

Sampling Frequency

48 kHz

Ambient Noise Control Function

Sensor input reference level adjustment function
Maximum output signal level control: -15 to 0 dB
Minimum output signal level control: -18 to -3 dB
Sample time setting: 10 s, 15 s, 20 s, 30 s, 1 min, 2 min, 3 min, 5 min
Gain ratio setting (Ambient noise: Output signal level):

Operating Temperature

-10°C to +40°C

Finish

Panel: Aluminum, hair-line

Dimensions

35 (W) x 78 (H) x 91.5 (D) mm

Weight

82 g

Accessory

Removable terminal plug (3 pins) 2
Module mounting screw 2

Option

Ceiling mount microphone: AN-9001

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Power Source

+24 V DC, -24 V DC, +6 V DC

Current Consumption

20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)

Input

Input Sensitivity

-60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)

Phantom Power

+24 V DC

A/D Converter

24 bit ADC

Sampling Frequency

48 kHz

Ambient Noise Control Function

Sensor input reference level adjustment function
Maximum output signal level control: -15 to 0 dB
Minimum output signal level control: -18 to -3 dB
Sample time setting: 10 s, 15 s, 20 s, 30 s, 1 min, 2 min, 3 min, 5 min
Gain ratio setting (Ambient noise: Output signal level):

Operating Temperature

-10°C to +40°C

Finish

Panel: Aluminum, hair-line

Dimensions

35 (W) x 78 (H) x 91.5 (D) mm

Weight

82 g

Accessory

Removable terminal plug (3 pins) 2
Module mounting screw 2

Option

Ceiling mount microphone: AN-9001

Note

Note: Please read description carefully. Do not base your order on the picture presented.
