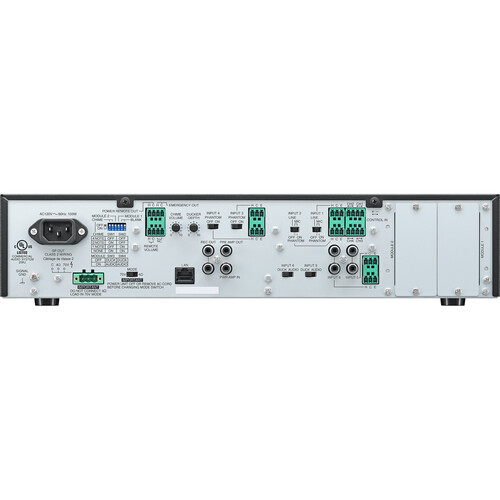

TOA A-824D A-800 Series Mixer Power Amplifiers, 240W

Power Output (W): 240
  • Brand TOA
  • Part # A-824D
  • Model # A-800 Series
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Power Output (W):
Power Output (W): 240

A-824D Includes Only:

  • Toa Electronics A-824D Digital Mixer/Amplifier (1 x 240W, 4 Ohms / 70V)
  • Power Cord
  • 6 x 3-Pin Input Block Connectors
  • 4 x 4-Pin Control Block Connectors
  • 3-Pin Speaker Output Block Connector
  • 4 x Volume Covers
  • Set of Rackmount Ears and Hardware

This digital mixer amplifier provides maximum flexibility with up to eight inputs and up to 240 W of power. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems. Onboard DSP, a sleek appearance, optional MOH output, two 900 series module slots and TOA's legendary quality and reliability makes this a perfect fit for background and foreground music, paging, and noise masking applications.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
ProtectionsPower Supply
Frequency Response50 Hz to 20 kHz +/-3 dB (1/8 Power)
I/O ImpedanceBlock Line/Mic Input:
600 Ohms (Balanced)
RCA Line Input:
10 Kilohms (Unbalanced)
Input LevelBlock Mic:
-60 dB (Balanced)
Block Line:
-20 dB (Balanced/Unbalanced)
RCA Line:
20 dB (Unbalanced)
VCA ControlNone
SNRMain Output:
88 dB (Master Volume Minimum)
76 dB (Master Volume Maximum)
Line Input:
55 dBA (Input 1 to 6)
Audio I/O6 xBlock 3-Pin Line/Mic Input (Detachable)
2 xStereo RCA TS Unbalanced Preamp/Record Output
Digital Audio I/ONone
Network I/O1 xRJ45 Ethernet
Other I/O2 xBlock 4-Pin Control
1 xDE-9/DB-9 Control/RS-232
Speaker Outputs1 xBlock 3-Pin 4-Ohm/70 V Main (Detachable)
Number of Module Slots2
USBNone
Phantom Power24 VDC, Selectable On/Off per Mic Input
BluetoothNone
AC Input Power120 VAC, 60 Hz
AC Power Connector1 xIEC
Display andIndicators1 xLED (Current/Error/Ethernet/Level/Power/Signal/Thermal)
Rackmount Size2 RU (with Included Hardware)
Dimensions16.5 x 3.8 x 12.3" / 419.1 x 96.5 x 312.4 mm
Weight11.5 lb / 5.2 kg
Product Details
ProtectionsPower Supply
Frequency Response50 Hz to 20 kHz +/-3 dB (1/8 Power)
I/O ImpedanceBlock Line/Mic Input:
600 Ohms (Balanced)
RCA Line Input:
10 Kilohms (Unbalanced)
Input LevelBlock Mic:
-60 dB (Balanced)
Block Line:
-20 dB (Balanced/Unbalanced)
RCA Line:
20 dB (Unbalanced)
VCA ControlNone
SNRMain Output:
88 dB (Master Volume Minimum)
76 dB (Master Volume Maximum)
Line Input:
55 dBA (Input 1 to 6)
Audio I/O6 xBlock 3-Pin Line/Mic Input (Detachable)
2 xStereo RCA TS Unbalanced Preamp/Record Output
Digital Audio I/ONone
Network I/O1 xRJ45 Ethernet
Other I/O2 xBlock 4-Pin Control
1 xDE-9/DB-9 Control/RS-232
Speaker Outputs1 xBlock 3-Pin 4-Ohm/70 V Main (Detachable)
Number of Module Slots2
USBNone
Phantom Power24 VDC, Selectable On/Off per Mic Input
BluetoothNone
AC Input Power120 VAC, 60 Hz
AC Power Connector1 xIEC
Display andIndicators1 xLED (Current/Error/Ethernet/Level/Power/Signal/Thermal)
Rackmount Size2 RU (with Included Hardware)
Dimensions16.5 x 3.8 x 12.3" / 419.1 x 96.5 x 312.4 mm
Weight11.5 lb / 5.2 kg
Note

Note: Please read description carefully. Do not base your order on the picture presented.
