Thor Broadcast, H-HYBRID-RF-8, 8 channel HDMI and SDI Clear CATV RF Modulator QAM, ATSC, DVB-T, ISDB-T
Features:

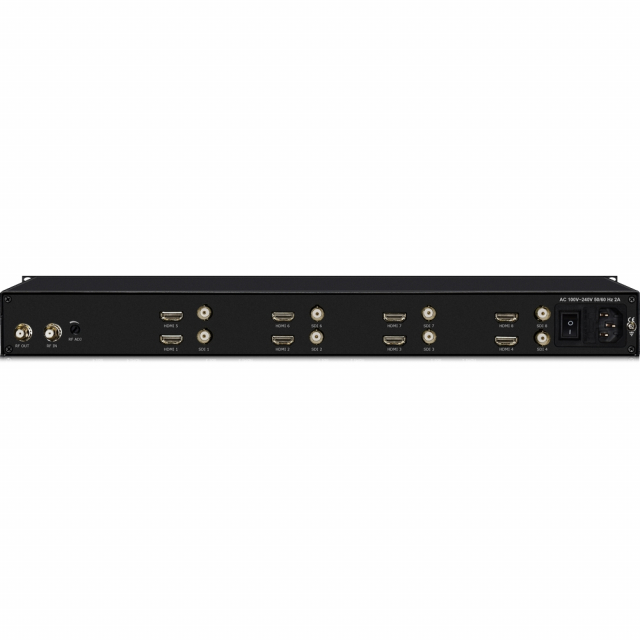

- 8 Independent HDMI and SDI Inputs - (individually selectable for each of the 8 channels you can output)
- HDMI is HDCP compliant for use with any source
- SDI Inputs include support for Closed Caption 708
- Outputs 8 separate Clear CATV RF channels QAM / ATSC - 8VSB / DVB-T / ISDB-T (selectable in the GUI)
- RF output on each of the 8 RF channels can be individually set to a frequency and modulation standard (2 on QAM, 3 on ATSC, 4 on ISDBT, etc)
- DVB-C Annex A and B - QAM 64, QAM 256
- Supports full HD video up to 1080p/59.94/60, other resolutions included are 1080i, 720p, 480i also supported
- Low Latency supported; 3 different latency settings - 100/500/1000ms
- Video encoding rate up to 25Mbps
- MPEG2 Video Encoding
- Dolby AC3 and MPEG1 Layer 2, and AAC audio encoding
- VCT - Virtual channel number and Name supported
- Frequency - 50Mhz to 900Mhz
- NMS web interface controllable
- Easy to use web Gui Interface (setup and status)
- LED's Status on front panel shows HDMI in blue or SDI in green for easy to see video detect link
- LCD Display and front panel control buttons for setup, control and status
- Powerful processing with the best MPEG2 video encoding chip
- First High Density HDMI and SDI input modulator on the market
- Lowest cost per channel in perfect HD resolution for any application from Live Sports, House of Worship, Concerts, Theaters, Malls, Airports, Hotels, Military, Private Enterprise
Up to 8 Channels of HDMI or SDI inputs allow you to select either or in the options menu on the simple and creative GUI. This modulator by Thor has independent input cards for flexibility for Digital Modulation because it eliminates the need for HDMI to SDI or SDI to HDMI converters. Simply select which source you want to use and input the channel frequency creating an automated encoding head end device that can clean up your head end and modulation distribution infrastructure.
Each channel can individually be selected as an HDMI or SDI input, it could be switched on the fly using front panel buttons or Thor's dynamic proprietary Web interface. Each of the 8 channels of RF output can be set totally independent as a frequency AND modulation standard. For example, you can input 4 channels as HDMI and set to QAM output and then input 4 channels of SDI and as ATSC output. This flexibility that hasn't been seen before on the market creating a whole generation of standard for encoder modulation products
The THOR HYBRID Modulator has an NMS port and LCD display with simple D-Pad buttons for control and easy setup on the fly. It includes and supports the majority of modulation standards found in the world; For example: Clear QAM Annex A and Annex B, ATSC-8VSB, DVB-T, and ISDB-T. The Hybrid modulator supports MPEG2 video encoding up to 25Mbps/channel, Audio AC3 or MPEG1 Layer 2, and AAC, Thor's world-famous, low Latency, and VCT -Virtual Channel Numbers for increased for flexibility. Each CATV RF channel can be set individually, so it does not have to be in a linear 8ch block, feel free to spread out your custom RF channels all over the existing RF spectrum in your modulation lineup.
