Output/Input:: Output/Input: 1Ch HDMI to DVB-S2

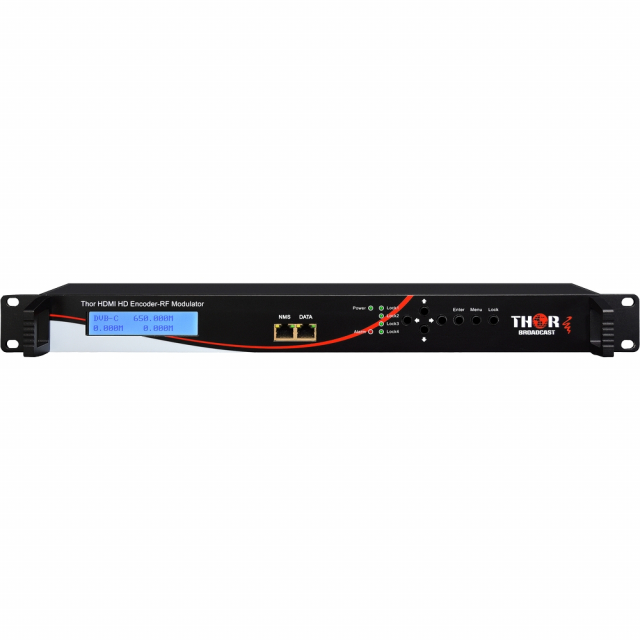

Thor Broadcast, H-1HDMI-DVBS2, 1Ch HDMI to DVB-S2 Satellite Encoder Modulator

Features:

MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
HD/SD-SDI, HDMI, YPbPr, CVBS, AES inputs cards
ASI input for external TS pass or multiplexing with encoded video and audio
Support DVB-S /S2 /S2XRF (IF Optional) output
ASI output
LCN support (Logical Channel Number)
Output Frequency: 950-2150MHz; IF: 50-200MHz
QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations

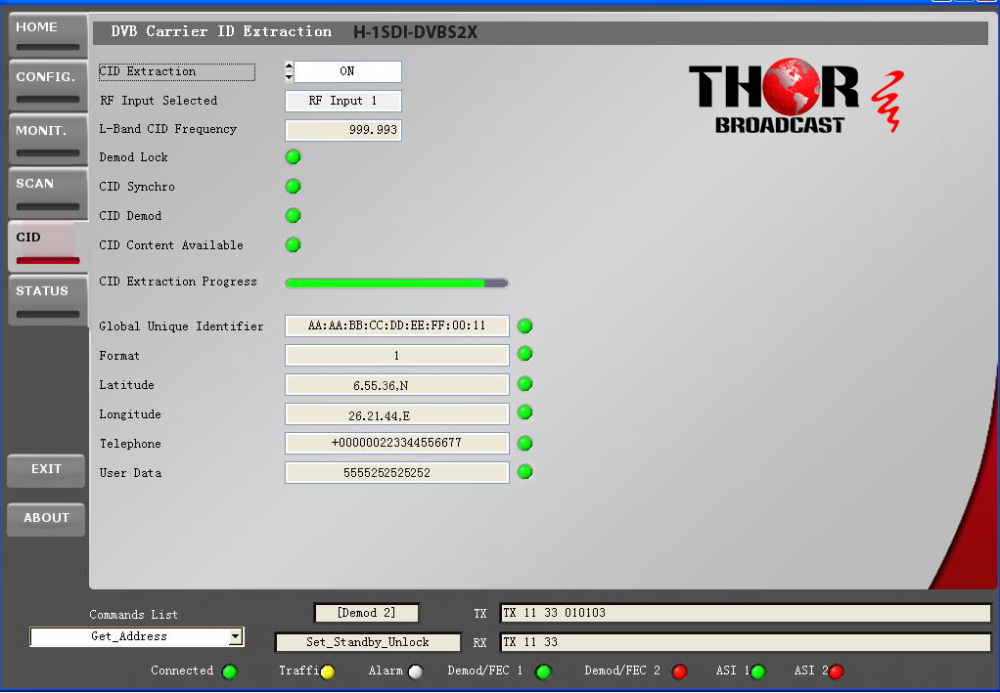

Support RF CID setting
Low latency
Support BISS function
Support 10MHz reference clock on the RF output or BNC
Support Web NMS and front panel LCD and buttons control

Encoding blades design makes it convenient to change encoding module between any video formats HD SDI, HDMI, YPbPr, CVBS, AES . It is also 1 channel ASI input for external TS pass or multiplexing.

It outputs DVB-S/S2/S2X RF (IF Optional - model specific) and ASI. It supports currently required CID Carrier ID

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Input	SDI or HDMI or YPbPr or CVBS up to 1080P60
Resolurtion :	1280x720P 60 / 59.94 / 50 Hz1920x1080I 60 / 59.94 / 50 Hz19201080_60P, 19201080_50P, 19201080_60i, 19201080_50i, 1280720_60p, 1280720_50P720480_60i, 720576_50i
Video Codecs	MPEG-2 HD 1.5-19.5 MbpsH.264 HD 0.8-19.5 Mbps
Audio Codecs	MPEG-1 Layer IIMPEG-2 AACMPEG-4 AAC AC3 Dolby Audio Dolby pass through
Audio Sample Rate	48 kHz
Audio Bit Rates	64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Output	DVB-S/S2 /S2X RF (IF Optional) output; ASI output DVB-S/S2 Modulation Section DVB-S QPSK: FEC 1/2, 2/3, 3/4, 5/6, 7/8DVB-S2QPSK: FEC 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK FEC 3/5, 2/3, 3/4, 5/6, 8/9, 9/10APSK: 2/3, 3/4, 4/5, 4/6, 8/9, 9/1032APSK : 3/4, 4/5, 5/6, 8/9, 9/10DVB-S2XQPSK : 13/45. 9/20, 11/208PSK : 23/36, 25/36, 13/1816APSK: 26/45, 3/5, 28/23/36, 2532APSK: 32/45, 11/15, 7/98PSK-L :5/9, 8/15, 1/2, 3/5, 2/332APSK-L 2/3RF output: 950.00-2150.00 MHz, 10Khz step IF output: 50-200MHz (MODEL SPECIFIC)Symbol rate: 0.05-20.0MspsRoll Off: 0.35, 0.25, 0.2Output level: -10db~-41.5db
RF Frequency Range	H-XX-DVBS2X RF output: 950.00-2150.00 MHz, 10Khz stepH-XX-DVBS2X-IF with IF (50-200mhz) RF output
RF Power Level	Output level: -10db~-41.5db
DVB-ASI Output	BNC Connector: 1-60 Mbps
DVB-ASI Input	BNC Connector: 1-120 Mbps Programs Selected by PID Programs Muxed to all Outputs
IPTV Output (Optional)	MPEG-TS MPTS over UDPUnicast and Multicast Supported
Power Input	100-240 VAC Auto Switching~ 20 W
Dimensions	19 x 17 x 2 Inches
Weight	9 Pounds
Operating Temperature	32-110 F
Constellation	DVB-S - QPSKDVB-S2: QPSK, 8PSK, 16APSK, 32APSKDVBS2X :QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSL-L, 32APSK-L
Outer coding	DVB-S - RS CodingDVB-S2: BCH CodingDVBS2X: BCH Coding
Inner coding	DVB-S - Convolution Symbol Rate : 0.5-45MspsDVB-S2: LDCP CodingDVBS2X: LDCP Coding
Symbol Rate	05-45Msps
