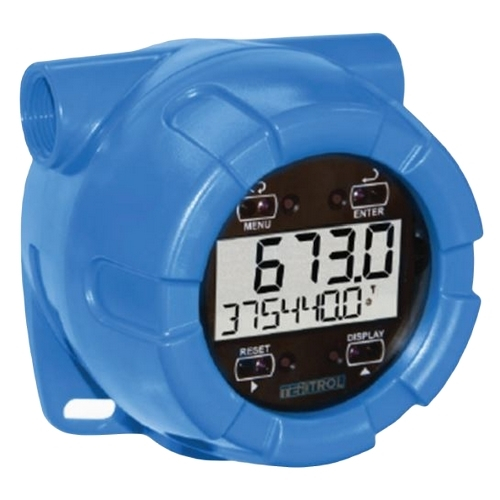

| Display | Top: Five digits (0 to 99,999), 0.7″ (17.8 mm) high, 7-segment, automatic lead zero blanking. Bottom: Seven characters, 0.4″ (10.2 mm) high, 14-segment automatic lead zero blanking. Symbols: Total, total, battery power/low battery, high & low alarm, password lock, and SafeTouch button sleep mode/disable. |
| Display Assignment | Top Display: Rate or total; Bottom Display: Combinations of rate, total, total, units, and custom tag. |
| Backlight | White LED, 10-sec auto-off when battery-powered. Backlight deactivated below temperature ~ -20°C |
| Display Update Rate | Ambient >-20°C: 1 Update/Second. Ambient< -20°C: 1 Update/10 Seconds. Note: Update is dependent on gate settings |
| Display Orientation | The display may be mounted at 90° increments up to 270° from the default orientation |
| Over Range | Display flashes 99,999 |
| Programming Method | Four SafeTouch through-window buttons when the cover is installed. Four internal push buttons when the cover is removed. |
| Recalibration | Calibrated at the factory to read frequency in Hz. No recalibration required |
| Max/Min Display | Max/Min readings reached by the process are stored until reset by the user or until power to the meter is cycled. |
| Password Menu | Three programmable password selections can be used for the following: restrict modification of settings, prevent resetting the total or total without the password, or permanently lock out the ability to change or reset the total or any grand total-related settings(making a non-resettable total). |
| Non-Volatile Memory | All programmed settings and total are stored in nonvolatile memory for a minimum of ten years if power is lost. |
| Power | 9-30 VDC, 2.2 W max; 4-20 mA Output Powered, 30 VDC max; battery power; 9-30 VDC power with battery backup; 4-20 mA Output Powered with Battery Backup. |
| Battery | 3.6 V Primary Lithium (Li-SOCl2), non-rechargeable Model PDABAT36C. Expected service life & recommended replacement interval is dependent on the operating conditions. |
| Isolation | - All models: 500 V opto-isolated input-to-power/output with isolated input enabled.
- PD6730-APA: 500 V input/power-to-output
- PD6730-BMA: 500 V input/power-to-output
- PD6730-BTA: 500 V input-to-output.
- Note: Requires separate output supply
|
| Data Logging | Up to 1024 records, recorded 4/day at specific times or at defined time intervals. The record contains the date, time, rate, total, total, and log number. |
| Operating Temperature Range | -40 to 75°C (-40°F to 158°F)total). |
| Storage Temperature Range | -40 to 75°C (-40°F to 158°F) |
| Relative Humidity | 0 to 90% non-condensing |
| Connections: | Screw terminals accept 12 to 22 AWG wire |
| Enclosure | - NEMA 4X, IP65 plastic field enclosure.
- Color: grey.
- Material: Polycarbonate with UV Stabilizer.
- Three 3/4" NPT threaded conduit openings.
- Two 3/4" NPT plastic conduit plugs, with 1.29″ wrenching flats and a screwdriver slot, are included.
|
| Mounting | May be mounted directly to the conduit. Two slotted flanges for wall mounting or NPS 1-1/2" to 2-1/2" or DN 0.13 to 0.21ft pipe mounting. |
| Overall Dimensions | 5.67″ x 5.25″ x 4.18″ (W x H x D) (144 mm x 133 mm x 106 mm) |
| Weight: | 1.65 lbs (26.4 oz, 0.75 kg) |
