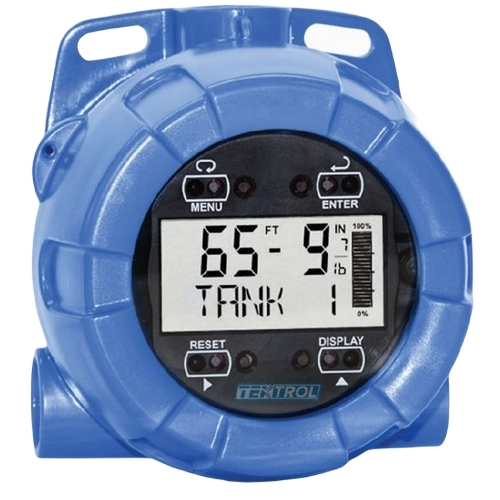

Tek-Trol, Tek-LCD 7801A-0K1, NEMA 4X Loop-Powered Feet and Inches Level Indicator

Features:

Display Level in Feet & Inches
4-20 mA Input Loop-Powered
Programmable 1/8 or 1/16 Inch Display
20-Segment Tank Level Indicator
Lower Display for Tag, Volume, or Percent
SafeTouch^® Through-Window Button Programming
Open Collector Alarm Output
Loop-Powered or External DC-Powered Backlight Standard
Plastic NEMA 4X, IP65 Enclosure

Applications:

Live Input Calibration
Multi-Point Linearizer
Square Root Extraction
Programmable Exponent

The Tek-LCD 7801A is one of Tek-Trol's most advanced and feature-packed plastic, field-mounted, loop-powered indicators designed specifically for level applications that require a feet and inches display. The Tek-LCD 7801A can indicate up to 399 feet, 11, and 15/16 (or 7/8) inches. The Tek-LCD 7801A is built in a NEMA 4X and IP65-rated plastic enclosure which can stand up to even the harshest environmental conditions. It features a dual-line display that can be easily scaled in the field for any 4-20 mA analog input. Two features that make the Tek-LCD 7801A stand out are its wide viewing angle display and SafeTouch^® through window buttons. These buttons allow the Tek-LCD 7801A tank-side indicator to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.

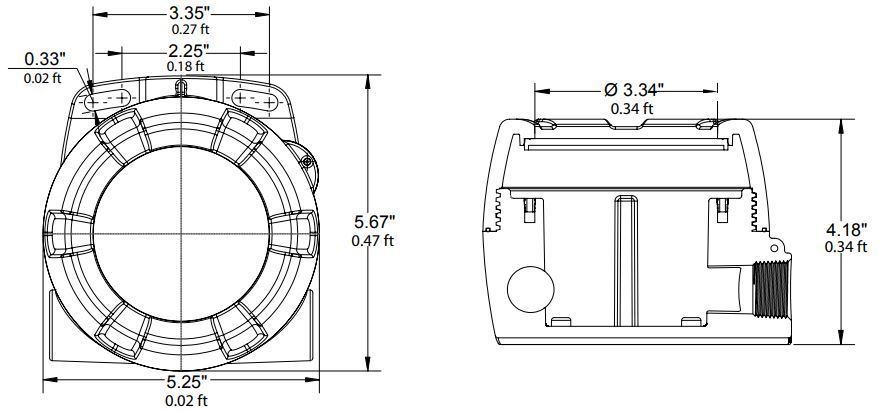

Dimensions:

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for Tek-Trol items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Display

Feet and Inches display: 0.60″ (15.2 mm) high, 0 to 399 FT - 11 15/16 IN with 1/16 or 1/8 fraction display. Lower 7-digit display: 0.4″ (10.2 mm) high, 14-segment alphanumeric characters, display tag, volume 0 to 9999999, and/or 0-100 percent.
Tank Level Indicator: 20 segments, F (Full) and E (Empty)
Alarm Indication: HI and LO; Backlight: White, loop or DC powered

Display Assignment

Lower display may be assigned to a custom unit or tag, volume, volume and tag, percent height, percent height and tag, or off.

Display Update Rate

Ambient > -25 °C: 2 Updates/Second.
Ambient < -25 °C: 1 Update/5 Seconds

Externally Powered Backlight

Voltage Range: 9-36 VDC

Over Range

Level display flashes to 399 FT 11 15/16 IN Volume display flashes 9999999 if over range

Under Range

Display flashes -999999

Programming Method

Four SafeTouch through-window buttons when cover is installed. Four internal pushbuttons when cover is removed

Noise Filter

Programmable low (LO), medium (MED), high (HI), or off (OFF)

Recalibration

Recalibration is recommended at least every 12 months

Password

Programmable password restricts modification of programmed settings.

Non-Volatile Memory

All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

Normal Mode Rejection

64 dB at 50/60 Hz

Operating Temperature Range

-40 °C to 75 °C

Storage Temperature Range

-40 °C to 75 °C

Relative Humidity

0 to 90% non-condensing

Connections

Screw terminals accept 12 to 22 AWG wire

Enclosure

NEMA 4X, IP65 plastic field enclosure.
Color: gray.
Material: Polycarbonate with UV Stabilizer.
Three 3/4" NPT threaded conduit openings.
Two 3/4" NPT plastic conduit plugs, with 1.29″ wrenching flats and a screwdriver slot, are included

Mounting

May be mounted directly to the conduit. Two slotted flanges for wall mounting or NPS 1-1/2" to 2-1/2" or DN 40 to 65 mm pipe
mounting.

Overall Dimensions

5.67″ x 5.25″ x 4.18″ (W x H x D) (144 mm x 133 mm x 106 mm)

Weight

1.65 lbs (26.4 oz, 0.75 kg)

Notes
