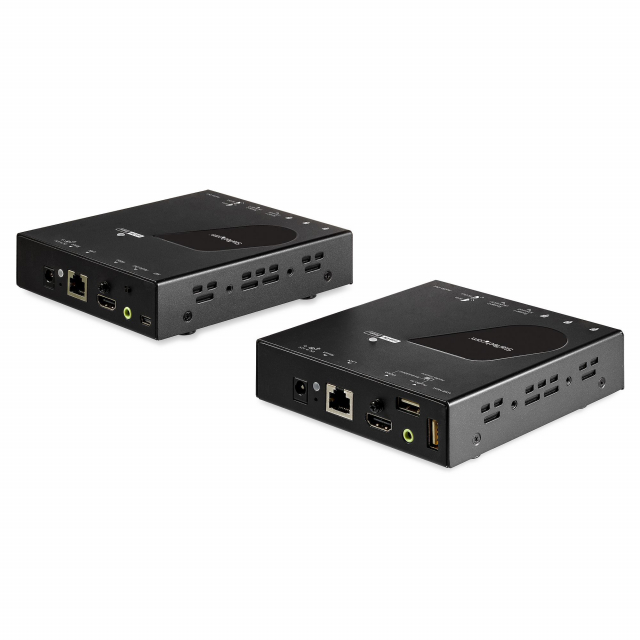

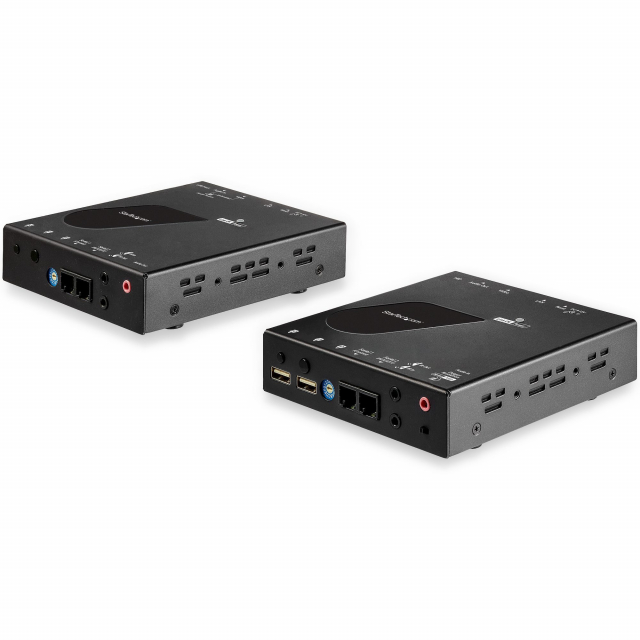

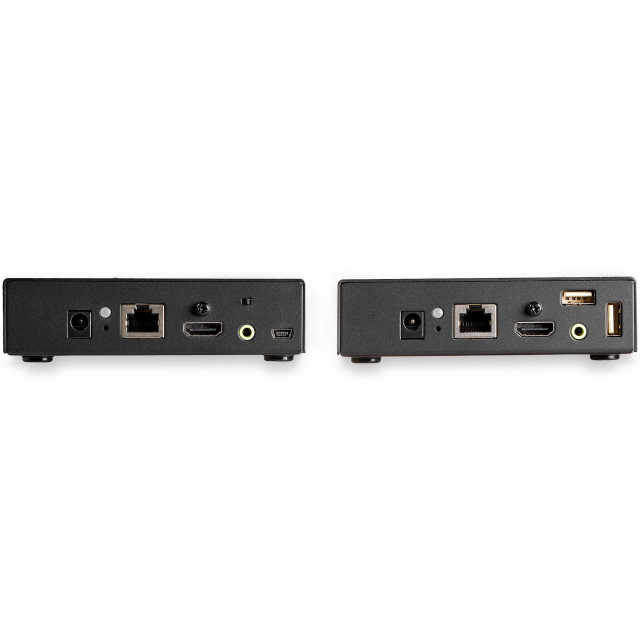

StarTech, SV565HDIP, HDMI KVM Extender over IP Network K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable 330 ft

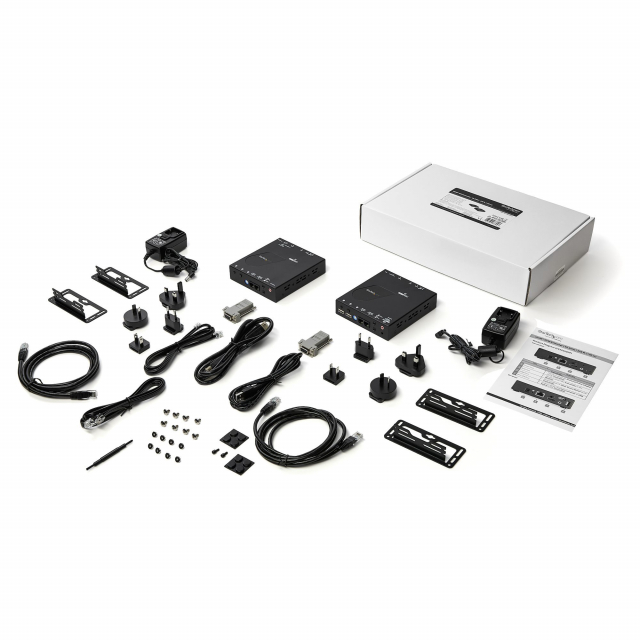

SV565HDIP Includes Only:
- 1 - Transmitter Unit
- 1 - Receiver Unit
- 2 - Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
- 2 - Mounting Kits
- 2 - Ethernet Cables
- 2 - DB9 Serial Adapters
- 2 - RJ11 Serial Cables
- 1 - HDMI Cable (1.2 m)
- 1 - USB Cable (1.5 m)
- 8 - Rubber Feet
- 1 - Plastic Screwdriver
- 1 - Quick-Start Guide
Features:
- Remote Access: HDMI KVM extender over IP controls a KVM switch/console or PC from up to 328 ft (100 m) over Cat5e/6 Ethernet or via IP-enabled LAN for unlimited range
- 4K Video Quality: HDMI transmitter and extender kit supports ultra HD resolutions up to 3840 × 2160 (4K) at 30Hz; includes mounting hardware
- Advanced Audio & Video: EDID passthrough transfers display capabilities to video source for compatibility; Digital 7.1 surround audio over HDMI delivers theatre-grade sound
- Video Wall Support: Connect multiple receivers (sold separately) to distribute HDMI signals to multiple remote displays or combine sources to create a 9×9 video wall; configuration via intuitive GUI
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse. The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz. With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure. The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN. The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays. For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
