StarTech, PEX8S1050LP, 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, Low Profile Serial DB9 Controller/Expansion Card

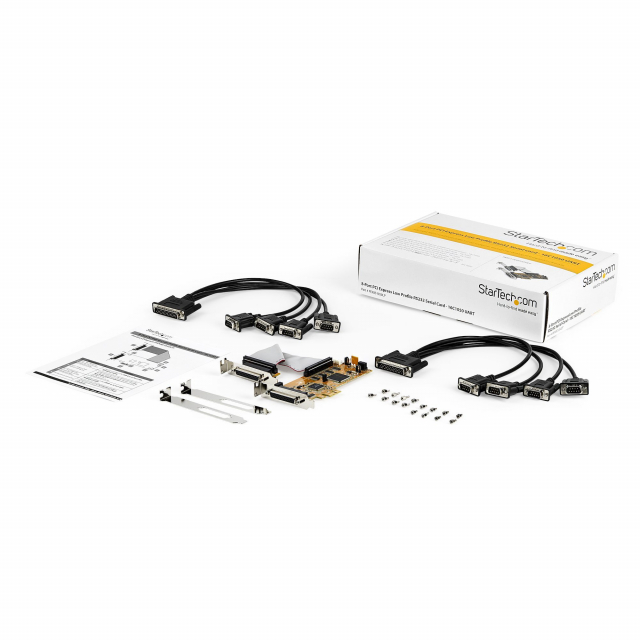

PEX8S1050LP Includes Only:
- 1 - PCIe Serial Card

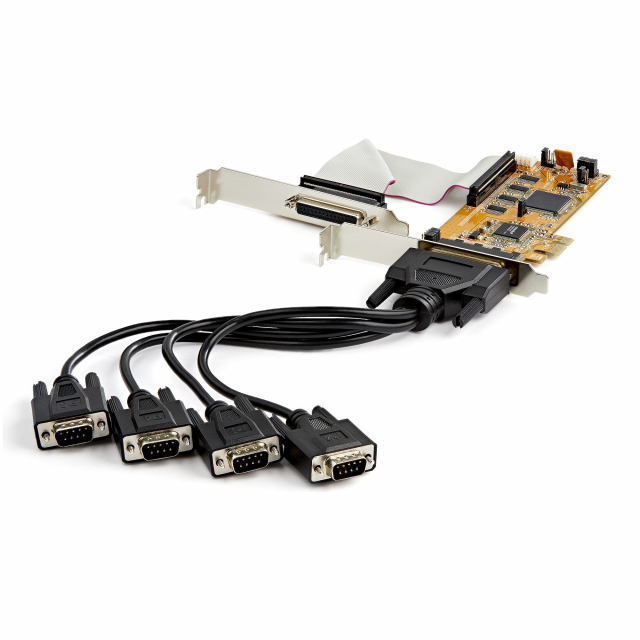

- 2 - 1 ft [30 cm] DB44 to 4-Port DB9 Break-out Cables
- 2 - Low Profile Brackets (Installed)
- 2 - Full Profile Brackets
- 1 - Quick-Start Guide
- 8 - Optional DB9 Connector Hex Nut Pairs
Features:
- 8 port serial card: serial controller card with 16c1050 uart based on the systembase sb16c1058pci, with 15kv esd, 8× db9 ports, bi-directional rs232 speeds up to 921.6kbps per port and 256 byte fifo buffer; an upgrade to popular card pex8s950lp
- Optional configurable power: multiport serial card provides 12v/5v, or none on pin 9 with up to 3a total shared; two (1×db44 to 4×db9) breakout cables included; hex nuts included for optional screw or nut db9 interface
- Windows only: two low profile brackets for pci-e 1x card; fully compliant with pci express base specifications, revision 1.0a/1.1; supports windows (including xp and up) and windows server (2003 and up); for low profile desktop/servers
- Versatile applications: pci express rs232 serial adapter card for point of sale terminals, plcs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope

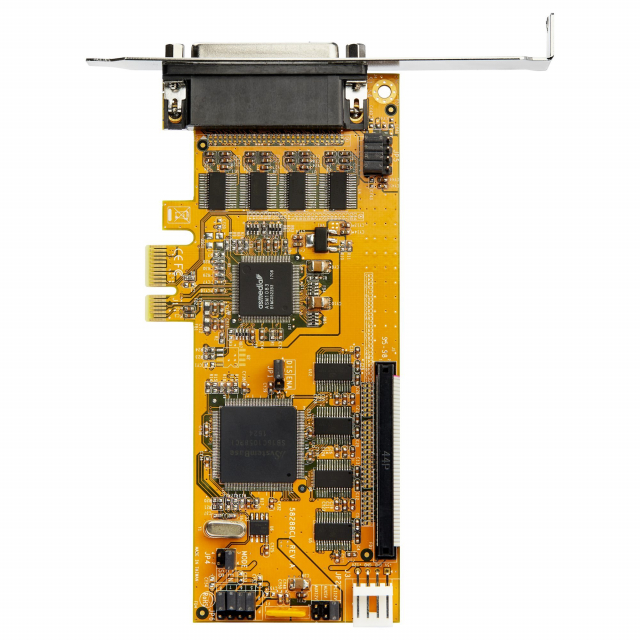

- Tech specs: system base sb16c1058pci chipset; 16c1050 uart compatible; 8× 9-pin d-sub ports; max baud 921.6kbps per port; 256 byte fifo; none/even/odd parity modes; 5/6/7/8 data bits; rs-232; 2× low profile brackets installed (full profile brackets included)

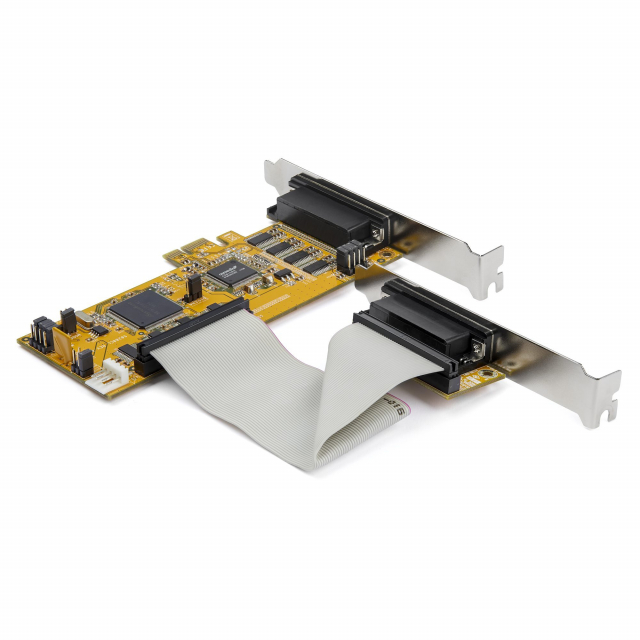

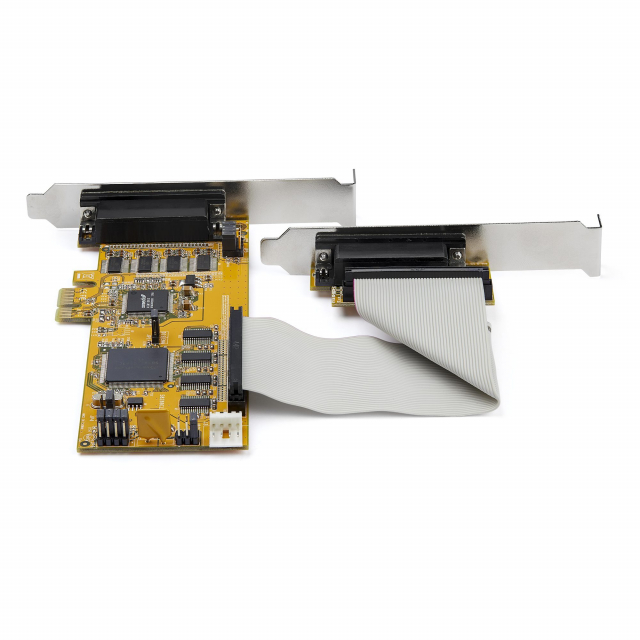

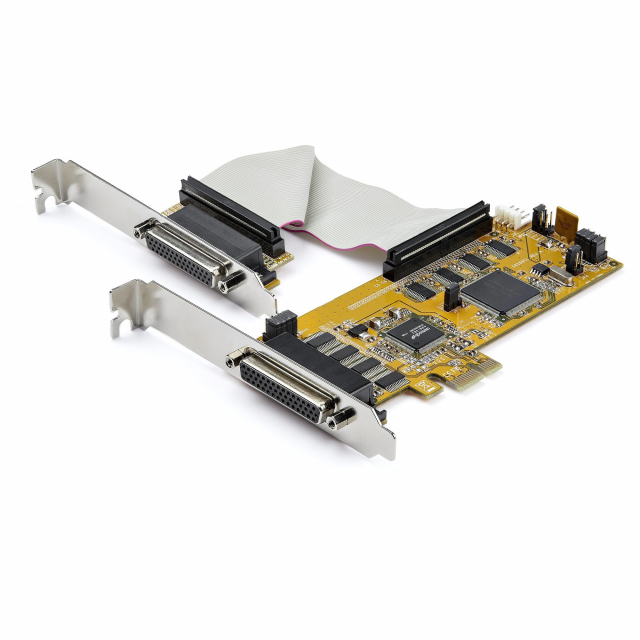

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors. The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
