StarTech, PEX8S1050, 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, Multiport Serial DB9 Controller/Expansion Card

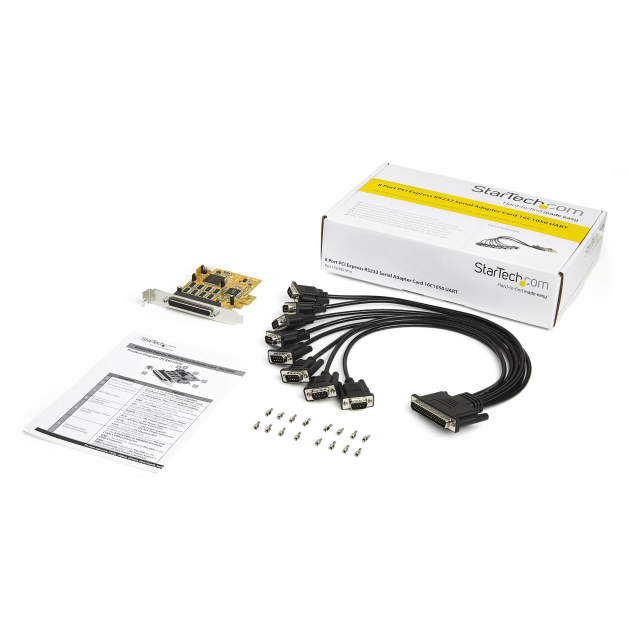

PEX8S1050 Includes Only:
- 1 - PCIe Serial Card

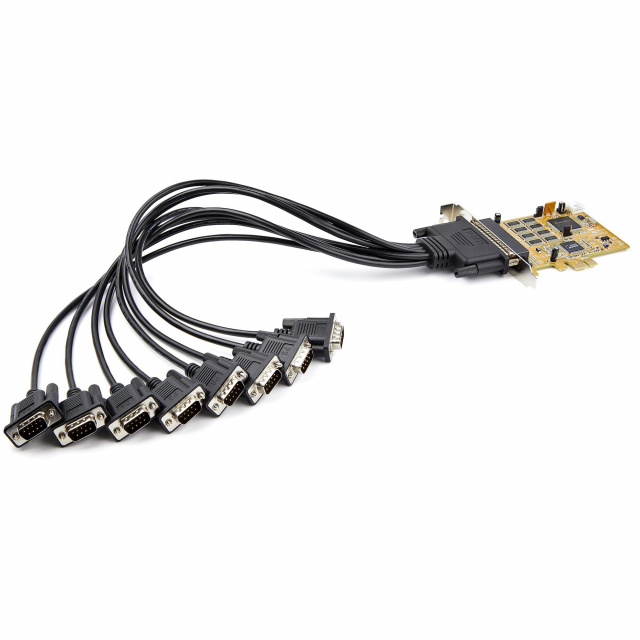

- 1 - 18 in [48 cm] DB62 to 8 Port DB9 Breakout Cable

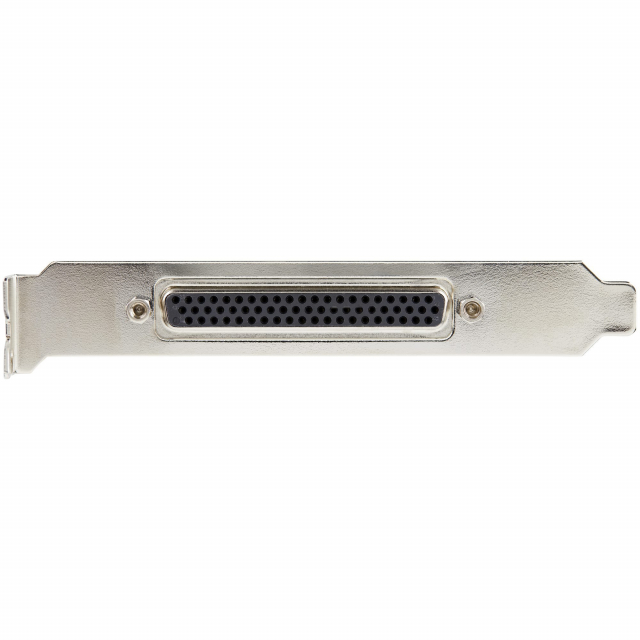

- 1 - Full Profile Bracket (Installed)
- 1 - Quick Start Guide
- 8 - Optional DB9 Connector Hex Nut Pairs
Features:

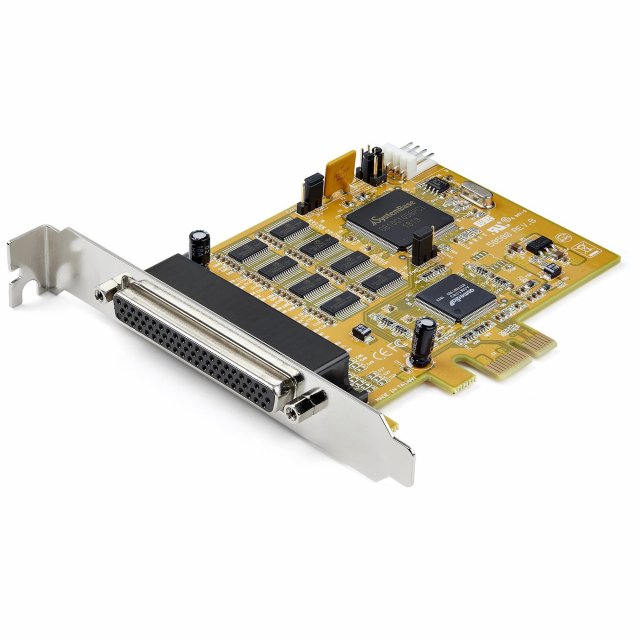

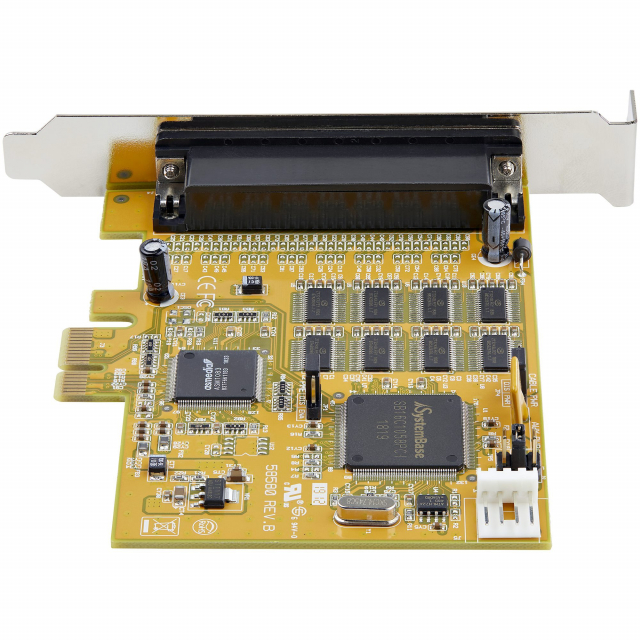

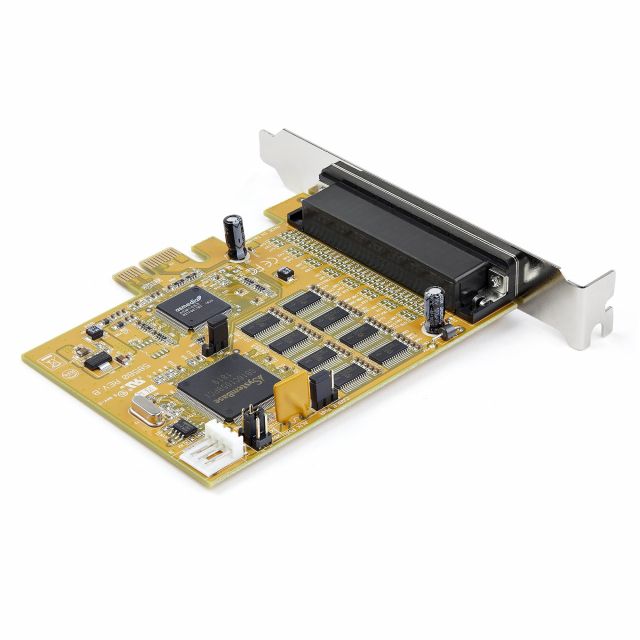

- 8 port serial card: serial controller card with 16c1050 uart based on the systembase sb16c1058pci, with 15kv esd, 8x db9 ports, bi-directional rs232 speeds up to 921.6kbps per port and 256 byte fifo buffer; upgraded version of popular card pex8s952
- Optional configurable power: multiport serial card provides 12v/5v, or none on pin 9 with up to 3a total shared; 18"/48cm db62 to 8x db9 breakout cable included; hex nuts included for optional screw/nut db9 interface
- Windows only: full profile pci-e 1x card and fully compliant with pci express base specifications, revision 1.0a/1.1; supports windows (including xp and up) and windows server (2003 and up); for standard profile desktop/servers
- Versatile applications: pci express rs232 serial adapter card for point of sale terminals, plcs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
- Tech specs: system base sb16c1058pci chipset; 16c1050 uart compatible; 8x 9-pin d-sub ports; max baud 921.6kbps per port; 256 byte fifo; supports windows only; none, even, or odd parity modes; 5/6/7/8 data bits; rs-232 protocol; standard profile bracket
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
