| Connector Type(s) | - 2 - HDMI (19 pin)
- 2 - DisplayPort (20 pin)
- 1 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
- 1 - USB 2.0 A (Fast-Charge, 4 pin)
- 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
- 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
- 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
- 2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
- 1 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA)
- 1 - microSD
- 1 - SD / MMC
- 1 - RJ-45
|
| Host Connectors | 1 - Thunderbolt 4 (USB 4.0) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Humidity | 0% to 95% (non-condensing) at 25°C |
| 4K Support | Yes |
| Fast-Charge Port(s) | Yes |
| Displays Supported | 4 |
| Audio | Yes |
| Interface | Thunderbolt 4 |
| Bus Type | Thunderbolt 4 |
| Compatible Lock Slot | - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
|
| Industry Standards | - Thunderbolt 4
- USB 3.2 Gen 2 10Gbps
- HDMI 2.1
- DisplayPort 1.4
- Secure Digital (SD) 4.0 UHS-II
- 2.5GBASE-T / 1000BASE-T / 100BASE-T / 10BASE-T
- USB Power Delivery 3.0
|
| Chipset ID | - Intel - JHL8440
- Cypress - HX3PD
- Parade - FL5801
- Realtek - RTL8156BG
- Genesys Logic - GL3231S
- Realtek - ALC4030U
- Realtek - RTD2188
- Cypress - CCG5
- TI - TPS2546
|
| LED Indicators | - 1 - Power Button LED (Green): Illuminates When the Dock is Connected to a Power Source and Powered On
- 1 - LAN Port - Network Status LED (Green): Illuminates to Indicate an Ethernet Link is Active
- 1 - LAN Port - Network Activity LED (Amber): Blinks to Indicate Network Traffic
|
| Wake On Lan | Yes |
| Maximum Data Transfer Rate | 40Gbps |
| Maximum Digital Resolutions | - Single Display: up to 7680 x 4320 60Hz
- Dual Display: up to 2× 3840×2160p 60Hz
- Triple Display: up to 3× 3840×2160p 60Hz
- Quad Display: up to 4× 3840×2160p 60Hz
Video performance depends on host computer capabilities. Some manufacturers disable DSC reducing video performance. |
| Type and Rate | Thunderbolt 4 - 40 Gbit/s |
| UASP Support | Yes |
| Supported Charging Outputs | BC 1.2 (1.5A) |
| Compatible Networks | 2.5G/1G/100Mbps/10Mbps |
| PXE | Yes |
| Full Duplex Support | Yes |
| MTBF | 10,000 Hours |
| Color | Space Gray |
| Product Height | 1.4 in [3.4 cm] |
| Product Length | 3.8 in [9.6 cm] |
| Weight of Product | 7.1 oz [200.0 g] |
| Product Width | 8.3 in [21.0 cm] |
| Material | Plastic |

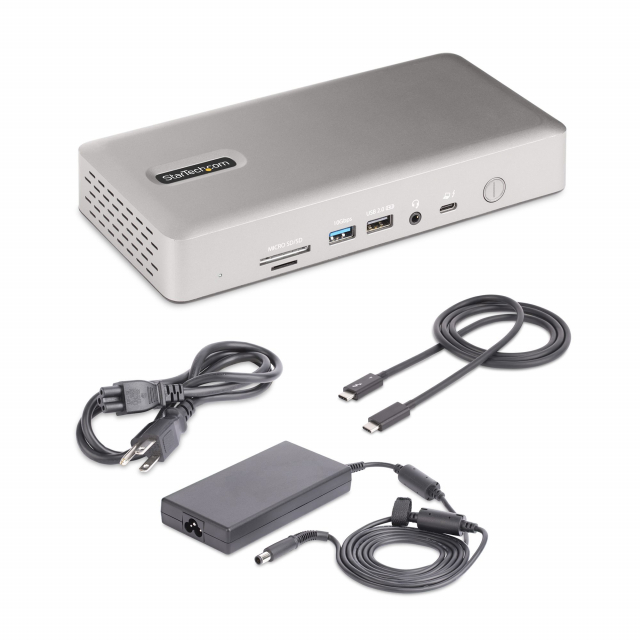

| Power Source | AC Adapter Included |
| Input Voltage | 110V-240V AC |
| Input Current | 2.5 A |
| Output Voltage | 20V DC |
| Output Current | 9 |
| Center Tip Polarity | Positive |
| Plug Type | CP (OD:7.4/ID:5.1/CPD:0.6) |
| Power Consumption (In Watts) | 180W |
| OS Compatibility | - Windows 11
- Windows 11 ARM
- Windows 10
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
|
| System and Cable Requirements | - This Dock can function with Thunderbolt 4, USB4 or USB-C host ports. For maximum performance a Thunderbolt 4 or USB4 port is recommended
- The docking station is compatible with Thunderbolt 4/USB4 Windows laptops, Thunderbolt 4 M1/M2/M3 Max/Pro MacBooks, and Thunderbolt 3 M1/Intel MacBooks (macOS 11 Big Sur or higher)
- DisplayPort Video Output ports do not support the use of passive DisplayPort Adapters
|
| Note | - USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps)
- Jumbo Frames are no longer supported in macOS
|
