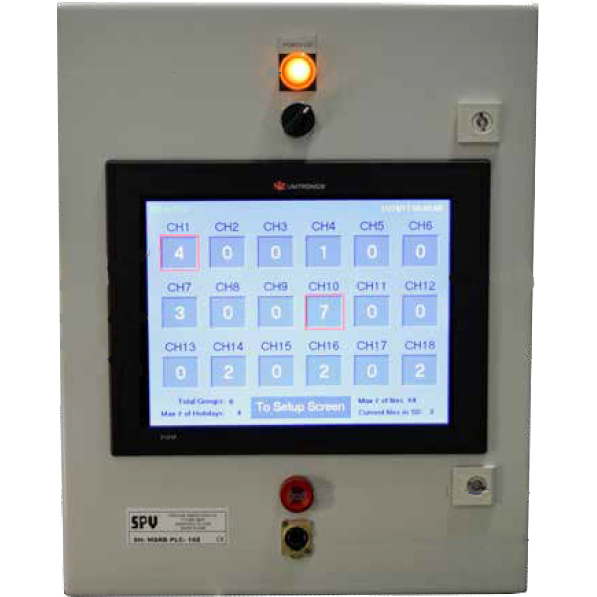

SPY MSRBPLC Multi-Station Rebar System, PLC Version

SPY Inspection Equipment, MSRBPLC, In Plant Multi-Station Rebar System, 3 Channel, PLC Version

MSRBPLC Includes Only:

• 1 - MSRBPLC Unit
• 1 - Power Cord

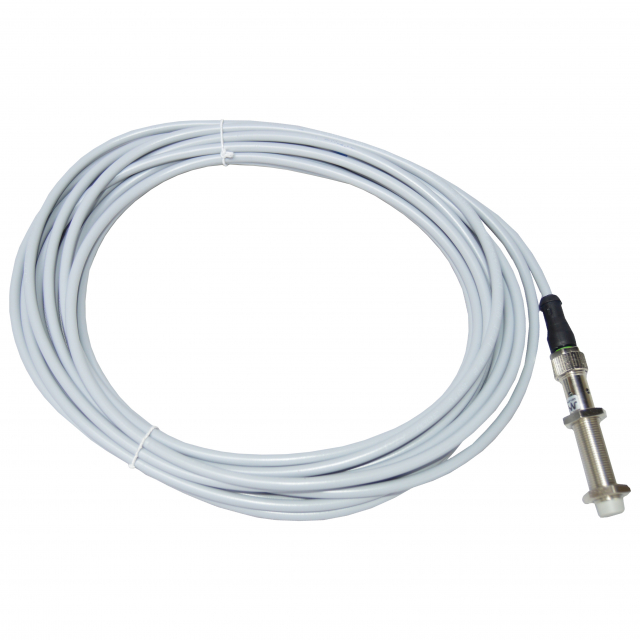

• 1 - Inductive Sensor
• 1 - Operating Instruction
• 1-Certificate of Calibration traceable to NIST

Features:

• Certified NEMA Enclosure
• 0-20 Mils (0 - 500 μm) for Paints and Epoxy Paint Coatings
• Digital Touch Screen Display (screen size may vary due to # of channels)
• Audible Horn
• Ethernet Connector
• SD Card
• Inductive Sensor

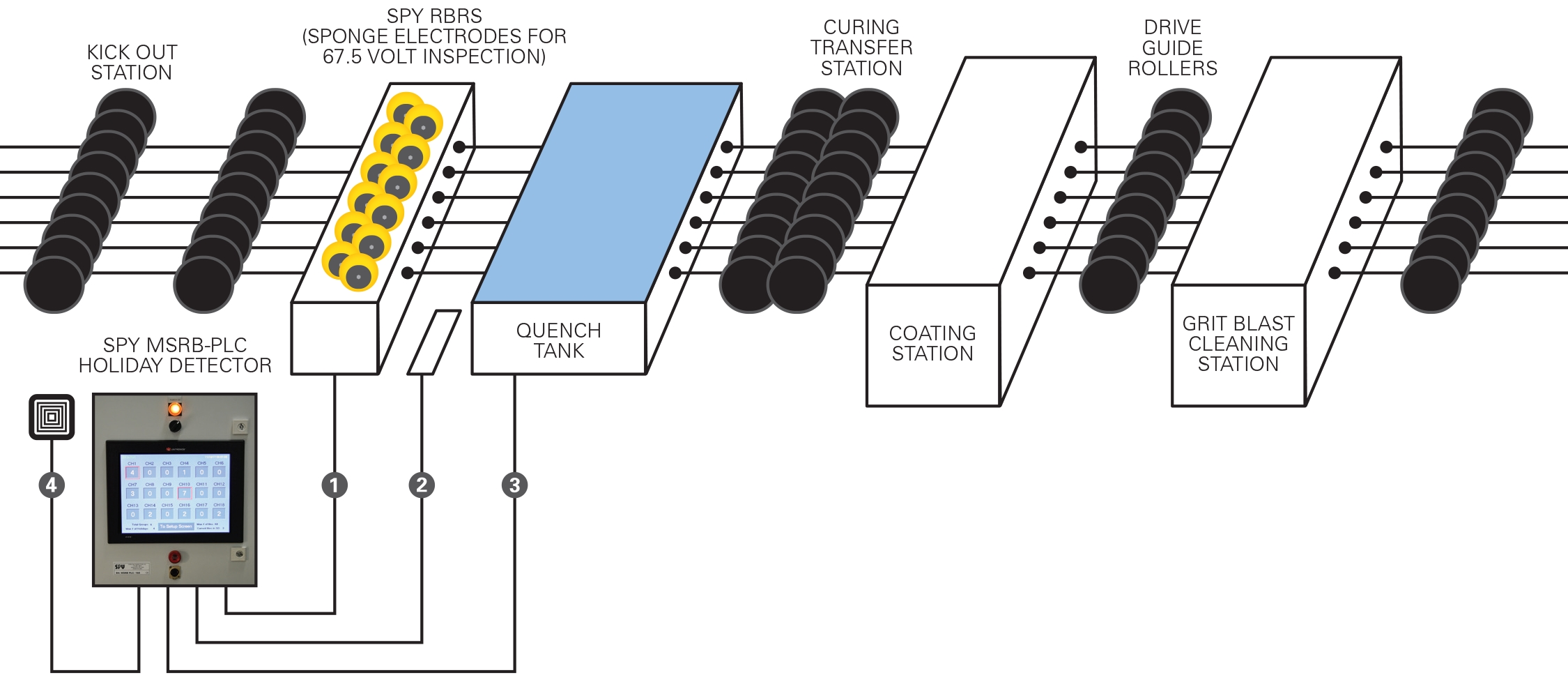

The MSRB-PLC rebar holiday detection system uses an inductive sensor to sense the approach of a batch of freshly coated rebar after the rebar exits the quench tank which then activates the MSRB-PLC Holiday Detection System to prepare for the rebar batch to pass through the dual-roller wet sponge electrodes (RBRS). Moisture from the sponge electrodes conducts a low inspection voltage (67.5 Volts) to each coated rebar which allows the MSRB-PLC System to detect any holiday (defect) in the rebar coating. The PLC allows the user to set the system to count how many holidays per channel (each rebar). The MSRB-PLC System can alarm (Audible/Visual) at any threshold the user wishes to set. In addition, the user has the flexibility to gather test data via the provided Ethernet connection or SD Card.
