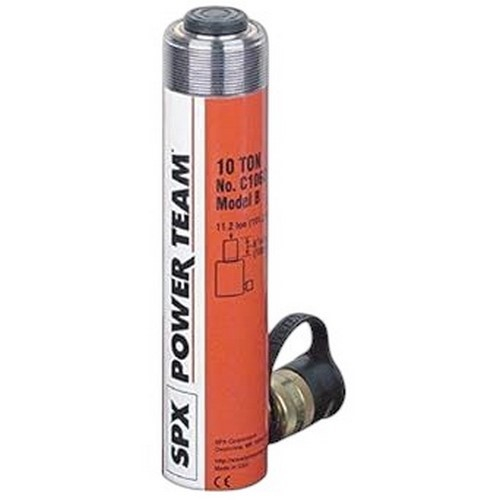

Buy SPX Power Team C106CBT, 10 Ton 6-1/8" Hydraulic Ram Cylinder

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Load Capacity (Ton) x Stroke Size (in):: Load Capacity (Ton) x Stroke Size (in): 10 x 6-1/8

Features:

Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting.
9796-3/8" NPTF female half coupler is standard with each cylinder. Oil port threads are 3/8" NPTF.
Removable threaded rod cap.
Factory accessories do not de-rate tonnage.
Complies with ANSI / ASME B30.1 Safety Standards.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Retracted Height (in. [mm])	11.50 [292,1]
Extended Height (in. [mm])	17.63 [447,7]
Outside Diameter (in. [mm])	2.25 [57,2]
Collar Thread (in.)	2
Piston Collar Thread Length (in. [mm])	1.13 [28,6]
Base to Port (in. [mm])	1.69 [42,9]
Piston Rod Diameter (in. [mm])	1.50 [38,1]
Rod Protrusion (in. [mm])	1.06 [27,0]
Piston Rod Thread (in.)	1
Internal Base Thread (NPSM)	1
Bore Diameter (in. [mm])	1.69 [42,9]
Cylinder Capacity (tons)	10
Cylinder Effective Area (sq. in. [cm²]	2.24 [14,4]
Internal Pressure at Capacity (psi)	8948
Oil Capacity (cu. in. [cm³])	13.90 [228,0]
Stroke (in. [mm])	6.13 [155,6]
Tons at 10,000 psi [Metric Tons at 700 bar]	11.20 [10,2]
Weight (lbs. [kg])	10.30 [4,7]
