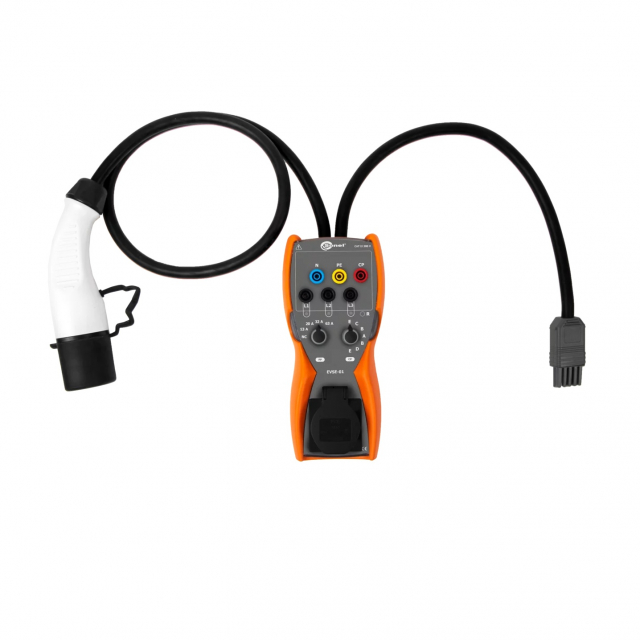

Sonel, WAADAEVSE01, EVSE-01 Adapter for testing vehicle charging stations
WAADAEVSE01 Includes Only:
Quick and full diagnostics of charging stations
EVSE-01 adapter allows to perform comprehensive measurements of electric vehicle charging stations - quickly and in accordance with applicable regulations. Simulating the charging cable (proximity pilot line - PP) and vehicle connection status (control pilot line - CP), it will bring the station into different operating states. This will enable measurements in the field of electric shock protection: ZS fault loop impedance, RISO insulation resistance and checking the paraMeters of RCD residual Current devices.
To facilitate diagnostics, one of the EVSE-01 sockets is provided with pulse width modulation signal (PWM).
Application
The EVSE-01 adapter enables measurements of AC electric vehicle charging stations with type 2 connector. Tests for 1-phase and 3-phase stations are- both with and without ventilation.
