Buy SEC America 636-10, 12V to 36V High Power Step Up DC-DC Converter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Wide Operating Temperature Range
Shock and vibration resistant
Internally encapsulated
Electronically protected against output overloads
Cool Operation
High Reliability
Long Life

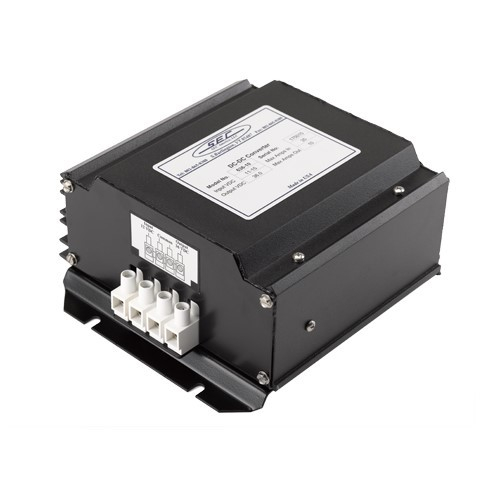

The Model 636-10 converter makes possible the installation of equipment designed to operate from 36 Volt power sources, into vehicles with 12 Volt electrical systems. The Model 636-10 design affords the user 360 Watts of output power in a rugged and compact module weighing five pounds.

Applications:

Industrial Process Control
Military Vehicles
Golf Carts
Forklifts
Buses
Loaders
Mining Vehicles
Boats
Logging Vehicles

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

System Battery Voltage	12 VDC
Nominal Input Voltage	12.75 VDC
Input Voltage Range	11 to 16 (+/- 0.5) VDC
Input Current At Max Continuous Power	31.5 A
Input Current At No Load	0.28 A when converter is in "ON" state
Input Current At No Load	< 0.002 A when converter is in "OFF" state
Dimensions, Inches	7.8 x 6.9 x 3.6
Weight (lb/kg)	7.0 / 3.25

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

System Battery Voltage	12 VDC
Nominal Input Voltage	12.75 VDC
Input Voltage Range	11 to 16 (+/- 0.5) VDC
Input Current At Max Continuous Power	31.5 A
Input Current At No Load	0.28 A when converter is in "ON" state
Input Current At No Load	< 0.002 A when converter is in "OFF" state
Dimensions, Inches	7.8 x 6.9 x 3.6
Weight (lb/kg)	7.0 / 3.25

Note

Note: Please read description carefully. Do not base your order on the picture presented.
