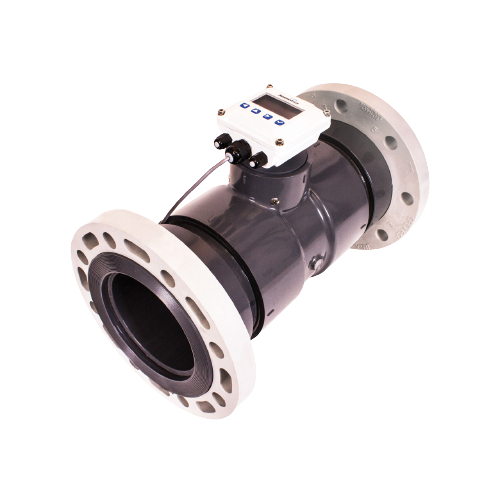

SeaMetrics, WTP103-600,PVC In-line Turbine Meter, FT430, 6"

This unique system 6" turbine meter uses just one moving part, a precision helical rotor. Rotation of the rotor is electronically detected and processed. The high-quality jewel bearings and shafts minimize friction while providing long life in non-lubricating fluids. The entire rotor assembly can be easily removed for field service without removing the meter from the pipe.

Features:

PVC-body turbine flow meter
In-line, individually-calibrated turbine meter maximizes accuracy
Turbine rotor is the only moving part, optimizing low-flow performance
Solid-state pickup
Electronic register can be meter-mounted or remote
Materials are chemical-resistant
Can be ordered with stub ends (standard) or flanges (optional)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Pipe Sizes	6"
Materials
Meter Body	PVC Schedule 80 fittings
Turbine Insert	PVC
Rotor	Kynar® (PVDF)
Shaft	Zirconia ceramic
Bearings	Sapphire journal, ruby endstone
Cable	#22 AWG, 2000' max
Flanges	Optional
Maximum Pressure	150 psi at 75° F) (10 bar at 24° C) (See chart)
Maximum Temperature	120° F (50° C) (See chart)
Accuracy	± 1% of full scale
Flow Range (GPM)
Minimum	12
Maximum	1200
Power	7-30 Vdc
Electronic Display	FT430
Pulse Out	0-160 pulse/sec. current sinking
Rate	5-digit autorange
Total	8-digit
Memory	Non-volatile
High/Low Alarm	Selectable on one output
Environmental	NEMA 4X, IP67

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Pipe Sizes	6"
Materials
Meter Body	PVC Schedule 80 fittings
Turbine Insert	PVC
Rotor	Kynar® (PVDF)
Shaft	Zirconia ceramic
Bearings	Sapphire journal, ruby endstone
Cable	#22 AWG, 2000' max
Flanges	Optional
Maximum Pressure	150 psi at 75° F) (10 bar at 24° C) (See chart)
Maximum Temperature	120° F (50° C) (See chart)
Accuracy	± 1% of full scale
Flow Range (GPM)
Minimum	12
Maximum	1200
Power	7-30 Vdc
Electronic Display	FT430
Pulse Out	0-160 pulse/sec. current sinking
Rate	5-digit autorange
Total	8-digit
Memory	Non-volatile
High/Low Alarm	Selectable on one output
Environmental	NEMA 4X, IP67

Note

Note: Please read description carefully. Do not base your order on the picture presented.
