Buy Schneider 26-1087723, Cuprite 2.8/50mm V48-Mount Lens

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Mount Type:: Mount Type: V48-mount

Features:

Optimized for 800 - 1800 nm
For sensor sizes up to 25.4mm
High-resolution optics
V48-Mount for flexible system integration

Applications:

Solar cell inspection
Food sorting
Agriculture observation
Geology analysis

This high-resolution SWIR lens with a 25.4mm image circle is designed for the 800 - 1800 nm spectral range. With its robust mechanical design and locking screws for focus and iris, it maintains its high optical imaging performance even in harsh environments. A special SWIR coating and internal lacquering reduce stray light, resulting in high-contrast images. The V48-Mount fits to the modular Unifoc system with its large variety of accessories, including focusing mounts, extension tubes, and camera adapters.

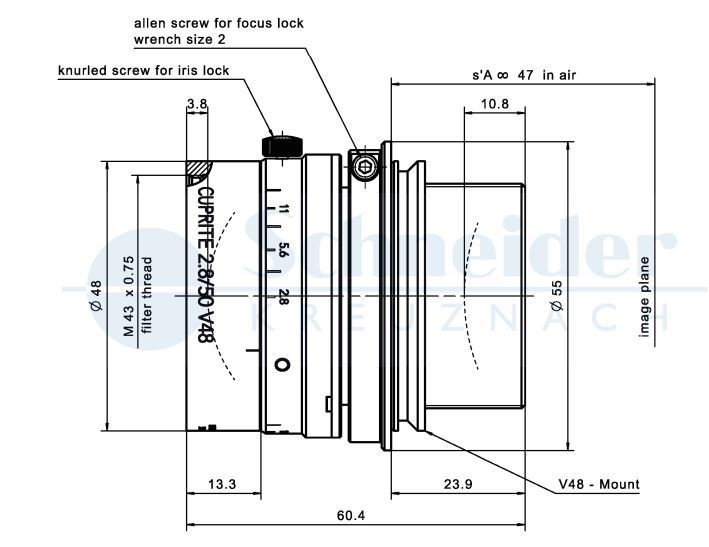

Dimensions:

For more information, please see Data Sheet

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Type	V48
Interface	V48-Mount
Focal Length [mm]	50
F/# Range	F/2.8 - F/16
Numerical Aperture [Object \| Image]	- \| 0.09
Maximum Sensor Size [mm]	25.4
Maximum Angle of View [°]	28
Recommendation Magnification Range	-0.2 - 0
Recommendation Working Distance Range [mm]	262 - ∞
Maximum Mechanical Focus Travel [mm]	27.5
Filter Thread [mm]	M43 x 0.75
Storage Temperature [°C]	-25 - +70
Net Weight [Standard] [g]	297
F'Eff [mm]	50.74
SF [mm]	-11.82
S'F' [mm]	33.97
HH' [mm]	-9.94
ß'P	1.25
SEP [mm]	28.71
S'AP [mm]	-29.56
Σd [mm]	45.75

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Type	V48
Interface	V48-Mount
Focal Length [mm]	50
F/# Range	F/2.8 - F/16
Numerical Aperture [Object \| Image]	- \| 0.09
Maximum Sensor Size [mm]	25.4
Maximum Angle of View [°]	28
Recommendation Magnification Range	-0.2 - 0
Recommendation Working Distance Range [mm]	262 - ∞
Maximum Mechanical Focus Travel [mm]	27.5
Filter Thread [mm]	M43 x 0.75
Storage Temperature [°C]	-25 - +70
Net Weight [Standard] [g]	297
F'Eff [mm]	50.74
SF [mm]	-11.82
S'F' [mm]	33.97
HH' [mm]	-9.94
ß'P	1.25
SEP [mm]	28.71
S'AP [mm]	-29.56
Σd [mm]	45.75
