Schneider 25-1068013 Sapphire 4.5/95mm 0.07X V70-Mount Lens

Focal Size (mm): 4.5/95
  • Brand Schneider
  • Part # 25-1068013
  • Model # Sapphire
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Focal Size (mm):
Focal Size (mm): 4.5/95

Schneider Optics, 25-1068013, Sapphire 4.5/95mm 0.07X V70-Mount Ultra-High Resolution Lens

Features:

  • Designed for 16k / 3.5 µm and 12k / 5 µm line scan sensors
  • Best azimuth marking
  • 400 nm to 1000 nm broadband AR-coating
  • Lockable distance and aperture settings

Applications:

  • FPD inspection
  • PCB inspection
  • High-resolution defect detection
  • AOI (Automated Optical Inspection)

This highspeed lens is optimized for 16k with 3.5 µm (57.3 mm) and 12k / 5µm (62.5 mm) line scan sensors but also can be used in many applications with area sensors up to 67mm diagonal. Optimized for a specific magnification of 0.07x the lens provides high performance in a compact and robust package. The V70-Mount interface makes it easy to install numerous mounts and allows the rotation of the lens into the best azimuth.

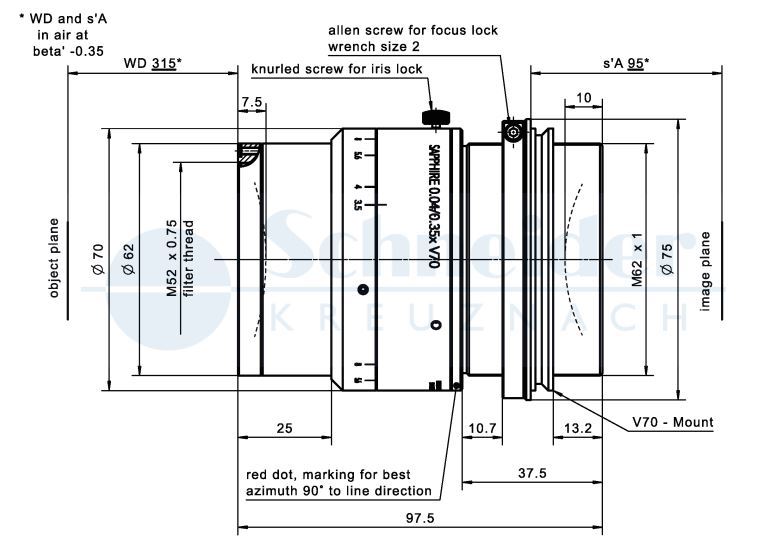

Dimensions:


For more information, please see image47 Data Sheet

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
TypeV70
InterfaceV70-Mount
Focal Length [mm]95
F/# RangeF/4.5 - F/8
Numerical Aperture [Object | Image]0.007 | 0.10
Maximum Sensor Size [mm]62.5
Maximum Angle of View [°]34
Recommendation Magnification Range-0.07 (-0.17 - -0.03)
Recommendation Working Distance Range [mm]601 - 3209
Minimum Working Distance without Extension Tubes [mm]23.9
Filter Thread [mm]M52 x 0.75
Storage Temperature [°C]-25 - +70
Net Weight [Standard] [g]735
F'Eff [mm]95.00
SF [mm]-50.28
S'F' [mm]53.16
HH' [mm]-1.92
ß'P1.00
SEP [mm]44.59
S'AP [mm]-41.96
Σd [mm]84.63
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
TypeV70
InterfaceV70-Mount
Focal Length [mm]95
F/# RangeF/4.5 - F/8
Numerical Aperture [Object | Image]0.007 | 0.10
Maximum Sensor Size [mm]62.5
Maximum Angle of View [°]34
Recommendation Magnification Range-0.07 (-0.17 - -0.03)
Recommendation Working Distance Range [mm]601 - 3209
Minimum Working Distance without Extension Tubes [mm]23.9
Filter Thread [mm]M52 x 0.75
Storage Temperature [°C]-25 - +70
Net Weight [Standard] [g]735
F'Eff [mm]95.00
SF [mm]-50.28
S'F' [mm]53.16
HH' [mm]-1.92
ß'P1.00
SEP [mm]44.59
S'AP [mm]-41.96
Σd [mm]84.63
